Spicer Differential Ring and Pinion - 10062926

Name: Spicer Differential Ring and Pinion - 10062926
SKU: 10062926
Availability: InStock

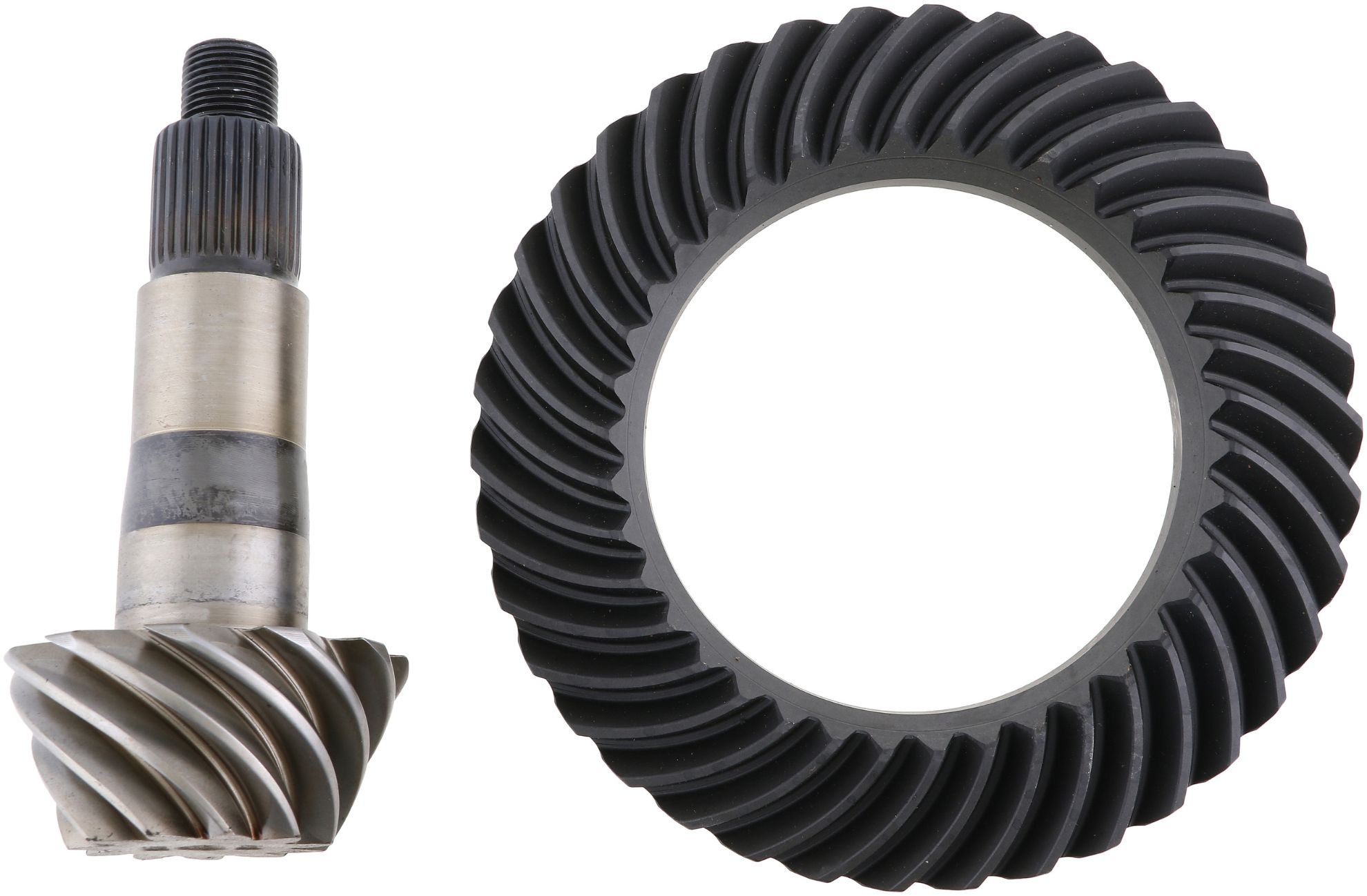

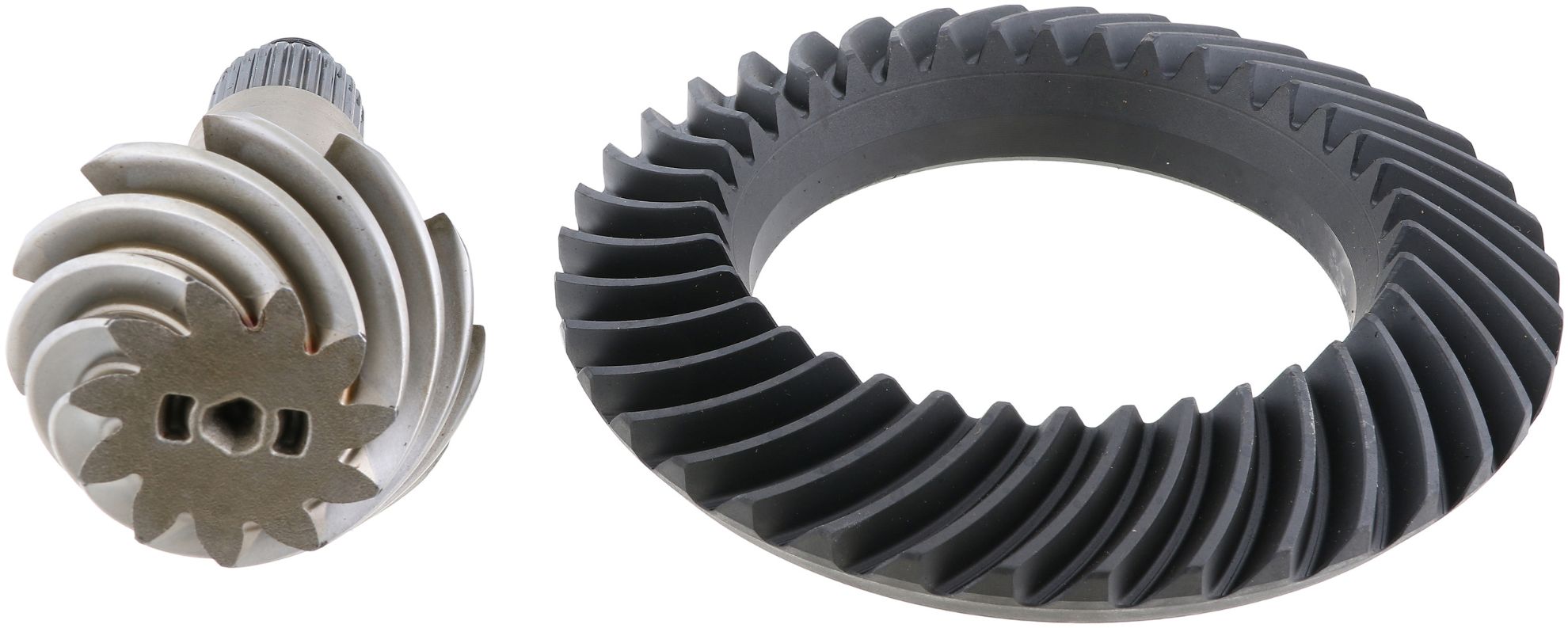

Differential Ring and Pinion - DANA 44 AdvanTEK - Rear 3.45 Ratio

Manufacturer: Spicer

Manufacturer part number: 10062926

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

For vehicles that require extreme performance, Spicer gearing offers strength that can not be beaten. Dana design, engineering, testing, and manufacturing processes all work together to ensure reliability that others simply cannot deliver. For when you push your vehicle to the extreme, Spicer gearing is proven to be the best in the business.

Products specifications

Attribute name	Attribute value
Axle Model	DANA 44 AdvanTEK
Gear Ratio	3.45
Ring Teeth Count	38
Pinion Nut Included	N
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Prop 65	Yes
Ring Gear Diameter (In.)	8.660
Carrier Breaks	3.07 And Up
Cover Bolt Quantity	12
Include Installation Kit	N
On Vehicle Location	Rear
Pinion Gear Tooth Quantity	11
Pinion Shaft Diameter	1.750
Pinion Spline Count	28
Ring Gear Bolt Qty	10
Ring Gear Bolt Thread In.	M12 X 1.25
Ring Gear Included	Y
Pinion Gear Included	Y
Shims Included	N
New Or Remanufactured	New
Axle Type	M220
Ring Gear Rotation	Standard
Country of Origin	US
Condition	New
