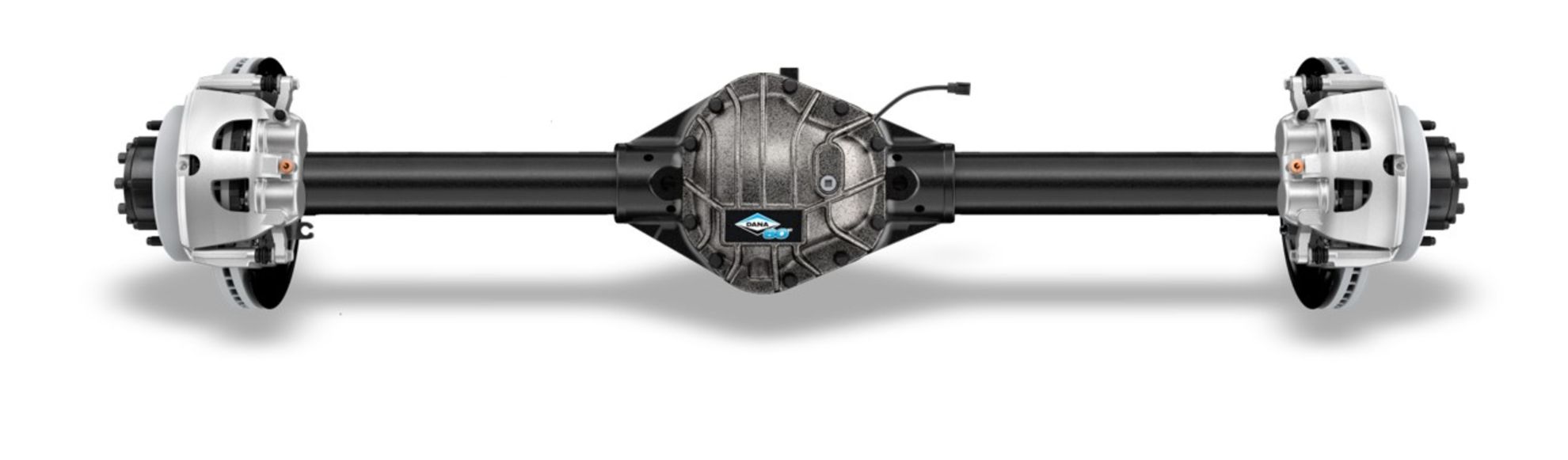

Spicer Drive Axle Assembly - 10144196

Name: Spicer Drive Axle Assembly - 10144196
SKU: 10144196
Availability: InStock

Ultimate Dana 60 Crate Axle (Bracketless) - Rear 4.88 ARB

Manufacturer: Spicer

Manufacturer part number: 10144196

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

All of the features; none of the brackets. The new Ultimate Dana 60 Bracketless Crate Axles allow for installation in virtually any application. The axles include all the features of the Ultimate Dana 60, from Spicer performance ring and pinion gears and heavy-duty upgraded brakes, to the Dana-exclusive high clearance Dana 60 front housing. Get the performance and dependability of Ultimate Dana 60 for your custom build today!

Products specifications

Attribute name	Attribute value
Axle Model	Dana 60
Gear Ratio	4.88
Mounting Bracket Included	N
Prop 65	NO
Brakes Included	Y
Drive Shaft U Joint Series	1350
End Yoke Style	Half Round
Inner Axle Shaft Spline Count	35
Outer Axle Spline Count	35
Traction Device	ARB Air Locker
Wheel Bolt Pattern	8 X 6.5
Hub Surface to Hub Surface(IN)	69.000
Vehicle Location	Rear
Axle Shaft Material	Chromoly
Axle Shaft U Joint Series	SPL70
Country of Origin	US
Condition	New
