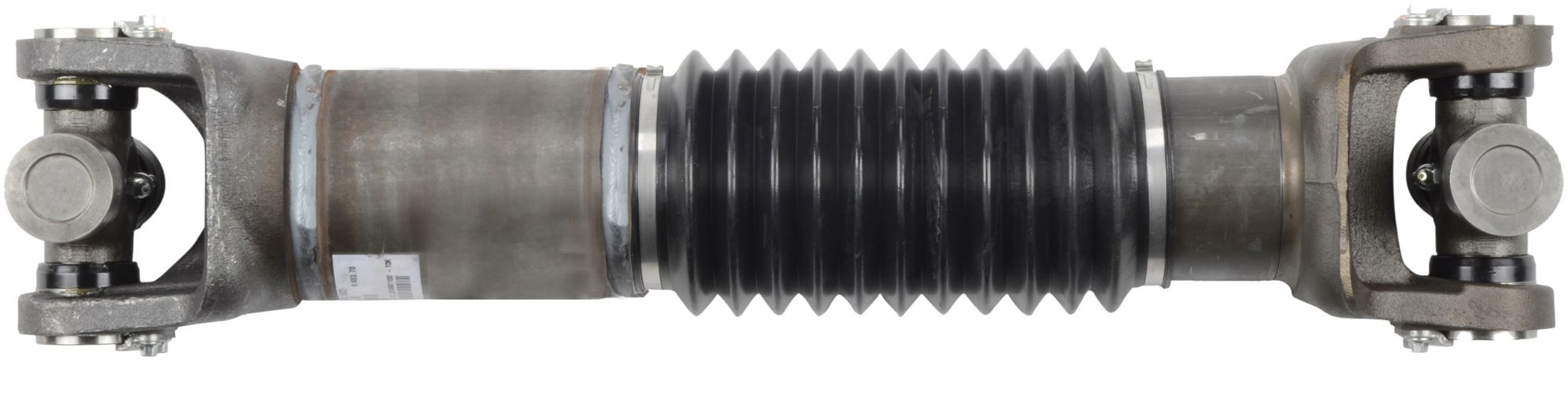

Spicer Drive Shaft - 250DS22002F-290M

Name: Spicer Drive Shaft - 250DS22002F-290M
SKU: 250DS22002F-290M
Availability: InStock

Drive Shaft (Steel)

Manufacturer: Spicer

Manufacturer part number: 250DS22002F-290M

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Series	SPL250
Tube Length (In)	11.4173
Tube Length (Mm)	290.0000
Tube Size (IN)	5.1181 x 0.1968
Tube Size (Mm)	130.0000 x 5.0000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Welded
Shaft Material	Steel
Max Slip (IN)	4.3307
Max Slip (MM)	110.0000
Notes	Driveshaft
CL Yoke To CL Yoke (IN) - COLL	26.4173
CL Yoke To CL Yoke (MM) - COLL	671.0000
Mid Slip (MM)	55.0000
Mid Slip (IN)	2.1654
FF(Flange Face) To FF (MM)-COLL	853.0000
End 1 Type SJ Side	250-2-15
CV Joints Included	No
End 2 TJ Side	250-2-15
CL Yoke To End Of Spline Sleeve (IN)-COLL	28.5827
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	33.5827
CL Yoke To Flange Face (MM)-COLL	762.0000
Phased (Yes/No)	No
CL Yoke To Flange Face (MM)-INST	817.0000
FF(Flange Face) To FF (IN)-INST	35.7480
FF(Flange Face) To FF (MM)-INST	908.0000
1/2 Max Slip (IN)	2.1654
CL Yoke To Flange Fac e(IN)-COLL	30.0000
Country of Origin	US
Condition	New
