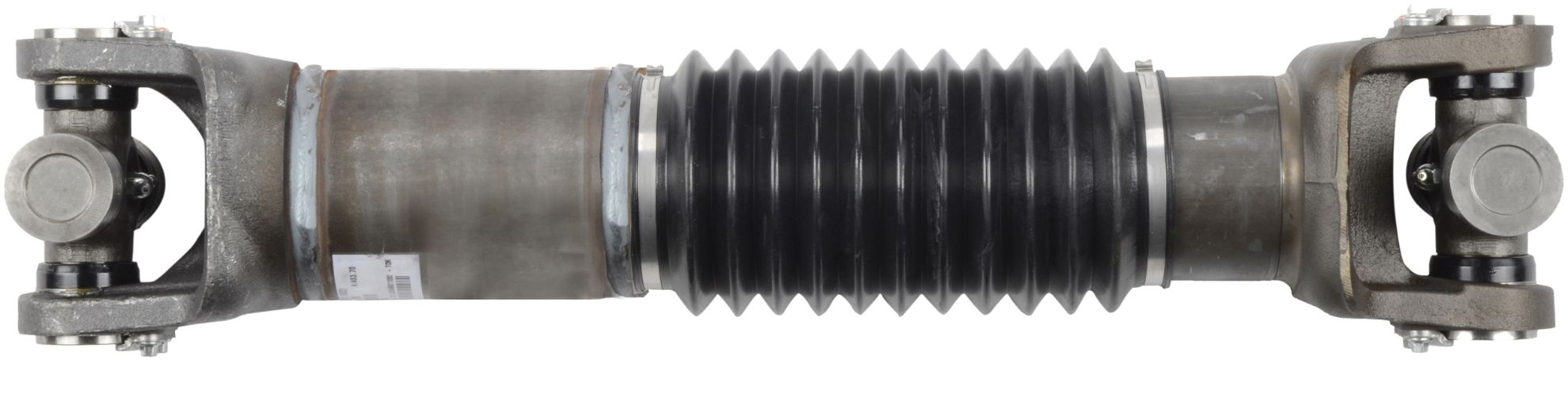

Spicer Drive Shaft - 250DS82001F-820M

Name: Spicer Drive Shaft - 250DS82001F-820M
SKU: 250DS82001F-820M
Availability: InStock

Drive Shaft (Steel) - SPL250 Lite

Manufacturer: Spicer

Manufacturer part number: 250DS82001F-820M

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ATTENTION – SPL LITE SHAFT. IF EITHER THE MAIN DRIVE SHAFT OR COUPLING SHAFT REQUIRES REPLACEMENT, IT MUST BE ORDERED AS A COMPLETE SET THAT INCLUDES BOTH SHAFTS IN THE SYSTEM. PLEASE SEE TECHNICAL BULLETIN JOI-TEC-083 FOR MORE INFORMATION. Demand Genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL250
Shaft Material	Steel
Max Slip (IN)	4.3307
Max Slip (MM)	110.0000
CL Yoke To CL Yoke (IN) - COLL	40.4724
CL Yoke To CL Yoke (MM) - COLL	1028.0000
Mid Slip (MM)	55.0000
Mid Slip (IN)	2.1654
CL Yoke To End Of Yoke Shaft (MM)-COLL	1376.0000
CL Yoke To End Of Yoke Shaft (IN)-COLL	54.1732
Slip Assembly	No
Phased (Yes/No)	No
1/2 Max Slip (IN)	2.1654
1/2 Max Slip (MM)	55.0000
Prop 65	NO
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Driveshaft
CV Joints Included	No
End 2 TJ Side	250-2-15
CL Yoke To Flange Face (MM)-COLL	1119.0000
CL Yoke To Flange Face (MM)-INST	1174.0000
CL Yoke To Flange Fac e(IN)-COLL	44.0551
Tube Length (In)	32.2835
Tube Length (Mm)	820.0000
Tube Size (IN)	4.6692 x 0.2047
Tube Size (Mm)	118.6000 x 5.2000
Country of Origin	US
Condition	New
