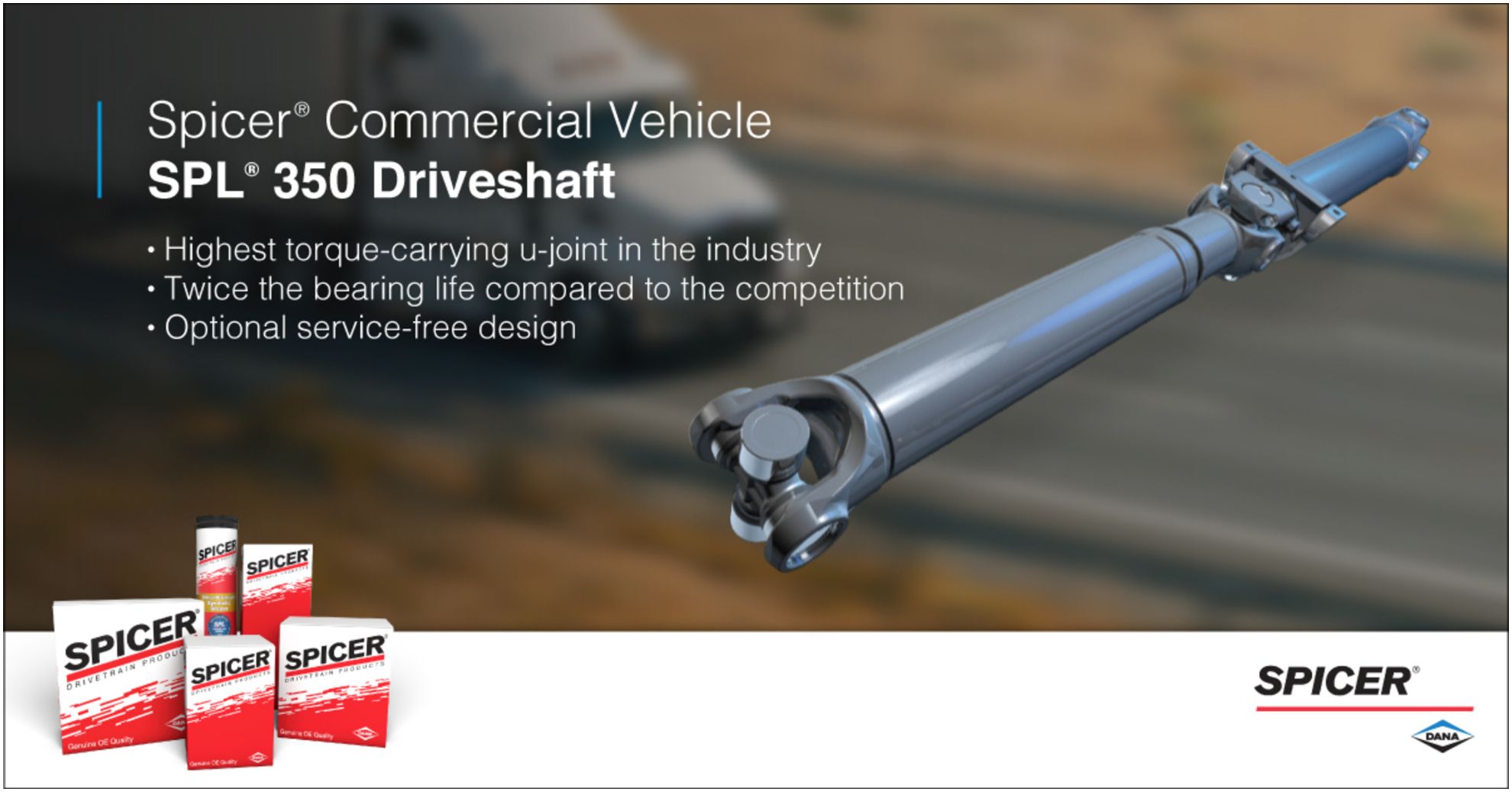

Spicer Drive Shaft - 350DS55004-1300M

Name: Spicer Drive Shaft - 350DS55004-1300M
SKU: 350DS55004-1300M
Availability: InStock

Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 350DS55004-1300M

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL350
Shaft Material	Steel
Max Slip (IN)	4.3307
Max Slip (MM)	110.0000
CL Yoke To CL Yoke (MM) - COLL	1695.0000
Mid Slip (MM)	55.0000
Mid Slip (IN)	2.1654
Slip Assembly	No
Phased (Yes/No)	No
1/2 Max Slip (IN)	2.1654
1/2 Max Slip (MM)	55.0000
Prop 65	NO
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Driveshaft
CL Yoke To CL Yoke (IN) - COLL	66.7323
CV Joints Included	No
Tube Length (In)	51.1811
Tube Length (Mm)	1300.0000
Tube Size (IN)	4.7300 x 0.2360
Tube Size (Mm)	120.2000 x 6.0000
Country of Origin	US
Condition	New
