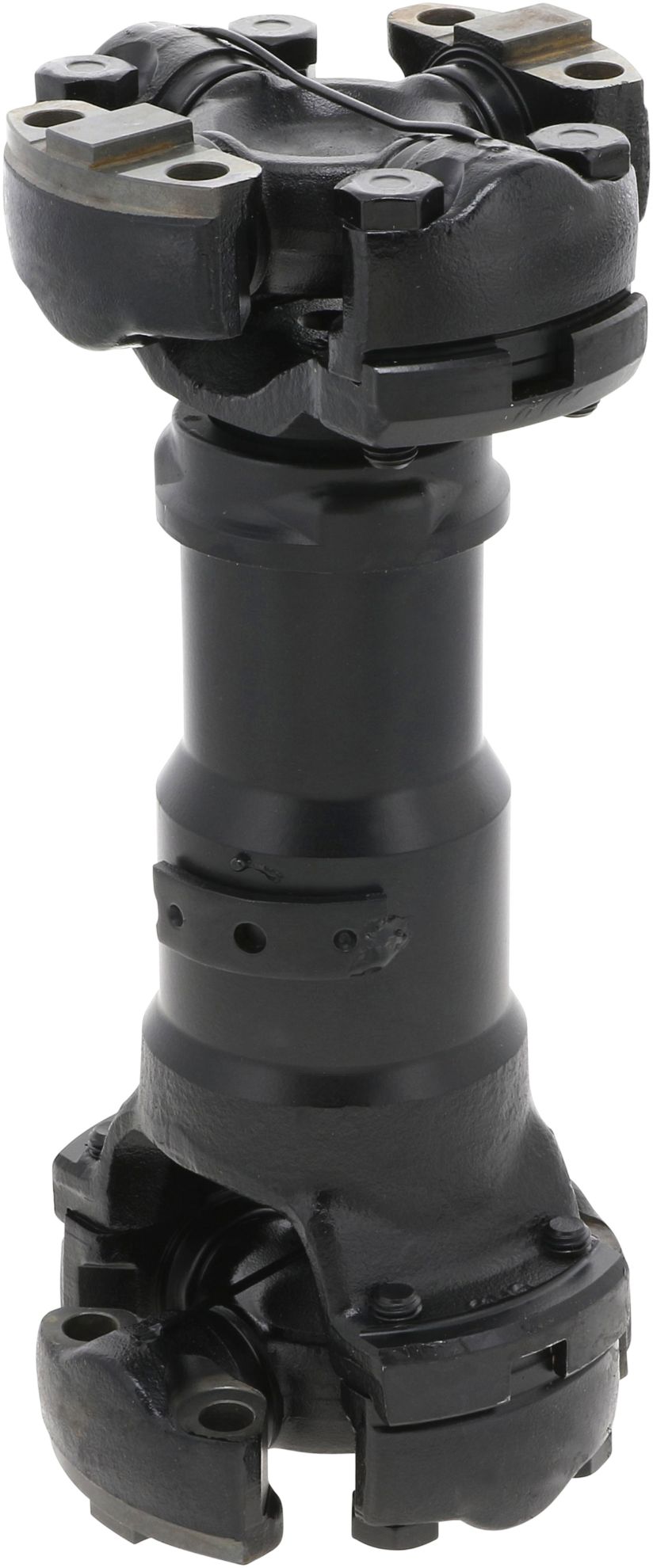

Spicer Drive Shaft - 607860031

Name: Spicer Drive Shaft - 607860031
SKU: 607860031
Availability: InStock

DRIVE SHAFT

Manufacturer: Spicer

Manufacturer part number: 607860031

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Series	115M50
Prop 65	Yes
Shaft Material	Steel
Max Slip (IN)	1.7717
Max Slip (MM)	45.0000
CL Yoke To CL Yoke (MM) - COLL	236.0000
Mid Slip (MM)	22.5000
Mid Slip (IN)	0.8858
FF(Flange Face) To FF (MM)-COLL	271.0000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	10.6693
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	11.5551
FF(Flange Face) To FF (MM)-INST	293.5000
1/2 Max Slip (IN)	0.8858
1/2 Max Slip (MM)	22.5000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	9.2913
CV Joints Included	No
CL Yoke To Flange Face (MM)-COLL	253.5000
CL Yoke To Flange Face (MM)-INST	276.0000
CL Yoke To Flange Fac e(IN)-COLL	9.9803
Country of Origin	IT
Condition	New
