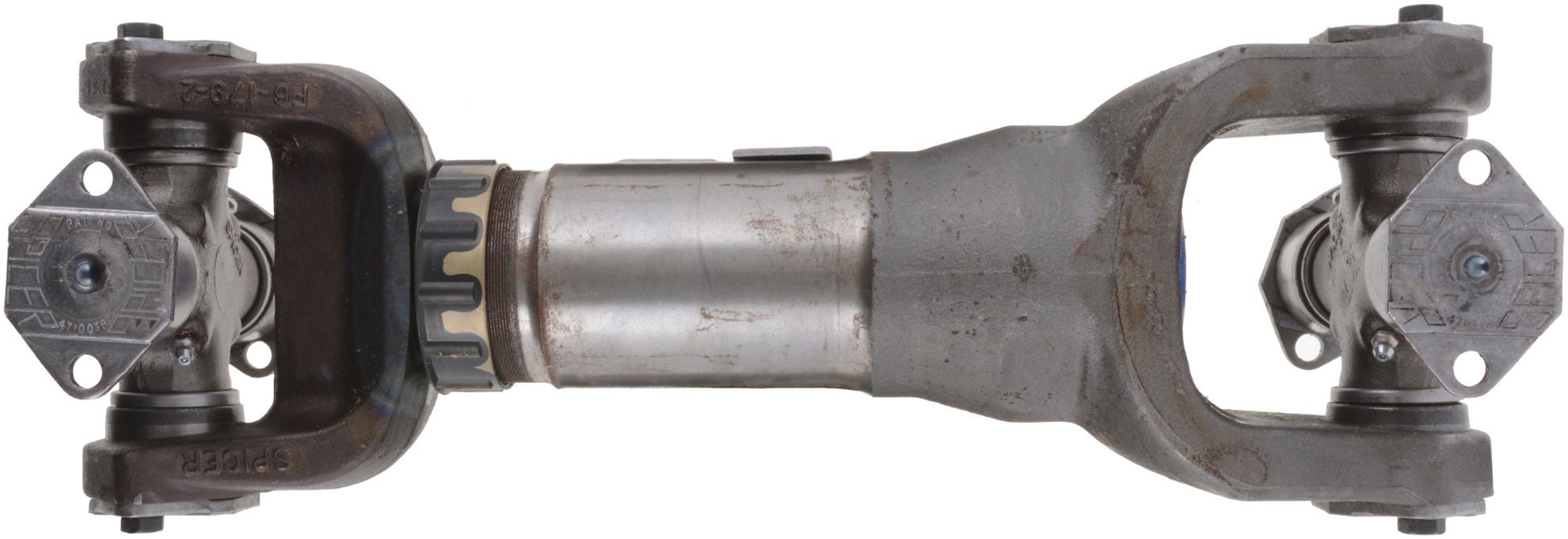

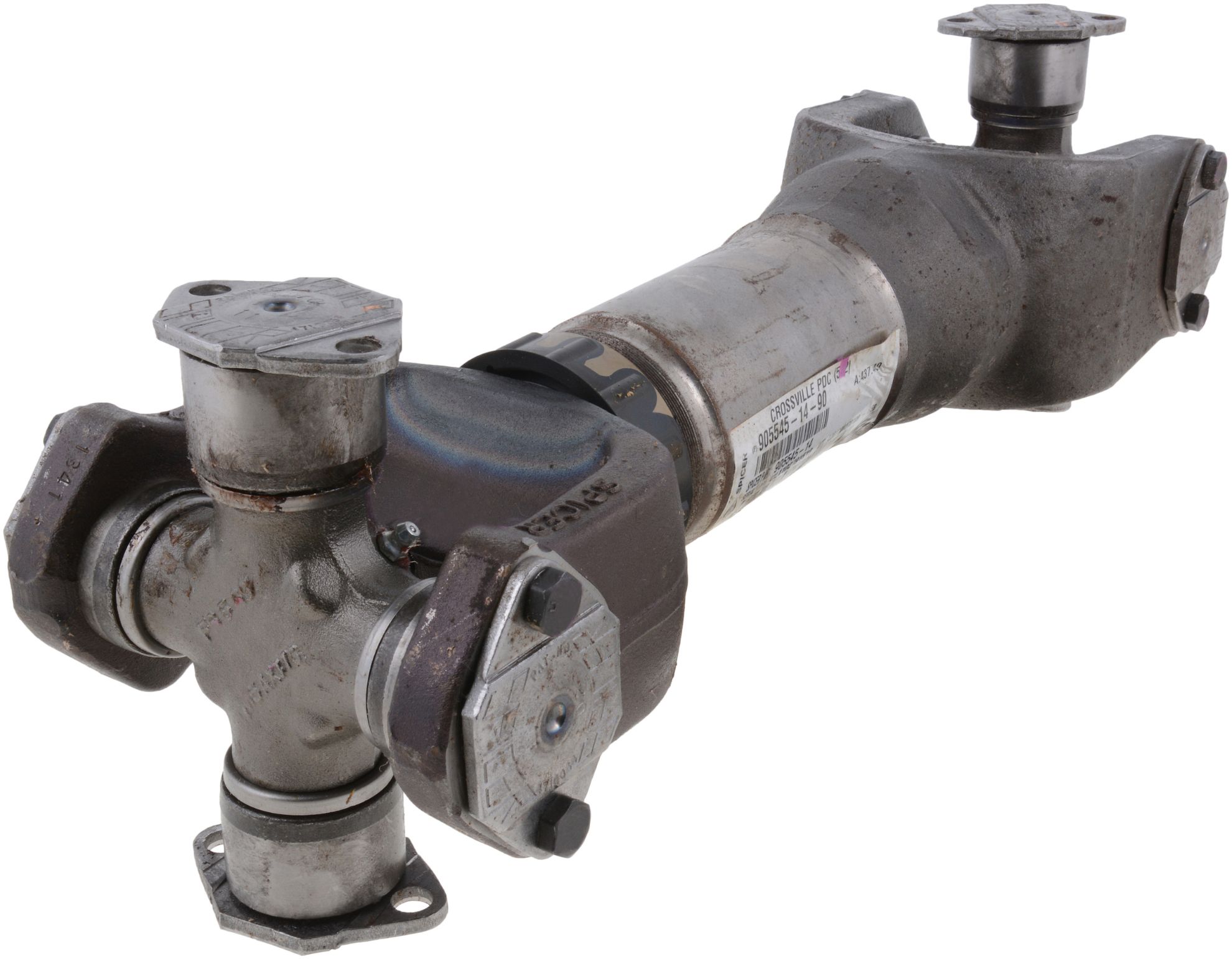

Spicer Drive Shaft - 906550-5

Name: Spicer Drive Shaft - 906550-5
SKU: 906550-5
Availability: OutOfStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 906550-5

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1880
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Prop 65	Yes
Shaft Material	Steel
Max Slip (IN)	1.0000
Max Slip (MM)	25.4000
CL Yoke To CL Yoke (MM) - COLL	218.9000
Mid Slip (MM)	12.7000
Mid Slip (IN)	0.5000
FF(Flange Face) To FF (MM)-COLL	396.7000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	15.6181
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	16.1181
FF(Flange Face) To FF (MM)-INST	409.4000
1/2 Max Slip (IN)	0.5000
1/2 Max Slip (MM)	12.7000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	8.6181
End 1 Type SJ Side	8-2-109
CV Joints Included	No
End 2 TJ Side	8-2-109
CL Yoke To Flange Face (MM)-COLL	307.8000
CL Yoke To Flange Face (MM)-INST	320.5000
CL Yoke To Flange Fac e(IN)-COLL	12.1181
Country of Origin	US
Condition	New
