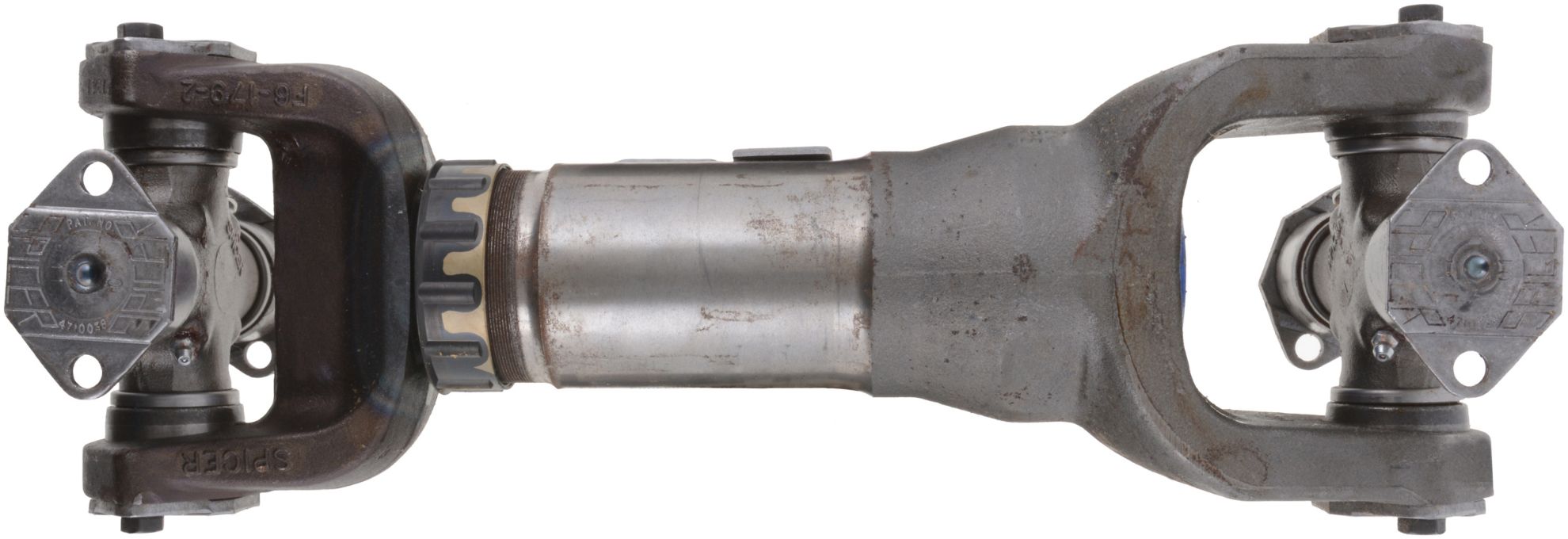

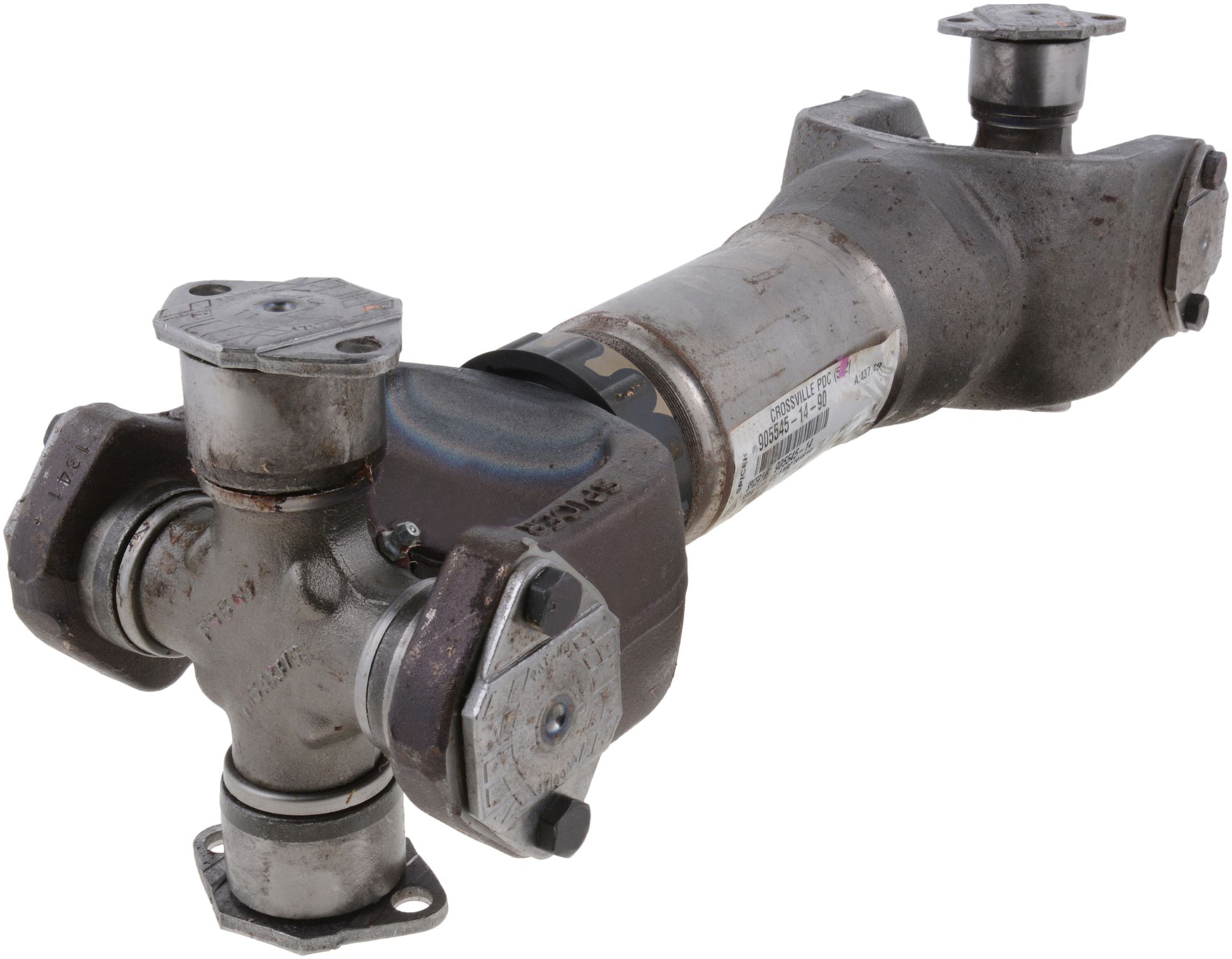

Spicer Drive Shaft - 912950-1

Name: Spicer Drive Shaft - 912950-1
SKU: 912950-1
Availability: InStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 912950-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1810
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	3.3819
Max Slip (MM)	85.9000
CL Yoke To CL Yoke (MM) - COLL	330.4000
Mid Slip (MM)	42.9500
Mid Slip (IN)	1.6909
FF(Flange Face) To FF (MM)-COLL	462.0000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	18.1890
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	19.8799
FF(Flange Face) To FF (MM)-INST	504.9500
1/2 Max Slip (IN)	1.6909
1/2 Max Slip (MM)	42.9500
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	13.0079
End 1 Type SJ Side	6.5-2-359
CV Joints Included	No
End 2 TJ Side	6.5-2-359
CL Yoke To Flange Face (MM)-COLL	396.2000
CL Yoke To Flange Face (MM)-INST	439.1500
CL Yoke To Flange Fac e(IN)-COLL	15.5984
Country of Origin	US
Condition	New
