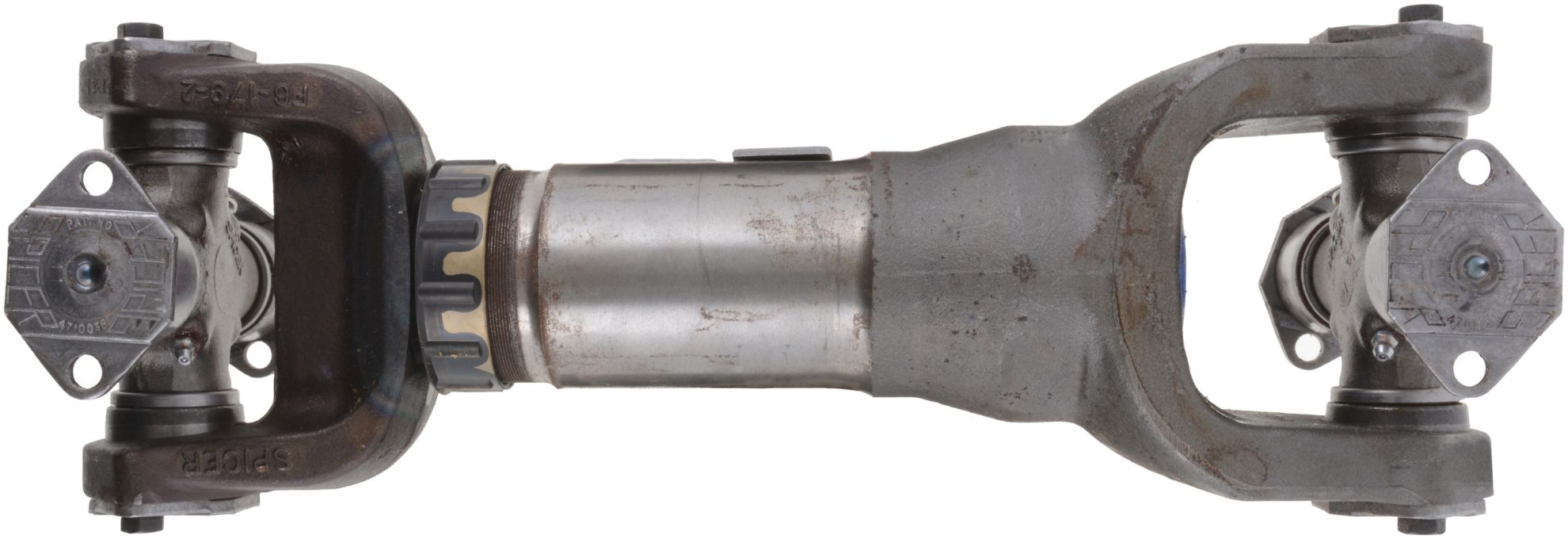

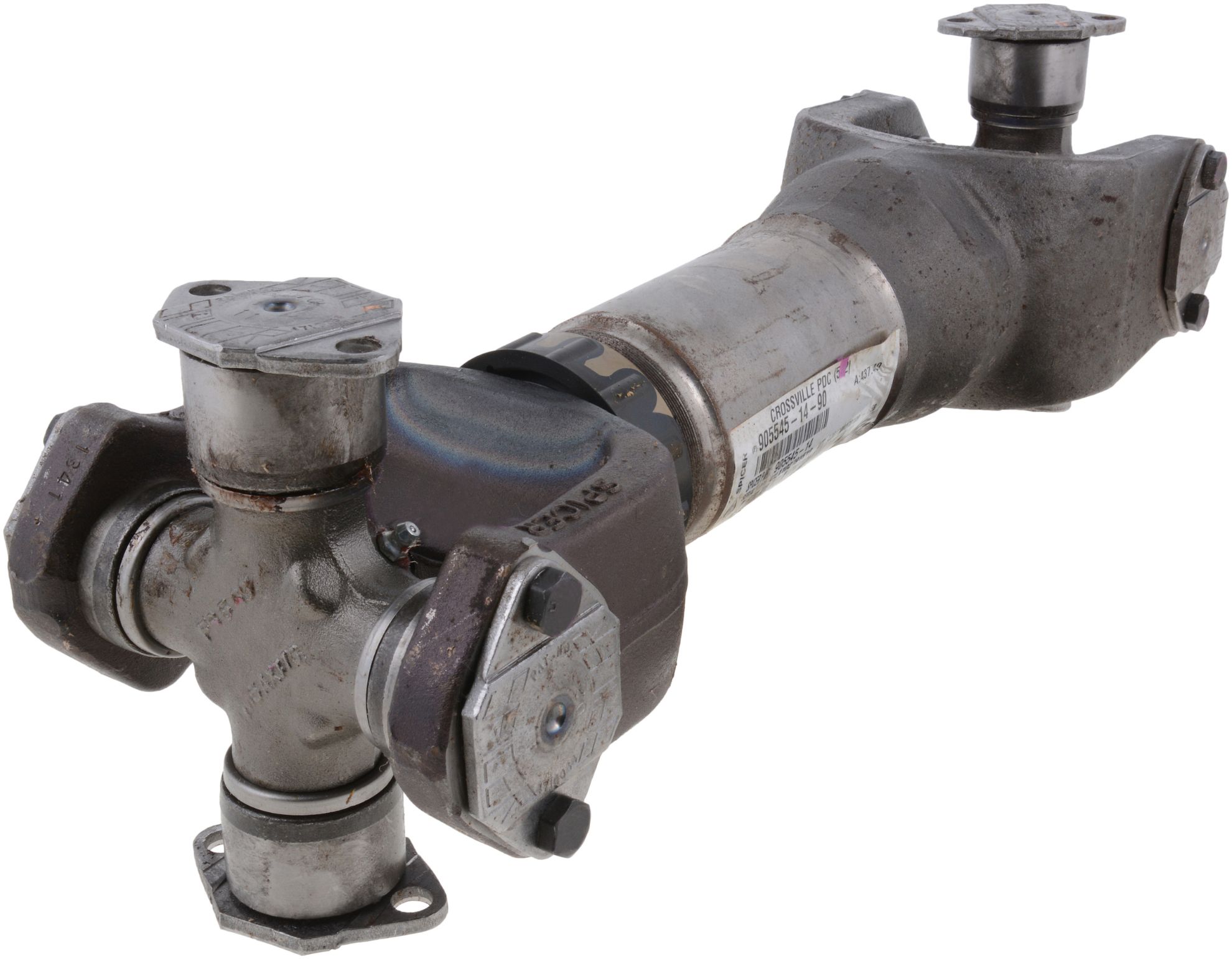

Spicer Drive Shaft - 916344-5

Name: Spicer Drive Shaft - 916344-5
SKU: 916344-5
Availability: InStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 916344-5

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1710
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	3.8819
Max Slip (MM)	98.6000
CL Yoke To CL Yoke (MM) - COLL	342.9000
Mid Slip (MM)	49.3000
Mid Slip (IN)	1.9409
Slip Assembly	No
Phased (Yes/No)	No
1/2 Max Slip (IN)	1.9409
1/2 Max Slip (MM)	49.3000
CL Yoke To Flange Face (MM)-COLL	419.1000
CL Yoke To Flange Face (MM)-INST	468.4000
CL Yoke To Flange Fac e(IN)-COLL	16.5000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	13.5000
CV Joints Included	No
End 2 TJ Side	6 - 2 - 749
Country of Origin	US
Condition	New
