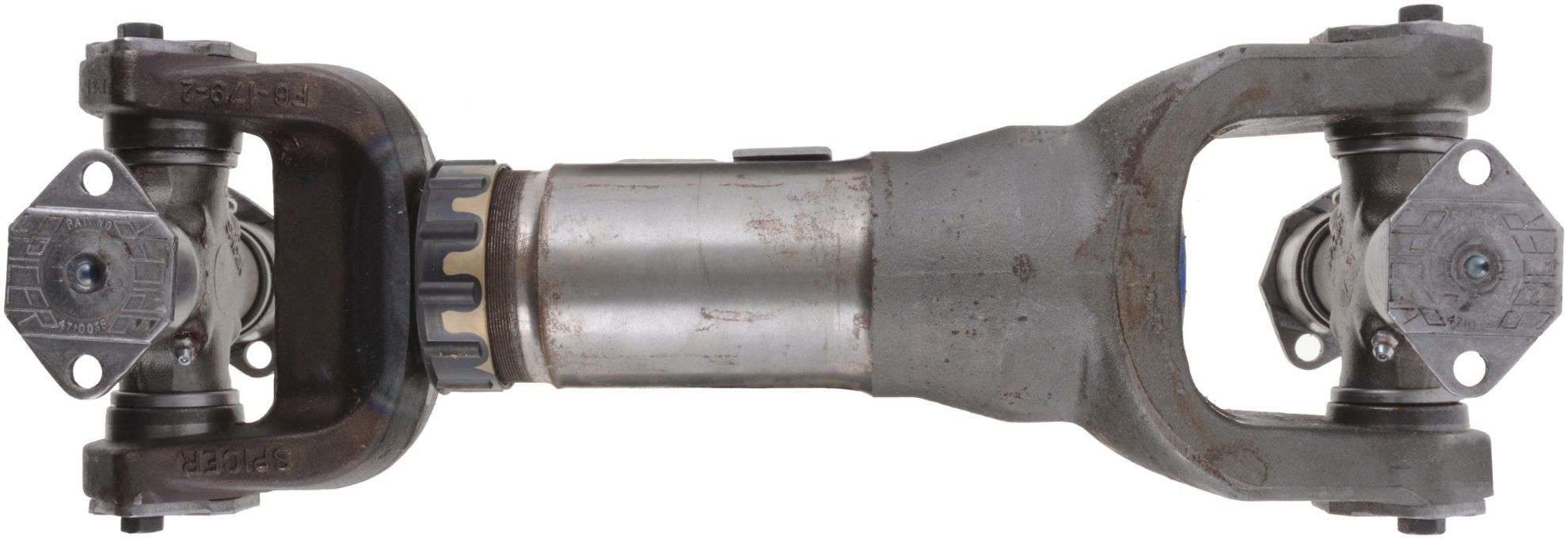

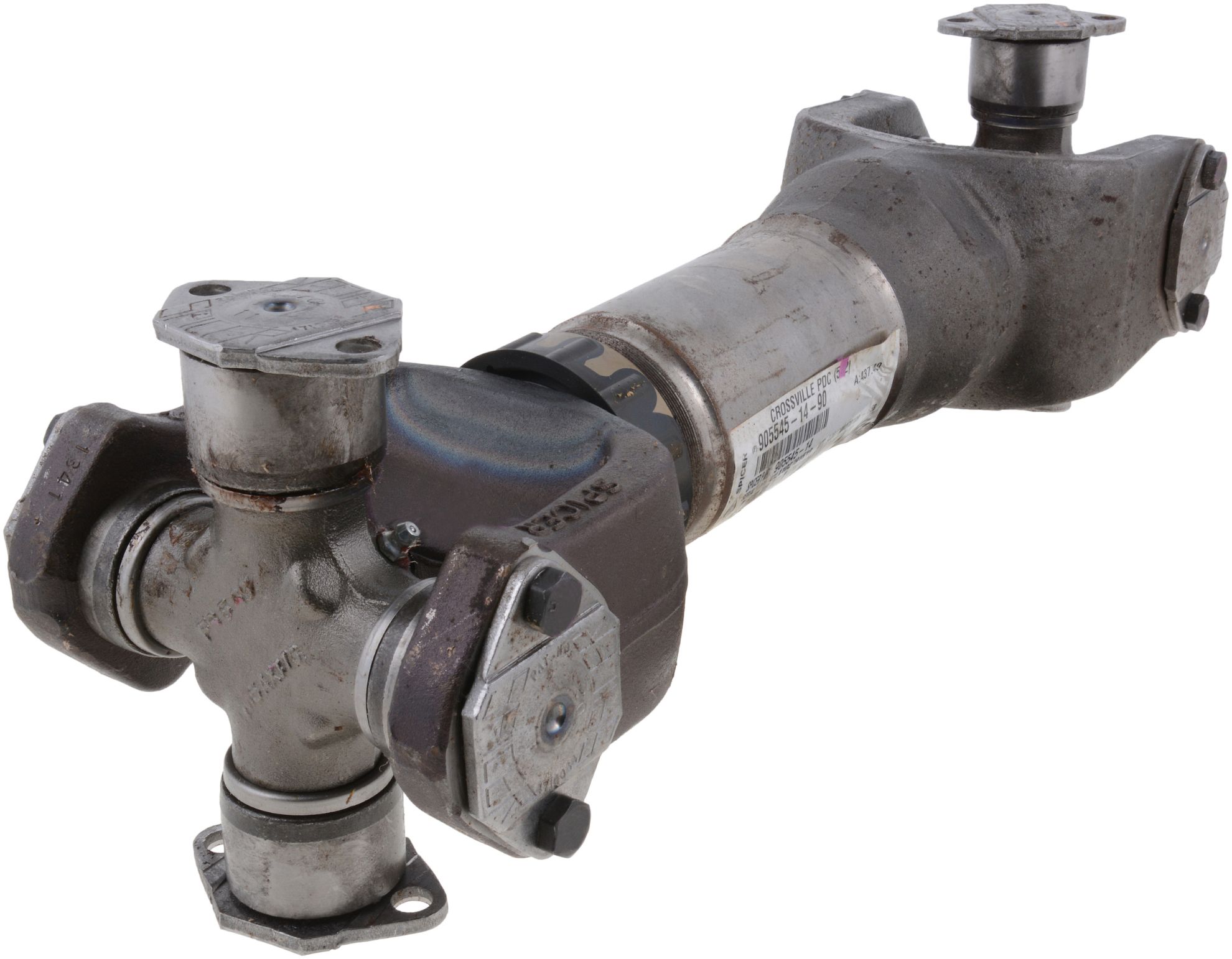

Spicer Drive Shaft - 917579-1

Name: Spicer Drive Shaft - 917579-1
SKU: 917579-1
Availability: InStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 917579-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	Yes
Series	1550
Mid Slip (IN)	0.7500
FF(Flange Face) To FF (MM)-COLL	309.6000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	12.1890
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	12.9390
FF(Flange Face) To FF (MM)-INST	328.6500
1/2 Max Slip (IN)	0.7500
1/2 Max Slip (MM)	19.0500
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	8.1890
End 1 Type SJ Side	4-2-669
CV Joints Included	No
End 2 TJ Side	4-2-669
CL Yoke To Flange Face (MM)-COLL	258.8000
CL Yoke To Flange Face (MM)-INST	277.8500
CL Yoke To Flange Fac e(IN)-COLL	10.1890
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Shaft Material	Steel
Max Slip (IN)	1.5000
Max Slip (MM)	38.1000
CL Yoke To CL Yoke (MM) - COLL	208.0000
Mid Slip (MM)	19.0500
Country of Origin	US
Condition	New
