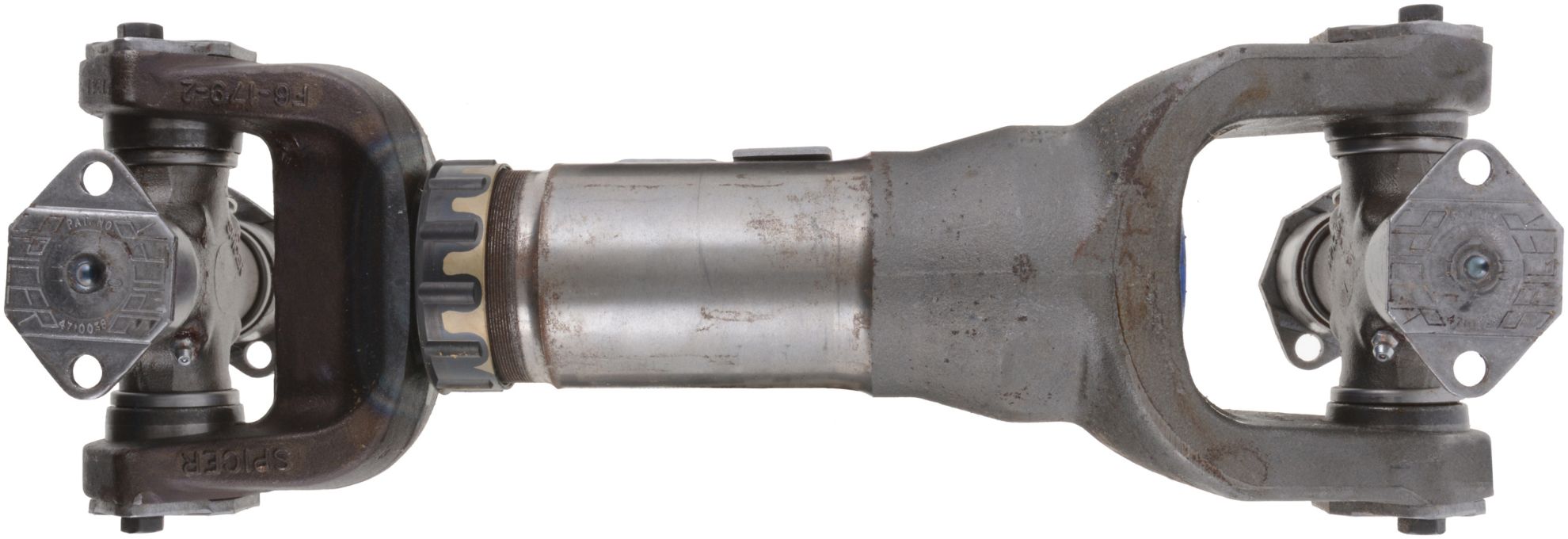

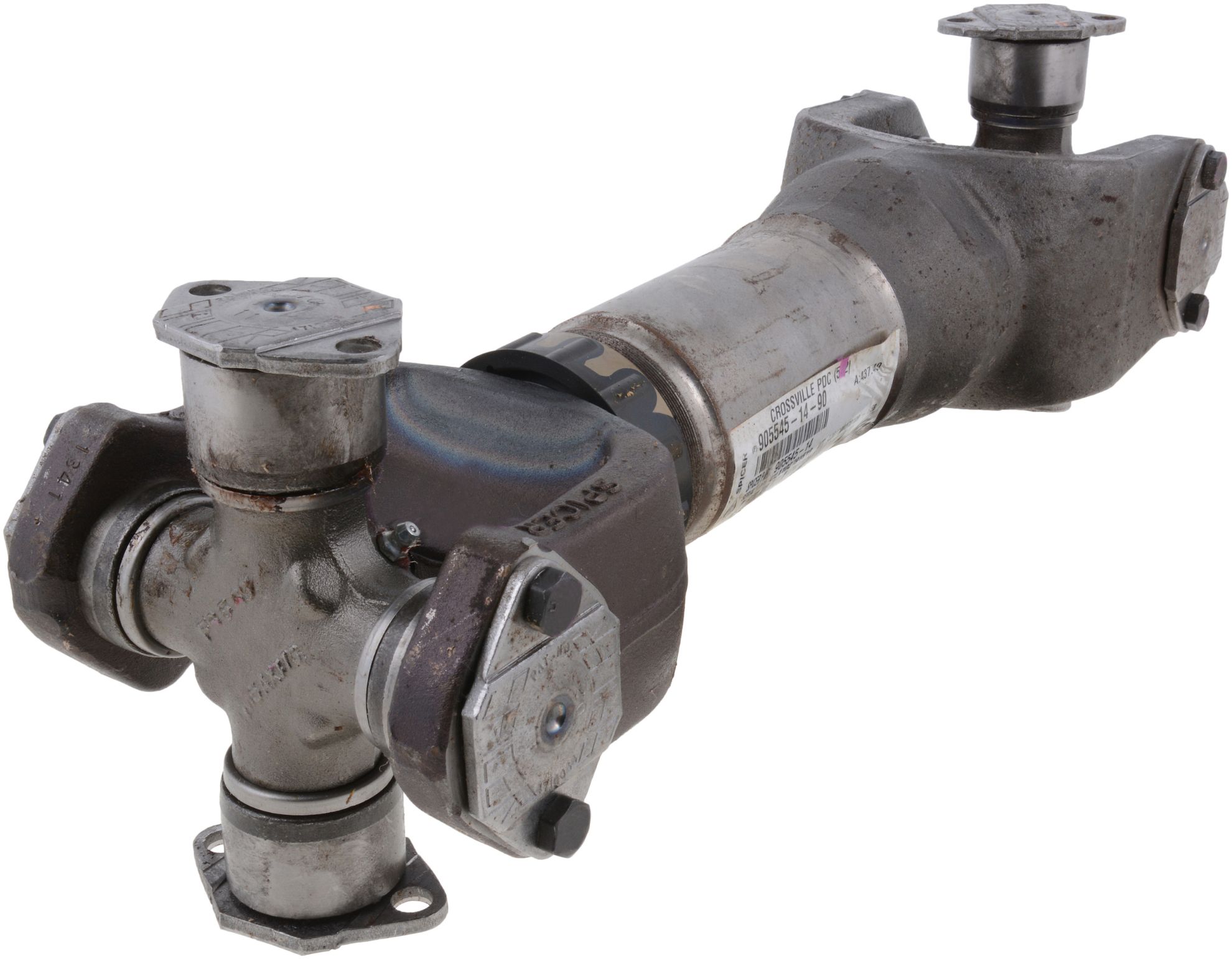

Spicer Drive Shaft - 917964-1

Name: Spicer Drive Shaft - 917964-1
SKU: 917964-1
Availability: InStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 917964-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1710
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	2.2520
Max Slip (MM)	57.2000
CL Yoke To CL Yoke (MM) - COLL	314.5000
Mid Slip (MM)	28.6000
Mid Slip (IN)	1.1260
FF(Flange Face) To FF (MM)-COLL	466.9000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	18.3819
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	19.5079
FF(Flange Face) To FF (MM)-INST	495.5000
1/2 Max Slip (IN)	1.1260
1/2 Max Slip (MM)	28.6000
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	12.3819
End 1 Type SJ Side	6-2-739
CV Joints Included	No
End 2 TJ Side	6-2-739
CL Yoke To Flange Face (MM)-COLL	390.7000
CL Yoke To Flange Face (MM)-INST	419.3000
CL Yoke To Flange Fac e(IN)-COLL	15.3819
Country of Origin	US
Condition	New
