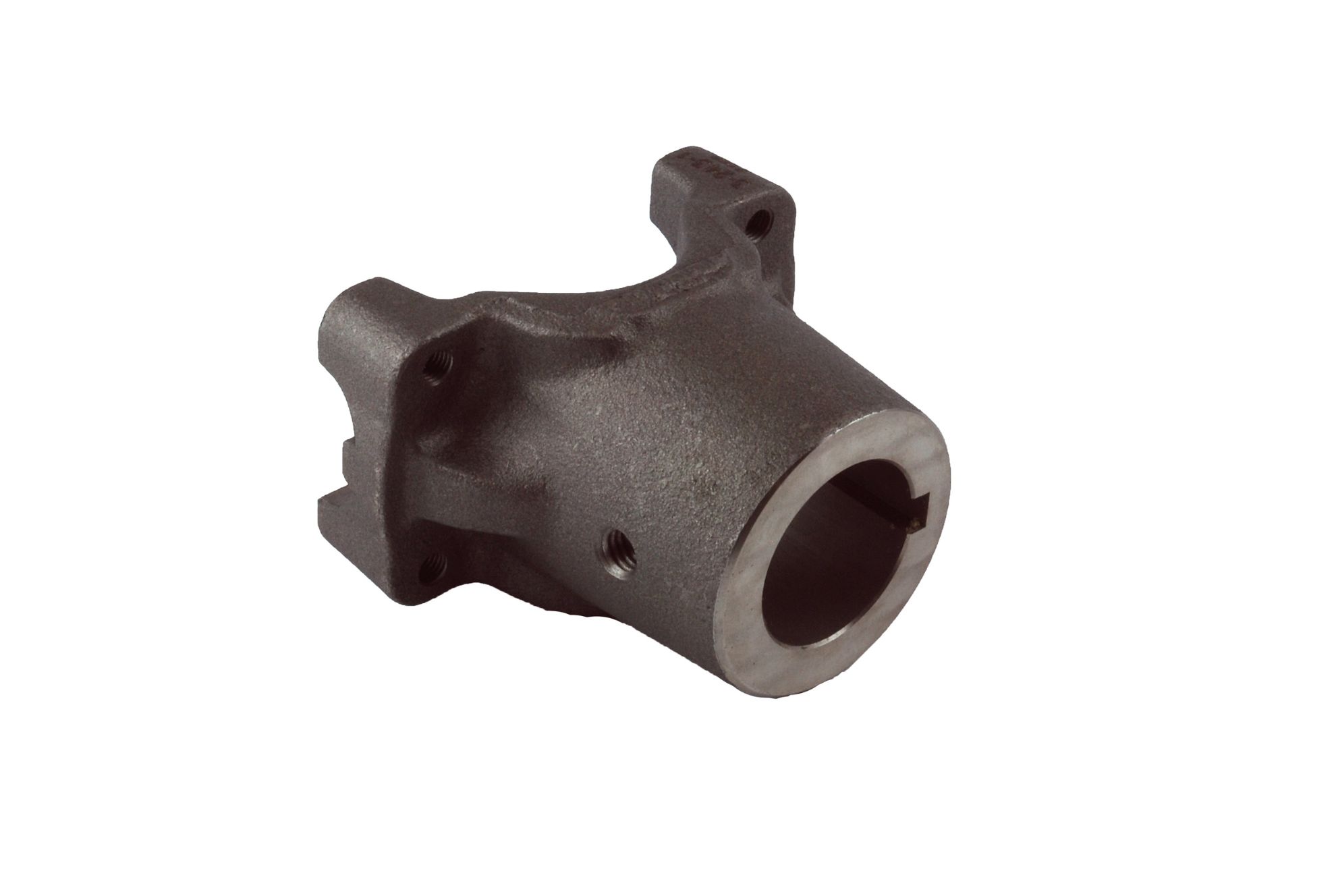

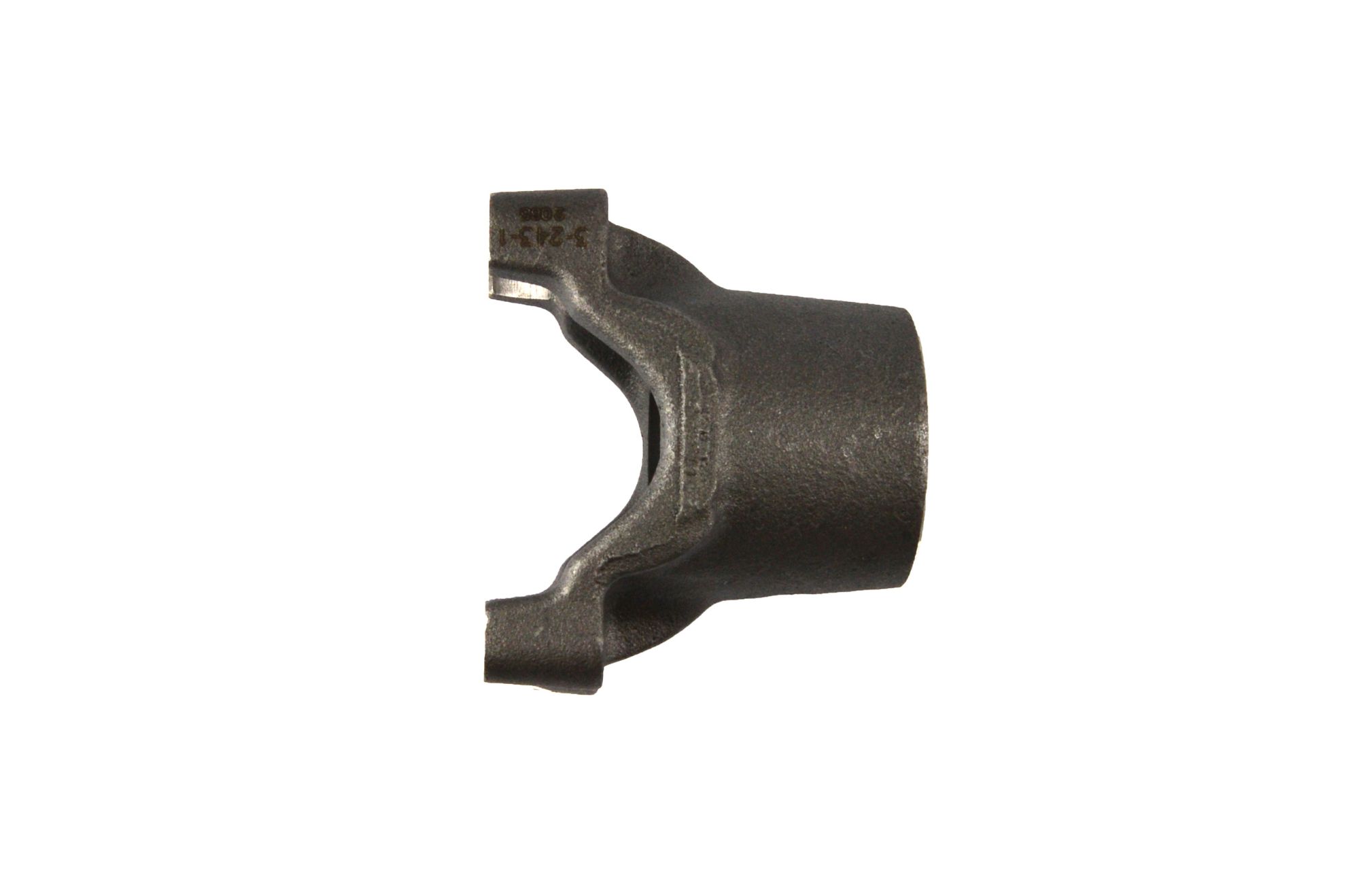

Spicer Drive Shaft End Yoke - 3-4-243-1

Name: Spicer Drive Shaft End Yoke - 3-4-243-1
SKU: 3-4-243-1
Availability: InStock

DRIVE SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 3-4-243-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Type	Straight Round Hole
Involute Spline	N
Outside Yoke Dimension In.(E)	3.953
Yoke Bearing Dimension (In) D	1.250
Yoke Style	BS
C/L To End Hub S	3.500
Series	1350
Material	Steel
Prop 65	NO
Keyway Location W	12
Sae Keyway Width (In) X	0.313
Set Screw Hole Diameter (In)	0.375
Hole Diameter - Max	1.5005
Hole Diameter - Min	1.4995
Keyway Width - Max	0.3155
Keyway Width - Min	0.3135
Country of Origin	US
Condition	New
