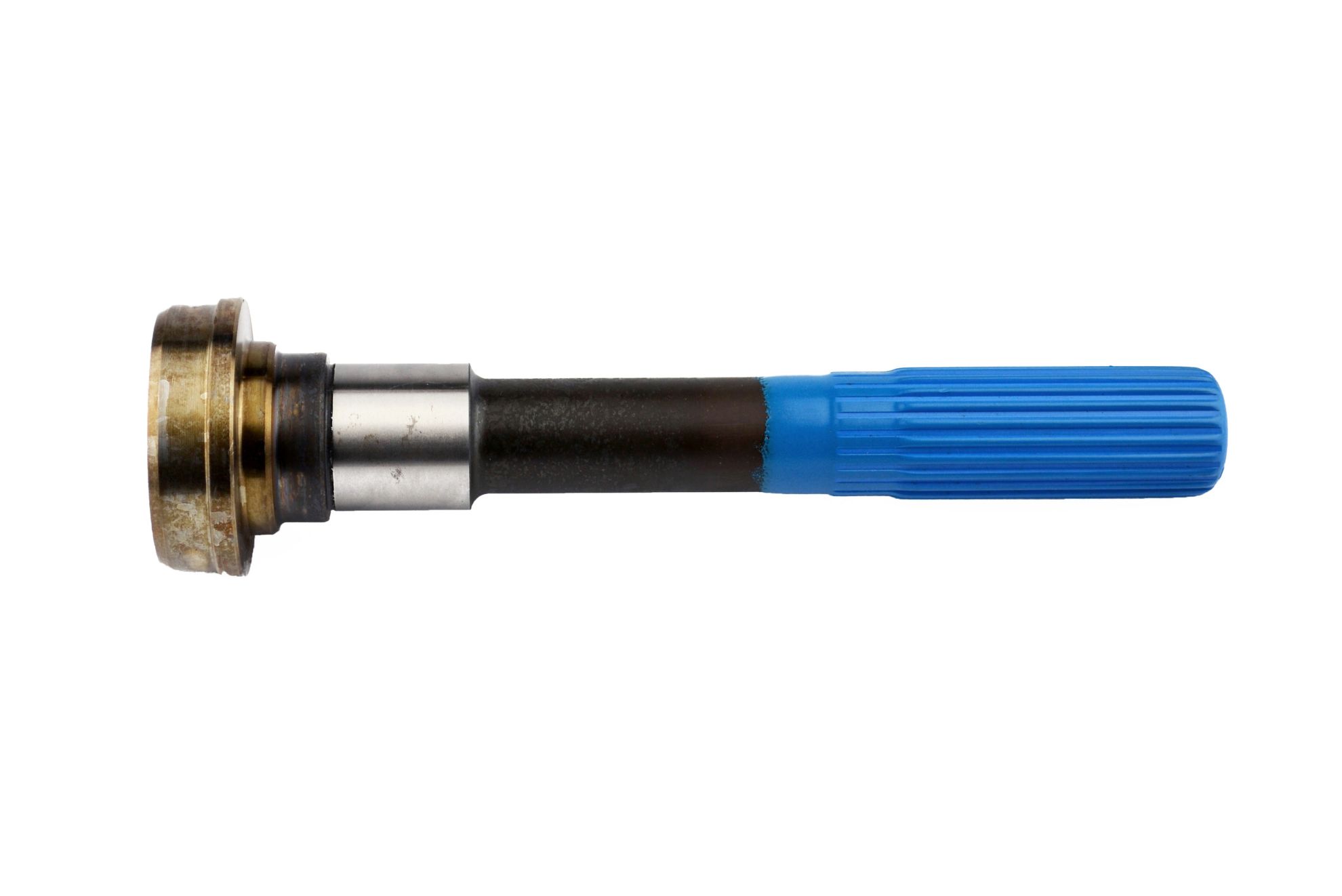

Spicer Drive Shaft Midship Stub Shaft - 3-53-2451

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-2451
SKU: 3-53-2451
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-2451

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310-1410
Material	Steel
Style	2
Prop 65	NO
Spline O.D.	1.4370
Shoulder Diameter (B) In.	1.810
Shoulder Length (G) In.	0.880
Spline End To Brg Shoulder (Y)	9.500
Bearing Diameter Length	1.5
Bearing Diameter Radius	0.19
Fits Tube Diameter	3
Involute	Y
For Use With	Outboard Slip Yoke
Number of Splines	21/22 I
Fits Tube Wall	0.083
Butt Diameter	2.845
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5751
Spline End To Weld (K) In.	10.620
Spline Length (L) In	3.500
Bearing Diameter (Min)	1.5747
Country of Origin	MX
Condition	New
