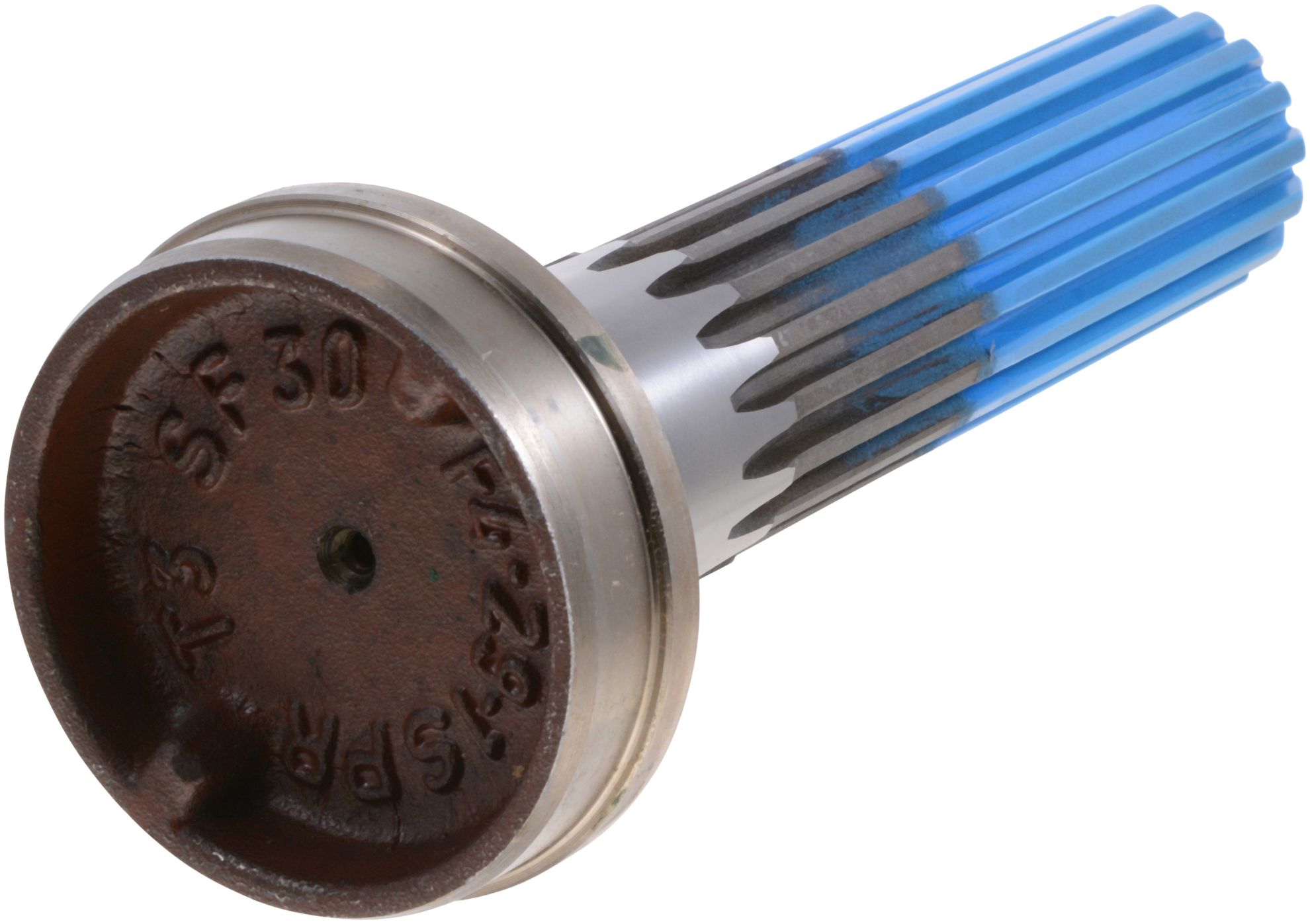

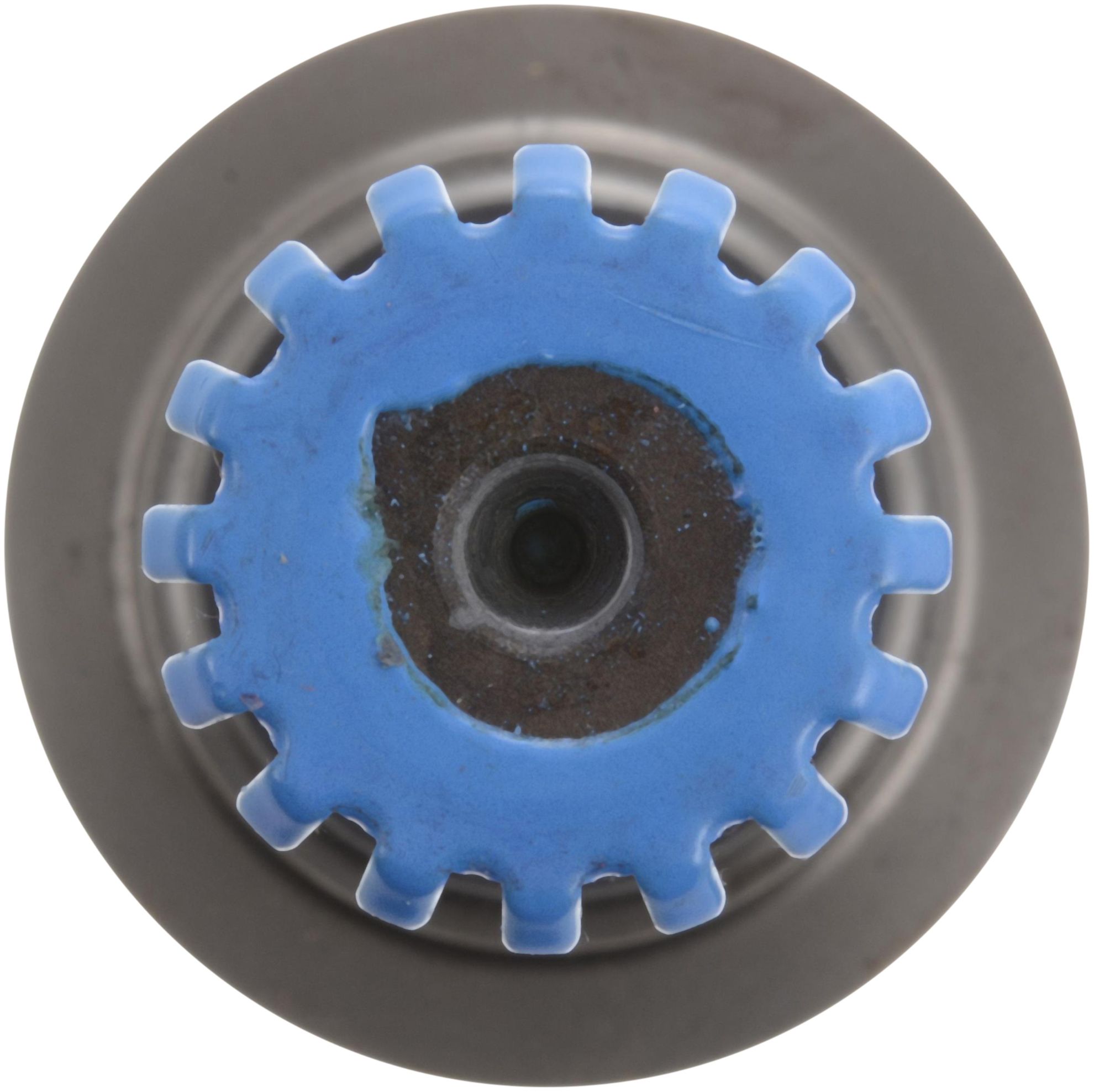

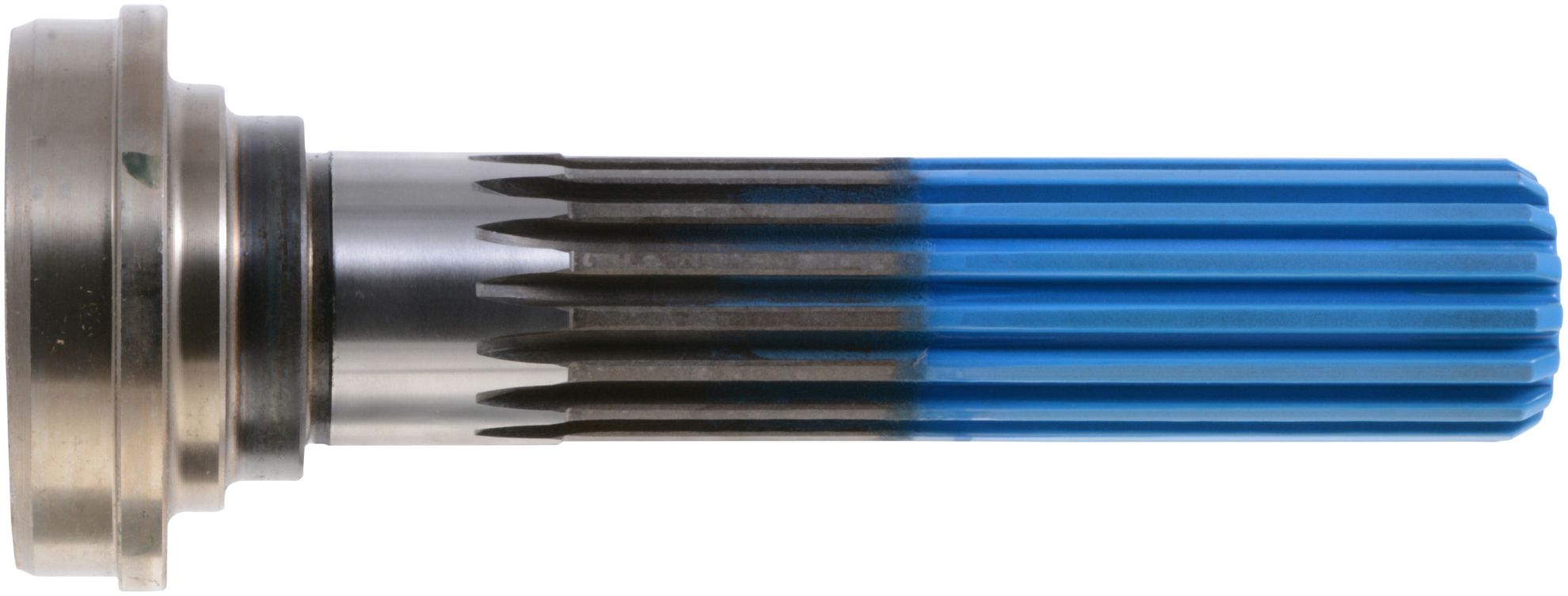

Spicer Drive Shaft Midship Stub Shaft - 4-53-61

Name: Spicer Drive Shaft Midship Stub Shaft - 4-53-61
SKU: 4-53-61
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 4-53-61

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1550
Material	Steel
Style	1
Prop 65	NO
Spline O.D.	1.7500
Fits Tube Diameter	3.5
Involute	N
Fits Tube Wall	0.095
Butt Diameter	3.321
Bearing Diameter (C) In.	1.772
Bearing Diameter (Max)	1.7721
Spline End To Weld (K) In.	8.562
Spline Length (L) In	5.938
Bearing Diameter (Min)	1.7716
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	2.188
Shoulder Length (G) In.	0.812
Spline End To Brg Shoulder (Y)	7.469
Number of Splines	16
Country of Origin	IN
Condition	New
