Spicer Select Universal Joint - 25-4328X

Name: Spicer Select Universal Joint - 25-4328X
SKU: 25-4328X
Availability: InStock

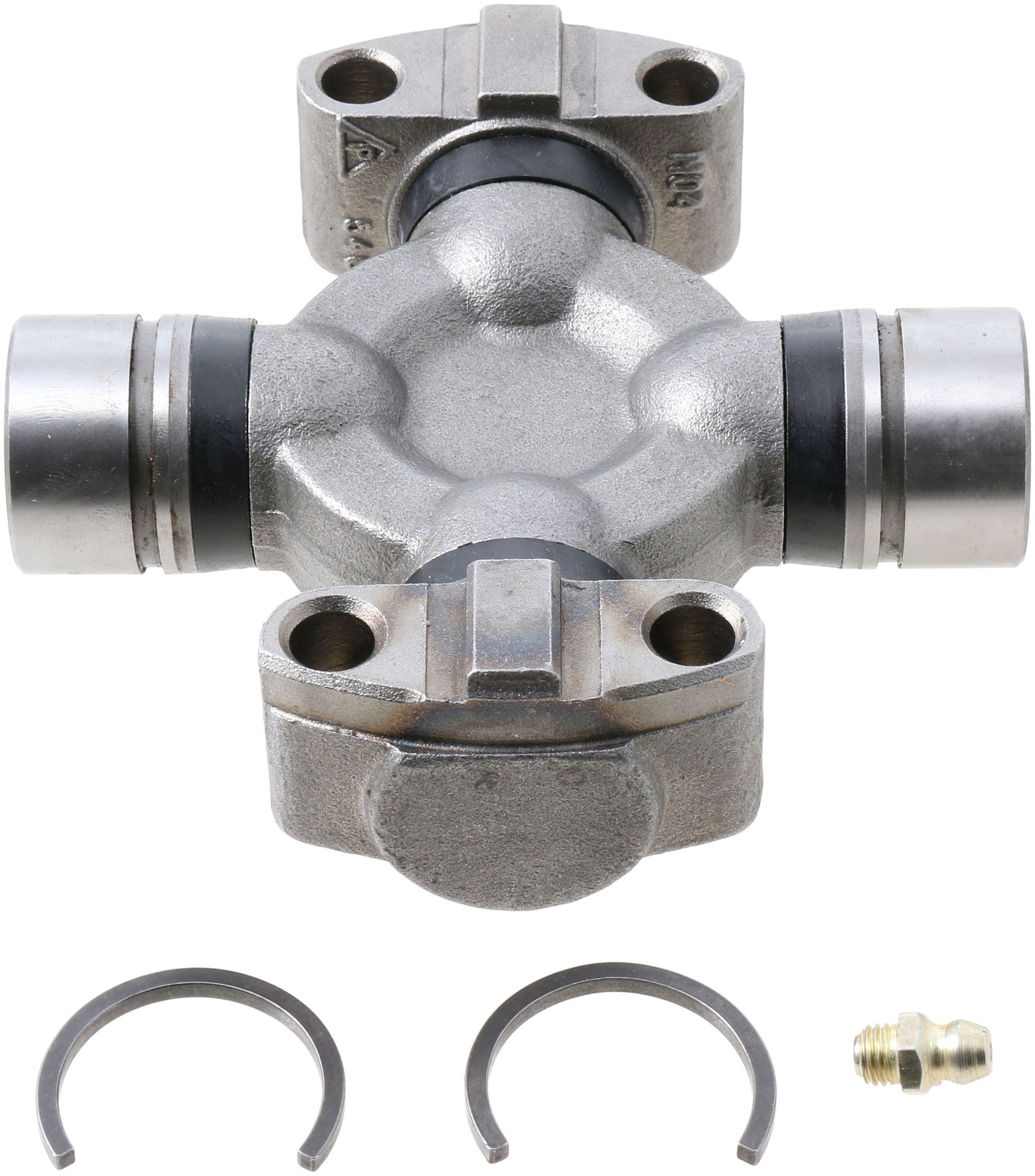

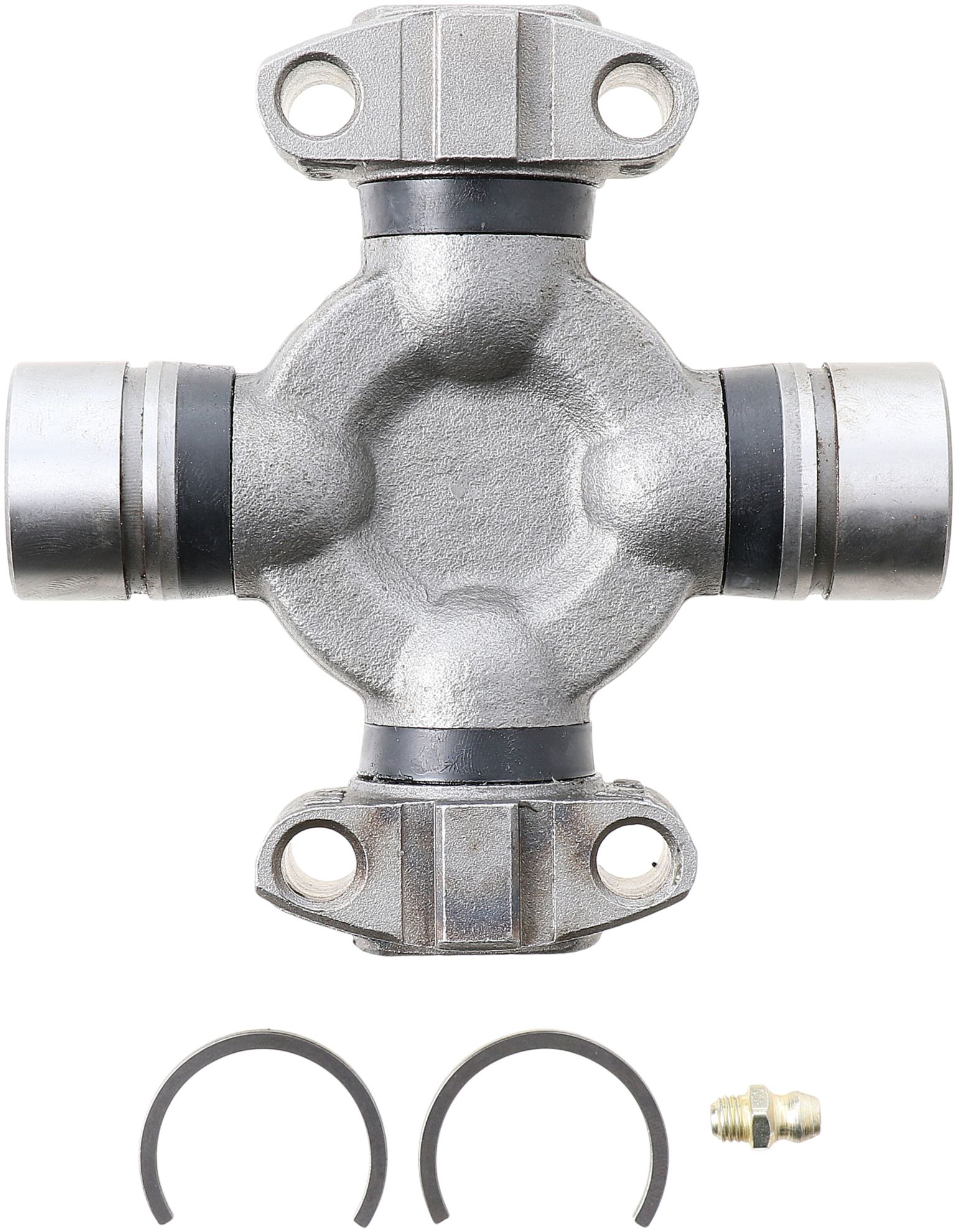

Universal Joint Greaseable Mechanics 4 Series 2 HWD

Manufacturer: Spicer Select

Manufacturer part number: 25-4328X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Choosing aftermarket products does not have to mean taking a chance on Quality. Spicer Select Aftermarket Drivetrain Products are Dana-engineered to provide dependable performance. More than 100 years of expertise is proof-positive that we get the job done right, so you can keep doing yours.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.125
OEM Mfg	Mechanics
OEM Series	Mechanics 4
Type	ISR/WB Style
Converts This Series	4R
Pilot Diameter	4.250
To This Series	4BL
Distance Between Bolts (2)	1.437
Wb Type (2)	HWD
Bearing Cap Type	Round with ISR Groove X Wing
Snap Ring Included	Yes
Snap Ring Type	Internal
Grease Zerk Included	Yes
Pre-Greased	No
Grease Fitting Location	Side of Cross
Greaseable	Yes
Bearing Cap Diameter A (mm)	28.575
Bearing Cap Type A	ISR
Bearing Cap Type B	HWD
Hardware Included	No
Length A (In)	3.250
Length A (mm)	82.55
Mounting Hardware Included	No
Prop 65	NO
Distance Btw Snap Ring Grooves	3.250
Wing Bearing Type	HWD
Wing Bearing Type Pilot Diam.	4.250
Country of Origin	US
Condition	New
