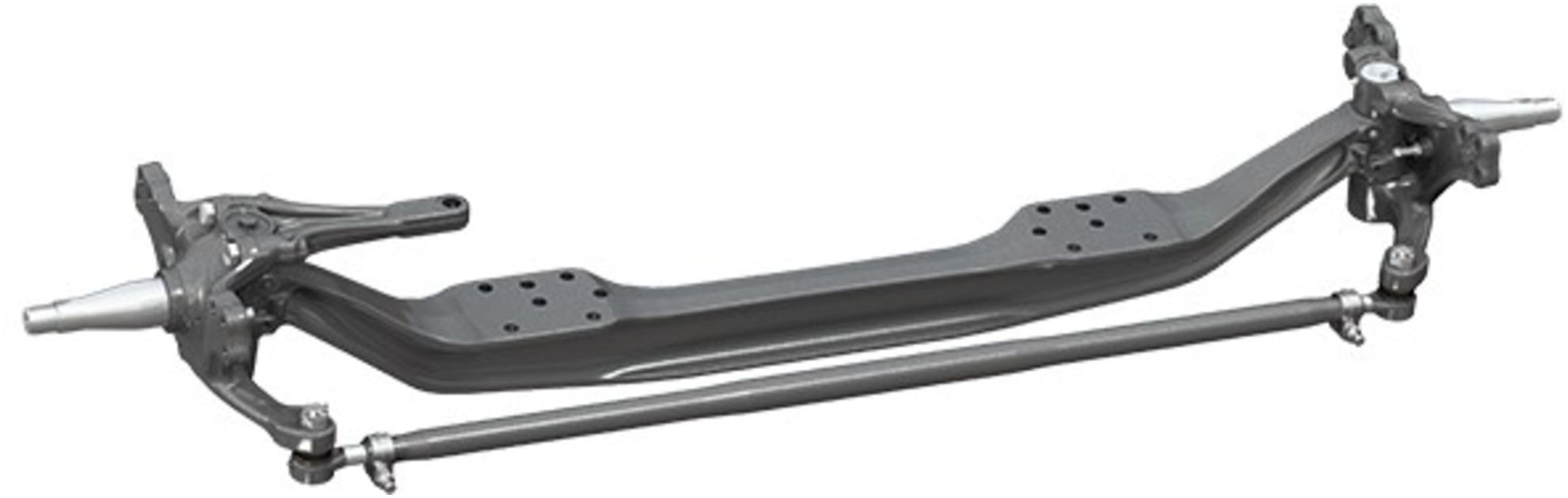

Spicer Steer Axle Assembly - 220BN108-51

Name: Spicer Steer Axle Assembly - 220BN108-51
SKU: 220BN108-51
Availability: InStock

Steer Axle Assembly D2000

Manufacturer: Spicer

Manufacturer part number: 220BN108-51

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Model	D2200F
Drop	3.50
Beam Center Drill Depth	0.78
Beam Center Drill Diameter	0.81
Beam Drill Hole Diameter	0.94
Beam Drill Pattern Length	4.94
Beam Drill Pattern Width	4.25
Beam Spring Mount Cntr To Cntr	34.00
KPI	68.04
Spindle Nut Thread	1.750-12 UNF-2A
Turn Angle LH	25 - 40
Turn Angle RH	25 - 40
Country of Origin	MX
Condition	New
