Wiseco Engine Piston Set - RED0212XS

Name: Wiseco Engine Piston Set - RED0212XS
SKU: RED0212XS
Price: 855.54 USD
Availability: OutOfStock

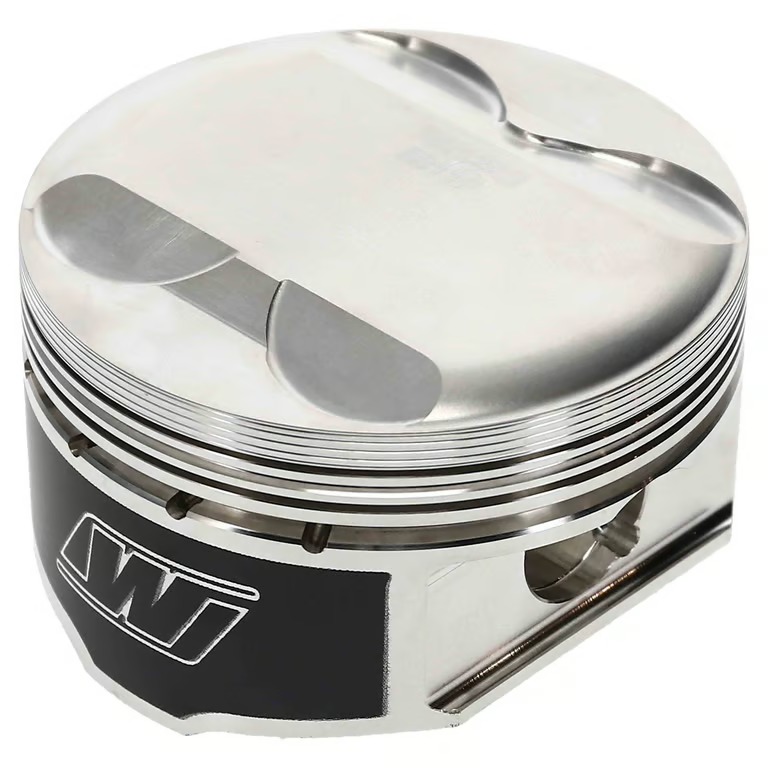

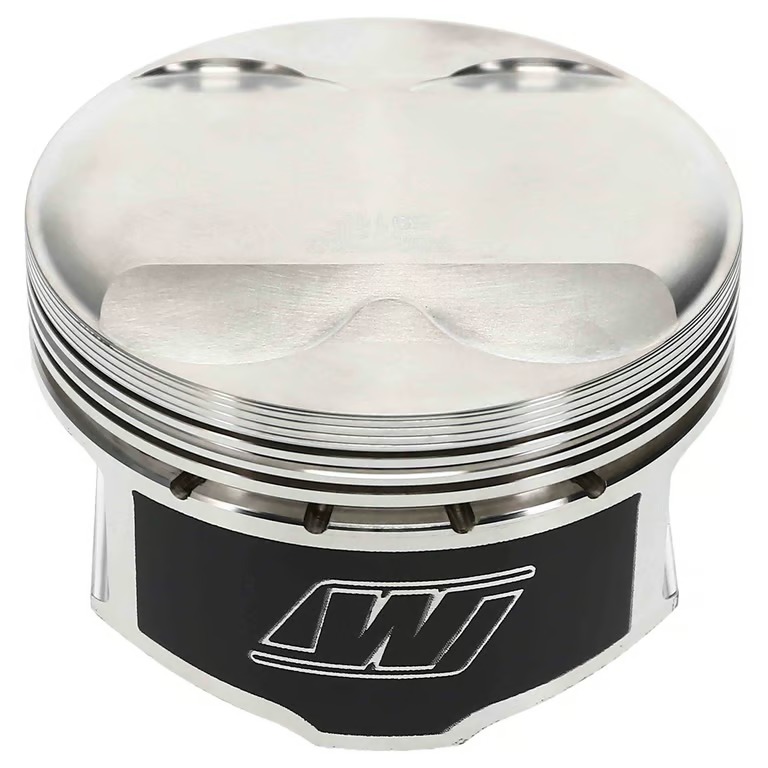

Piston, Chevrolet, Vortec 4200, 3.661 in. Bore, RED Series, Set of 6

Manufacturer: Wiseco

Manufacturer part number: RED0212XS

$855.54

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Products specifications

Attribute name	Attribute value
Category Hierarchy	Auto>Pistons>Piston Kits>Domestic>RED Series
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Product Series	RED Series
Included Components	Piston #70212XS, Ring Set #9300XX, Wrist Pin #S789, Wire Lock #CW23
Bore Diameter	3.661
Stroke	4.016
Rod Length	5.984
Compression Height	1.125
Piston Volume	10.50
Material	2618
Skirt Coating	Yes
Forging Type	Full Round
Piston Oversize	0
Piston Quantity	6
Wrist Pin Quantity	6
Ring Set Included	Yes
Ring Set Part Number	9300XX
Ring Quantity	6
Top Compression Ring Thickness	1
Top Ring Facing Material	Gas Nitrided
Top Ring Material	Stainless Steel
Second Compression Ring Thickness	1.20
Second Ring Facing Material	Phosphate Coated
Second Ring Material	Cast Iron
Oil Ring Thickness	2.80
Third Ring Material	Stainless Steel
Wrist Pin Included	Yes
Wrist Pin Part Number	S789
Wrist Pin Material	52100
Wrist Pin Style	Floating
Wrist Pin Outer Diameter	0.905
Wrist Pin Inner Diameter	0.4555
Wrist Pin Length	2.500
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	CW23
Wrist Pin Retainer Quantity	12
Wrist Pin Retainer Style	Wire Lock
Wrist Pin Retainer Material	Chrome Silicon
Wrist Pin Retainer Thickness	0.049
Cylinder Head	Vortec 4200
Engine Detail	LL8
Product Type	Engine Piston Set
Country of Origin	US
Condition	New
