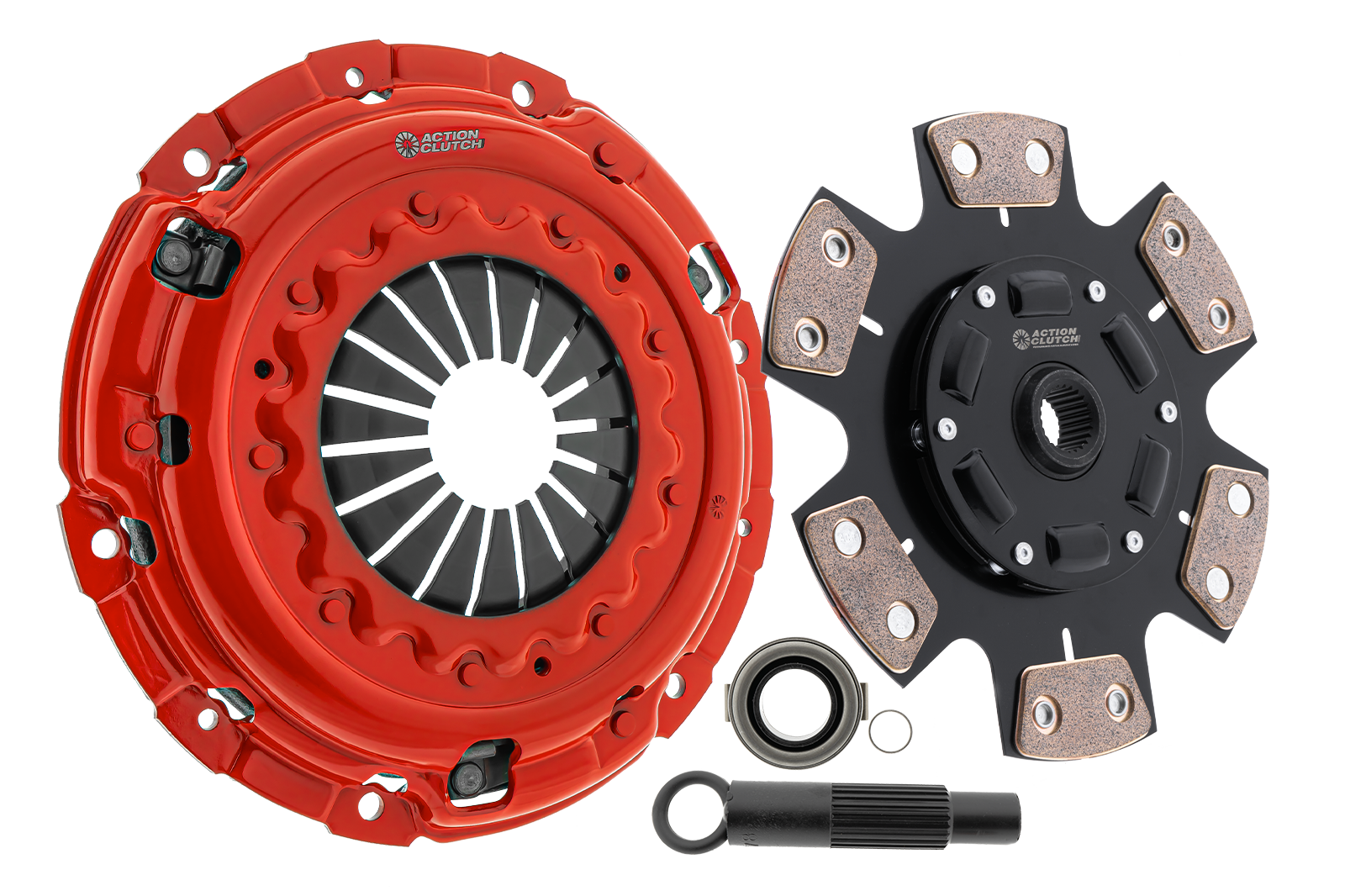

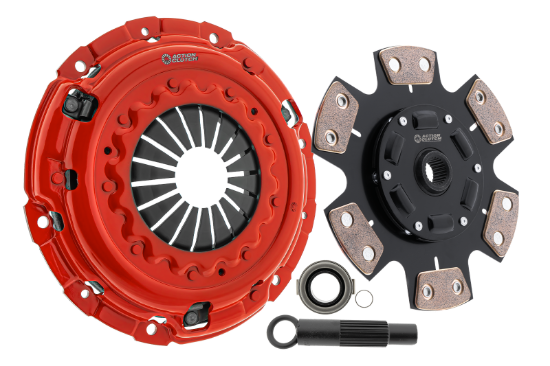

Action Clutch Transmission Clutch Kit - ACR-0456

Name: Action Clutch Transmission Clutch Kit - ACR-0456
SKU: ACR-0456
Price: 396.76 USD
Availability: OutOfStock

Clutch Kit (2MS) for Acura Integra 1986-1989 1.6L SOHC (D16)

Manufacturer: Action Clutch

Manufacturer part number: ACR-0456

Old price: $520.75

Price: $396.76

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Action Clutch's Stage 5 (2MS) Clutch Kit allows for maximum performance of mid ranged powered vehicles. Our heavy-duty pressure plate is designed with a dual clamp load diaphragm and reinforced drive straps, creating an extremely durable system that you can rely on. This MIBA Sprung Ceramic kit features a MIBA Ceramic (available in a 4 or 6 puck) disc. With lightning-fast engagement and minimal clutch chatter after proper break-in, this clutch kit is ideal for harnessing all the power and performance you need out of your vehicle without compromising on reliability or longevity. At Action Clutch, safety is our top priority. We understand how catastrophic engine or transmission damage can be caused by springs popping out which is why we use our patented, fully enclosed spring retainers to keep your investment protected at all times. Every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 200% INCREASED HOLDING CAPACITY OVER FACTORY KIT RACE APPLICATIONS / HEAVY TRACK USE / LIGHT STREET USE

Note: Requires AC101FW for proper installation.

Products specifications

Attribute name	Attribute value
Release Bearing Included	Yes
Clutch Disk Spline Diameter	7/8
Clutch Disk Diameter	200
Alignment Tool Model	AT57
Pilot Bearing Model	6002RS
Release Bearing Model	RB-0304
Pressure Plate Model	HCC507HD 30
Clutch Disk Model	ACR-CB6-200 7/8X21T-S
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Release Style	Conventional Release Bearing
Counterweight Assist	No
Package Contents	Sprung MIBA Ceramic 6 Puck Disc
Weight	15
Clutch Kit Type	Stage 5 Clutch Kit (2MS)
Prop 65 Yes/No	Yes
Spring Cover Included	Yes
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	21
Alignment Tool Included	Yes
Installation Care	Requires AC101FW for proper installation.
Country of Origin	US
Condition	New
