Action Clutch Transmission Clutch Kit - ACR-0748

Name: Action Clutch Transmission Clutch Kit - ACR-0748
SKU: ACR-0748
Price: 429.00 USD
Availability: InStock

Clutch Kit (2MD) for Infiniti G20 1991-2002 2.0L DOHC (SR20DE)

Manufacturer: Action Clutch

$429.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

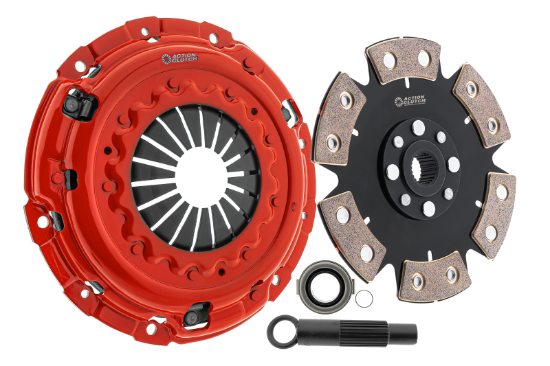

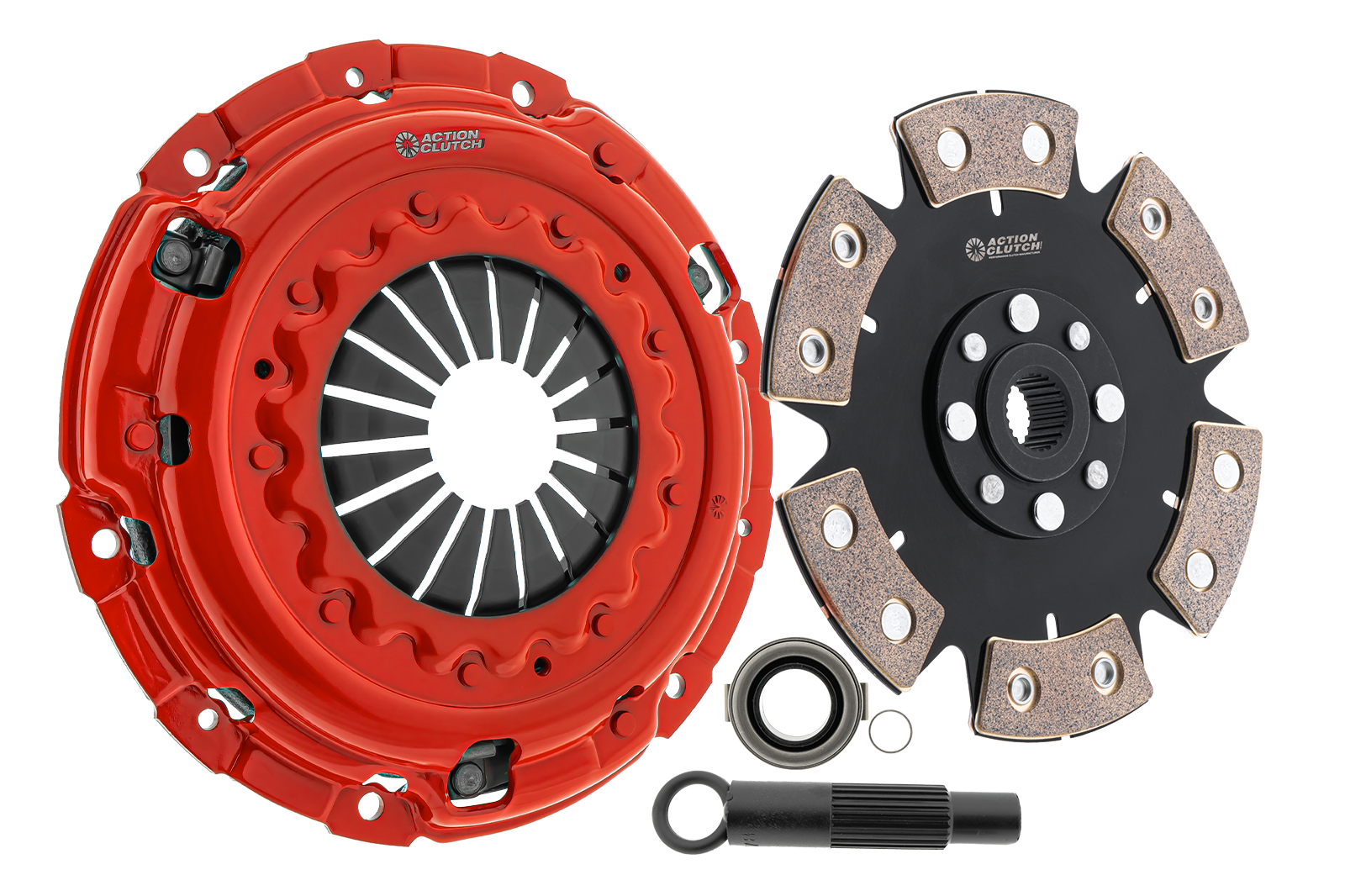

Action Clutch's Stage 6 (2MD) Clutch Kit allows for maximum performance of mid ranged powered vehicles. Our heavy-duty pressure plate is designed with a dual clamp load diaphragm and reinforced drive straps, creating an extremely durable system that you can rely on. This Unsprung clutch kit features a MIBA Ceramic (available in a 4 or 6 puck) disc. With lightning-fast, on/off engagement and minimal clutch chatter after proper break-in. This clutch kit is ideal for harnessing all the power and performance you need out of your dedicated race vehicle without compromising reliability or longevity. At Action Clutch, every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 200% INCREASED HOLDING CAPACITY OVER FACTORY KIT RACE APPLICATIONS / HEAVY TRACK USE / LIGHT STREET USE

Products specifications

Attribute name	Attribute value
Alignment Tool Included	Yes
Clutch Disk Model	ACR-CB6-215 13/16X18T-R
Disclaimer	Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Clutch Disk Spline Diameter	13/16
Clutch Disk Diameter	215
Alignment Tool Model	AT68
Pilot Bearing Model	PB22
Release Bearing Model	RB-0106
Pressure Plate Model	NSC573 (2800-3000)
Break-in Care	500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Pilot Bearing Included	Yes
Mounting Hardware Included	No
Flywheel Included	No
Friction Material	Metallic
Clutch Disk Spline Count	18
Package Contents	Unsprung MIBA Ceramic 6 Puck Disc
Counterweight Assist	No
Weight	15
Clutch Kit Type	Stage 6 Clutch Kit (2MD)
Prop 65 Yes/No	Yes
Spring Cover Included	No
Release Bearing Included	Yes
Country of Origin	US
Condition	New

🚗 Compatible with

10 vehicles are compatible with this product

Year	Make	Model
1991	INFINITI	G20
1992	INFINITI	G20
1993	INFINITI	G20
1994	INFINITI	G20
1995	INFINITI	G20
1996	INFINITI	G20
1999	INFINITI	G20
2000	INFINITI	G20
2001	INFINITI	G20
2002	INFINITI	G20
