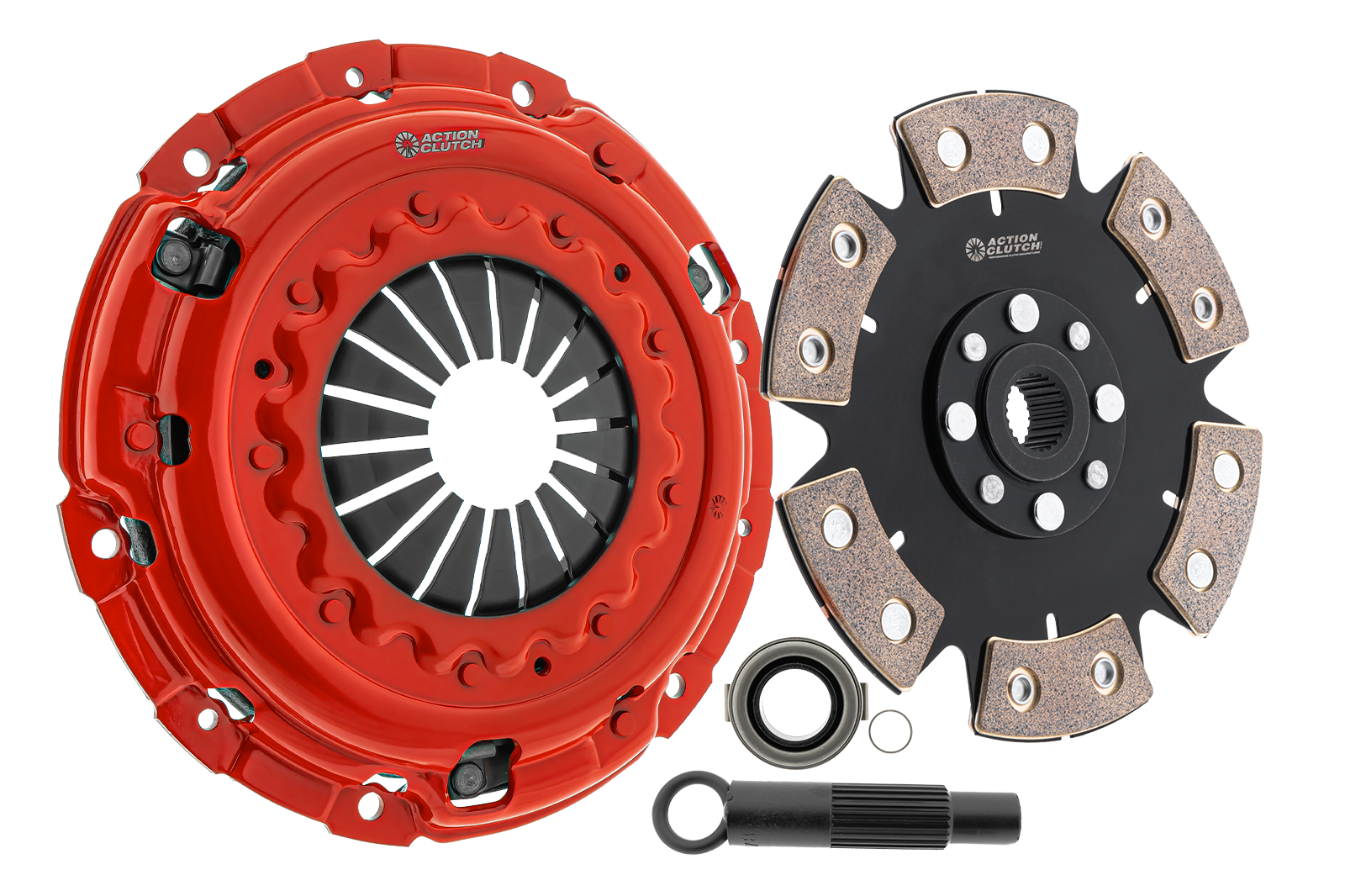

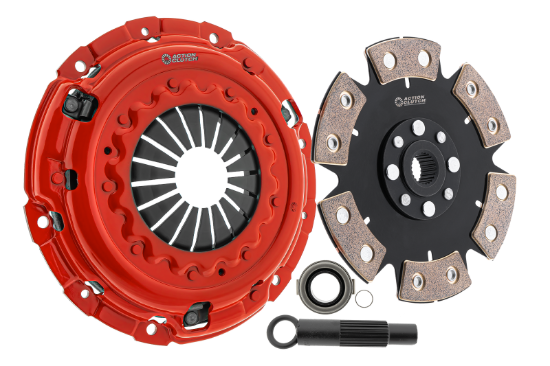

Picture of Action Clutch Transmission Clutch Kit - ACR-2172

Action Clutch Transmission Clutch Kit - ACR-2172

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Clutch Kit (2MD) for Toyota Tercel 1991-1994 1.5L SOHC (3EE)
Manufacturer: Action Clutch
$463.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Action Clutch's Stage 6 (2MD) Clutch Kit allows for maximum performance of mid ranged powered vehicles. Our heavy-duty pressure plate is designed with a dual clamp load diaphragm and reinforced drive straps, creating an extremely durable system that you can rely on. This Unsprung clutch kit features a MIBA Ceramic (available in a 4 or 6 puck) disc. With lightning-fast, on/off engagement and minimal clutch chatter after proper break-in. This clutch kit is ideal for harnessing all the power and performance you need out of your dedicated race vehicle without compromising reliability or longevity. At Action Clutch, every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 200% INCREASED HOLDING CAPACITY OVER FACTORY KIT RACE APPLICATIONS / HEAVY TRACK USE / LIGHT STREET USE

Note: Fits 1991-1994 Toyota Tercel 1.5L with 4 Speed Manual Transmission Only

Products specifications

Attribute name Attribute value
Alignment Tool Included Yes
Installation Care Fits 1991-1994 Toyota Tercel 1.5L with 4 Speed Manual Transmission Only
Clutch Disk Spline Diameter 15/16
Clutch Disk Diameter 200
Alignment Tool Model AT12
Release Bearing Model 50SCRN31PA
Pressure Plate Model TYC523HD 5.4KN R
Clutch Disk Model ACR-CB6-200 15/16X21T-R
Spring Cover Included No
Release Bearing Included Yes
Pilot Bearing Included Yes
Mounting Hardware Included No
Flywheel Included No
Friction Material Metallic
Clutch Disk Spline Count 21
Prop 65 Yes/No Yes
Clutch Kit Type Stage 6 Clutch Kit (2MD)
Package Contents Unsprung MIBA Ceramic 6 Puck Disc
Counterweight Assist No
Release Style Conventional Release Bearing
Disclaimer Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Using a clutch kit with an unsprung clutch disc on a stock or lightly modified power engine that is daily/street driven vehicle can break the rivets on the clutch disc hub. Unsprung clutch kits are not designed for daily/street use or any constant on/off engagement environment. This can be compared to running a marathon in sandals vs a proper running shoe. If you were to run the marathon ins sandals, you have no cushion or comfort and can cause injuries or wear you down faster than using proper running shoes. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Break-in Care 500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Country of Origin US
Condition New
🚗 Compatible with
4 vehicles are compatible with this product
Year Make Model
1991 Toyota Tercel
1992 Toyota Tercel
1993 Toyota Tercel
1994 Toyota Tercel
