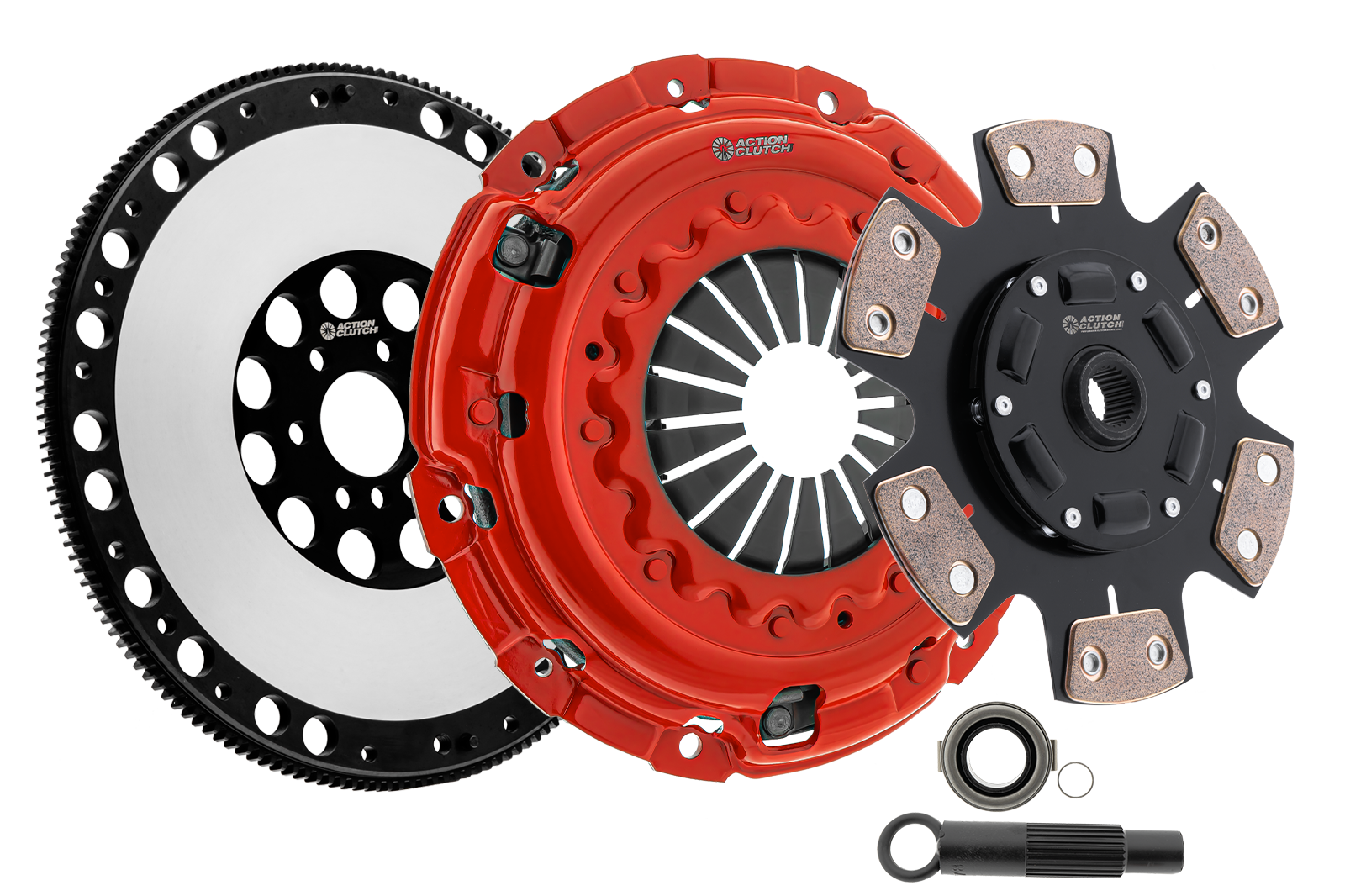

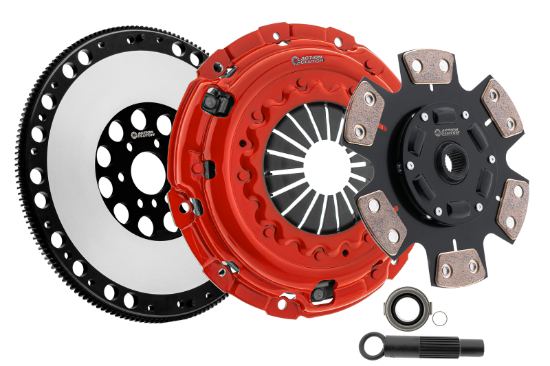

Action Clutch Transmission Clutch Kit - ACR-3600

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Clutch Kit (1MS) for Subaru WRX 2022-2023 2.4L (FA24DIT)
Manufacturer: Action Clutch
$779.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Action Clutch's Stage 3 (1MS) Clutch Kit is designed to withstand even the most challenging conditions. Featuring a heavy-duty single diaphragm pressure plate, reinforced drive straps, and a Sprung MIBA Ceramic (available in a 4 or 6 puck) disc, this kit provides peak performance and extreme durability for low/mild horsepower vehicles. Our Sprung MIBA Ceramic clutch kit provides quicker engagement and will introduce some clutch chatter, which will minimize after proper break-in. For those looking to take their vehicles to the next level, the Stage 3 (1MS) Action Clutch Kit provides maximum control and power with little compromise on reliability. At Action Clutch, safety is our top priority. We understand how catastrophic engine or transmission damage can be caused by springs popping out which is why we use our patented, fully enclosed spring retainers to keep your investment protected at all times. Every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 170% INCREASED HOLDING CAPACITY OVER FACTORY KIT HEAVY-DUTY STREET USE AND OCCASIONAL DRAG / ROAD / DRIFT RACING

Note: This clutch and flywheel must be used together.

Products specifications

Attribute name Attribute value
Prop 65 Yes/No Yes
Pressure Plate Model FJC530 REGULAR R
Clutch Disk Spline Diameter 1
Clutch Disk Diameter 225/230
Alignment Tool Model AT90
Flywheel Model AC105FW
Pilot Bearing Model PB-6201
Release Bearing Model RB-0908
Clutch Disk Model ACR-CB6-225/230 1X24T-S
Clutch Kit Type Stage 3 Clutch Kit (1MS)
Break-in Care 500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Flywheel Style Lightened Flywheel
Disclaimer Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Installation Care This clutch and flywheel must be used together.
Release Style Conventional Release Bearing
Package Contents Sprung MIBA Ceramic 6 Puck Disc
Clutch Disk Spline Count 24
Condition New
🚗 Compatible with
2 vehicles are compatible with this product
Year Make Model
2022 Subaru WRX
2023 Subaru WRX
