Advanced Clutch Transmission Clutch Kit - AI3-XXR6

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

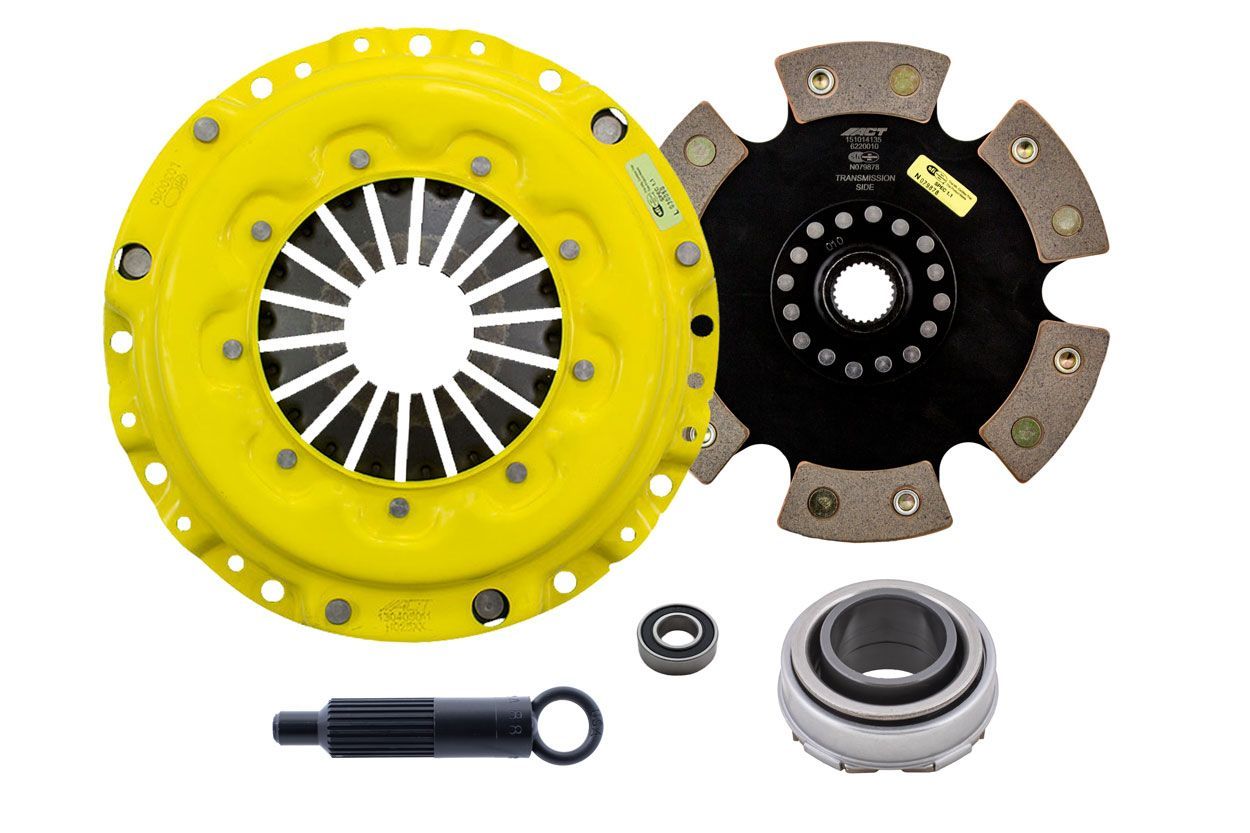

ACT Max Extreme Race Rigid 6 Pad Clutch Kit
Manufacturer: Advanced Clutch
$649.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

AI3-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Note: Heavy to very heavy pedal effort, aggressive engagement, quicker shifts, increased gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for race use only; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name Attribute value
Product Weight (lbs.) 12.6
Torque Capacity Over OE 162%
Torque Capacity (ft/lbs.) 485
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No Yes
Flywheel Included No
Pilot Bushing Included No
Pressure Plate Type Maxx Xtreme
Release Bearing Included Yes
Clutch Disc Diameter 8.7, 220
Disc Material Ceramic
Input Spline Quantity 24
Input Shaft Diameter 1.03125
Alignment Tool Included Yes
Disc Type Sprung Solid Solid
Clutch Slave Cylinder Included No
Flywheel Bolts Included No
Pilot Bearing Included Yes
Clutch Master Cylinder Included No
Pressure Plate Bolts Included No
Grease Included Yes
Grade Type Performance
Country of Origin US
Condition New
🚗 Compatible with
2 vehicles are compatible with this product
Year Make Model
1992 Acura Integra
1993 Acura Integra
