Advanced Clutch Transmission Clutch Kit - FM1-XTSS

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

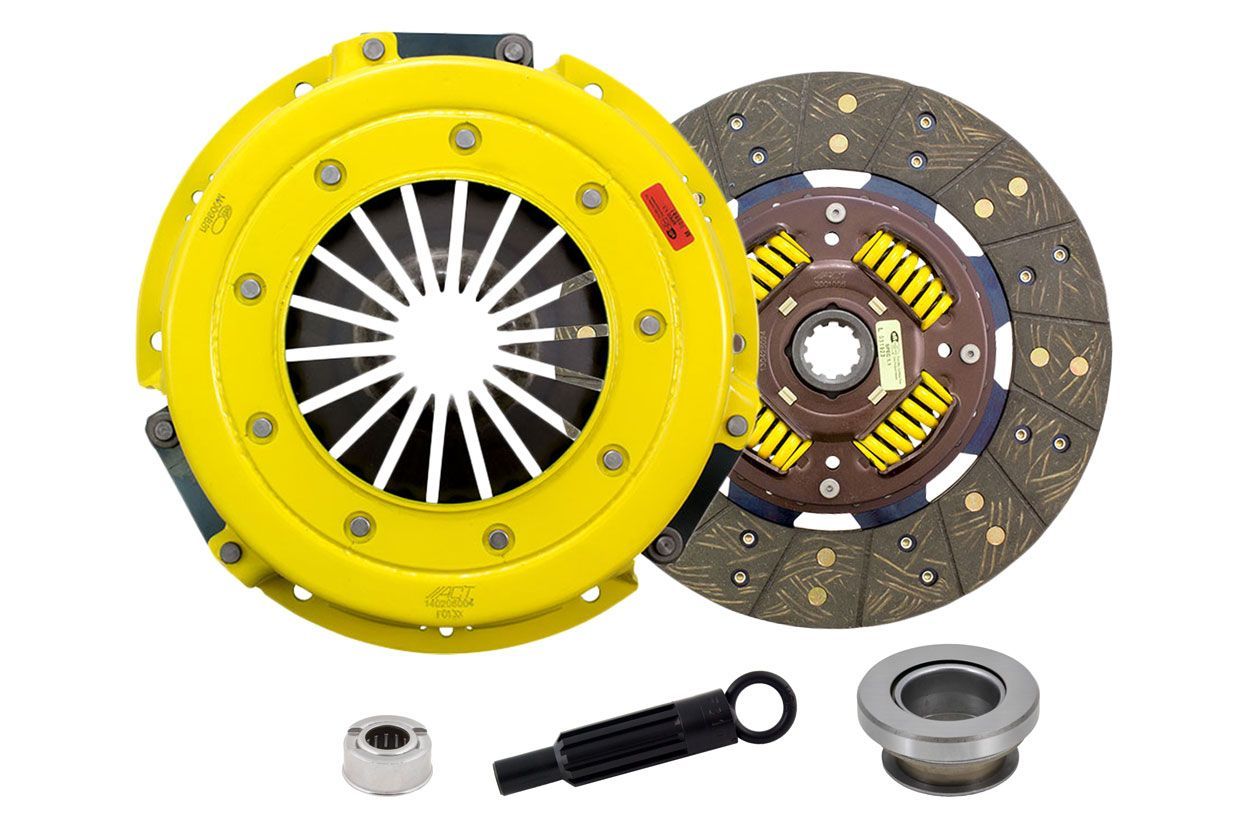

ACT Extreme Performance Street Sprung Clutch Kit
Manufacturer: Advanced Clutch
$613.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

FM1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Note: Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle; Longer friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name Attribute value
Input Shaft Diameter 1.0625
Input Spline Quantity 10
Clutch Disc Diameter 10.5, 266
Product Weight (lbs.) 23.4
Torque Capacity (ft/lbs.) 575
Torque Capacity Over OE 70%
Pilot Bushing Included No
Disc Material Organic
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Pressure Plate Type Xtreme
Release Bearing Included Yes
Alignment Tool Included Yes
Prop 65 Yes/No Yes
Disc Type Sprung Solid Sprung
Clutch Slave Cylinder Included No
Pressure Plate Bolts Included No
Grease Included Yes
Grade Type Performance
Flywheel Bolts Included No
Pilot Bearing Included Yes
Clutch Master Cylinder Included No
Country of Origin KR
Condition New
🚗 Compatible with
11 vehicles are compatible with this product
Year Make Model
1993 Ford Mustang
1986 Ford Mustang
1990 Ford Mustang
1991 Ford Mustang
1992 Ford Mustang
1994 Ford Mustang
1995 Ford Mustang
1987 Ford Mustang
1988 Ford Mustang
1989 Ford Mustang
1986 Mercury Capri
