Advanced Clutch Transmission Clutch Kit - T2R3-T01

ACT Triple Disc Extreme Sintered Iron Race Clutch Kit
Manufacturer: Advanced Clutch
$1,947.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

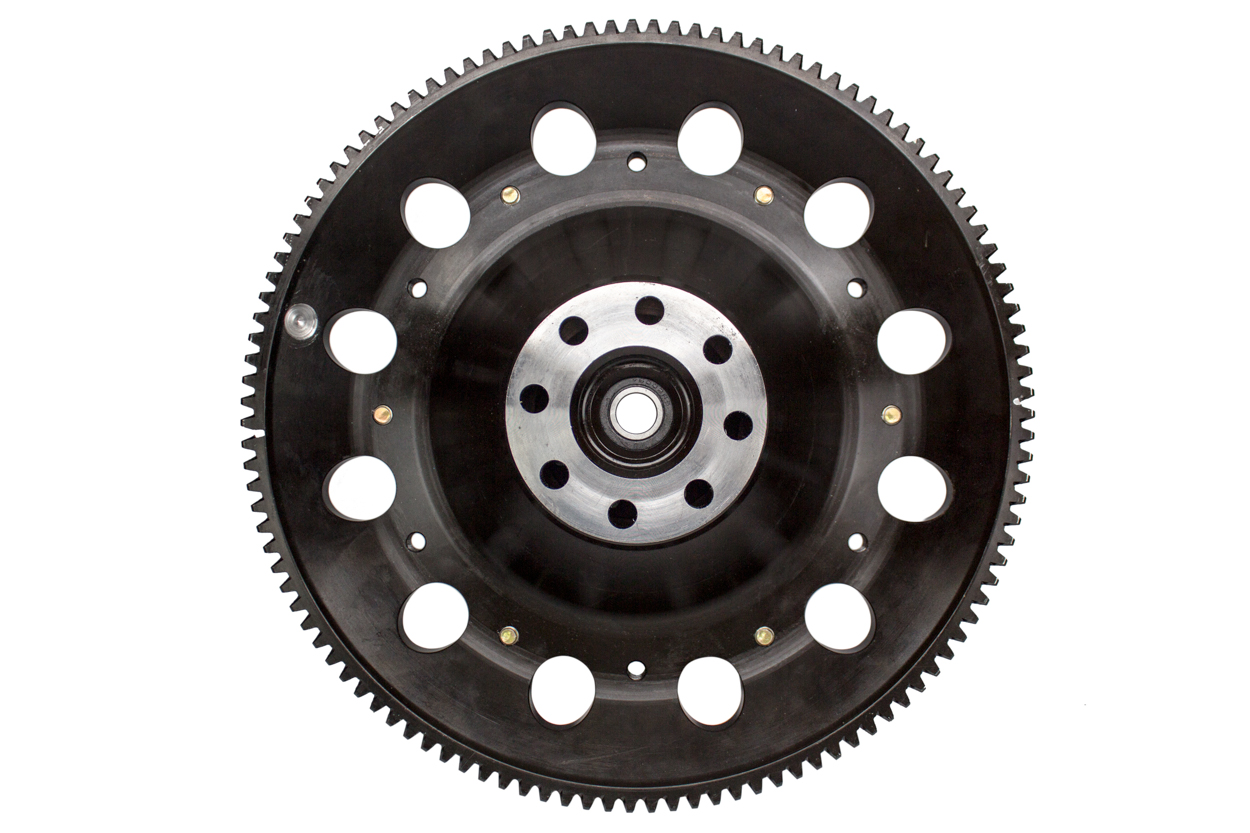

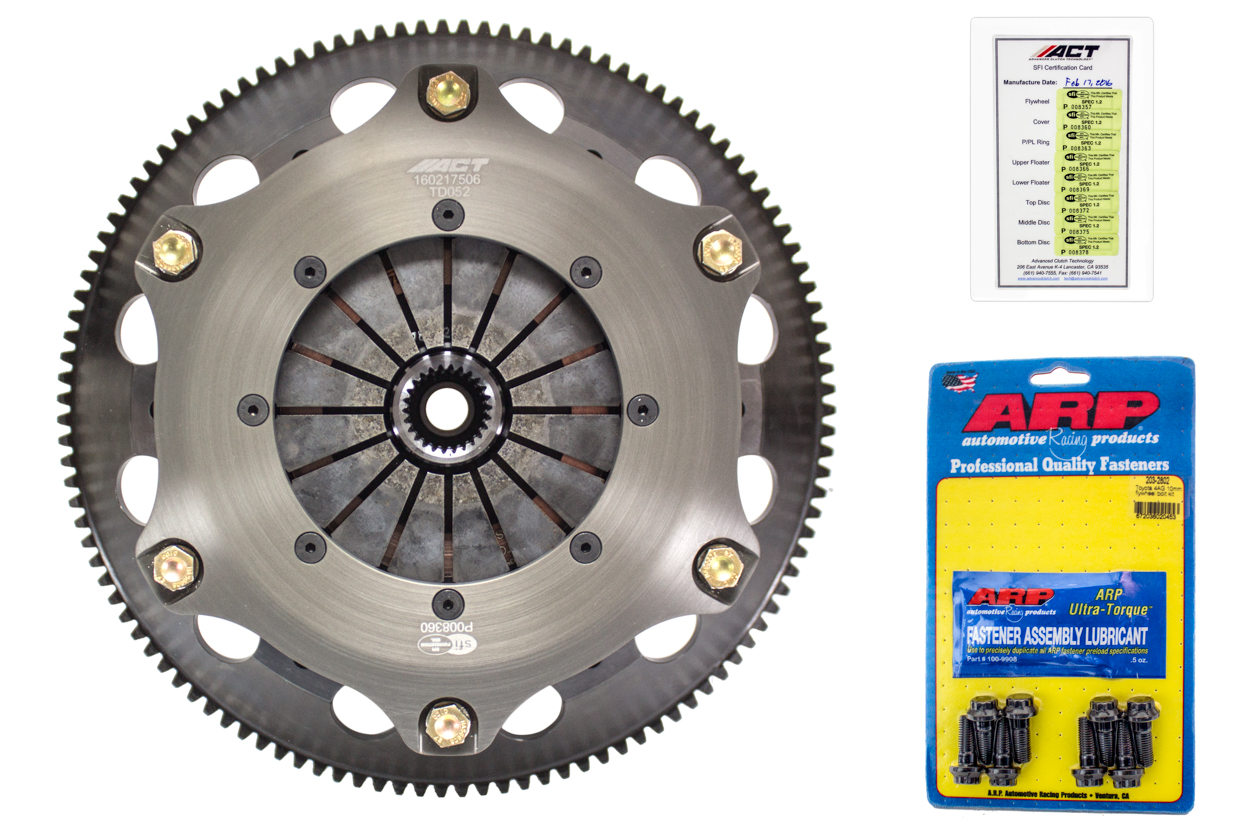

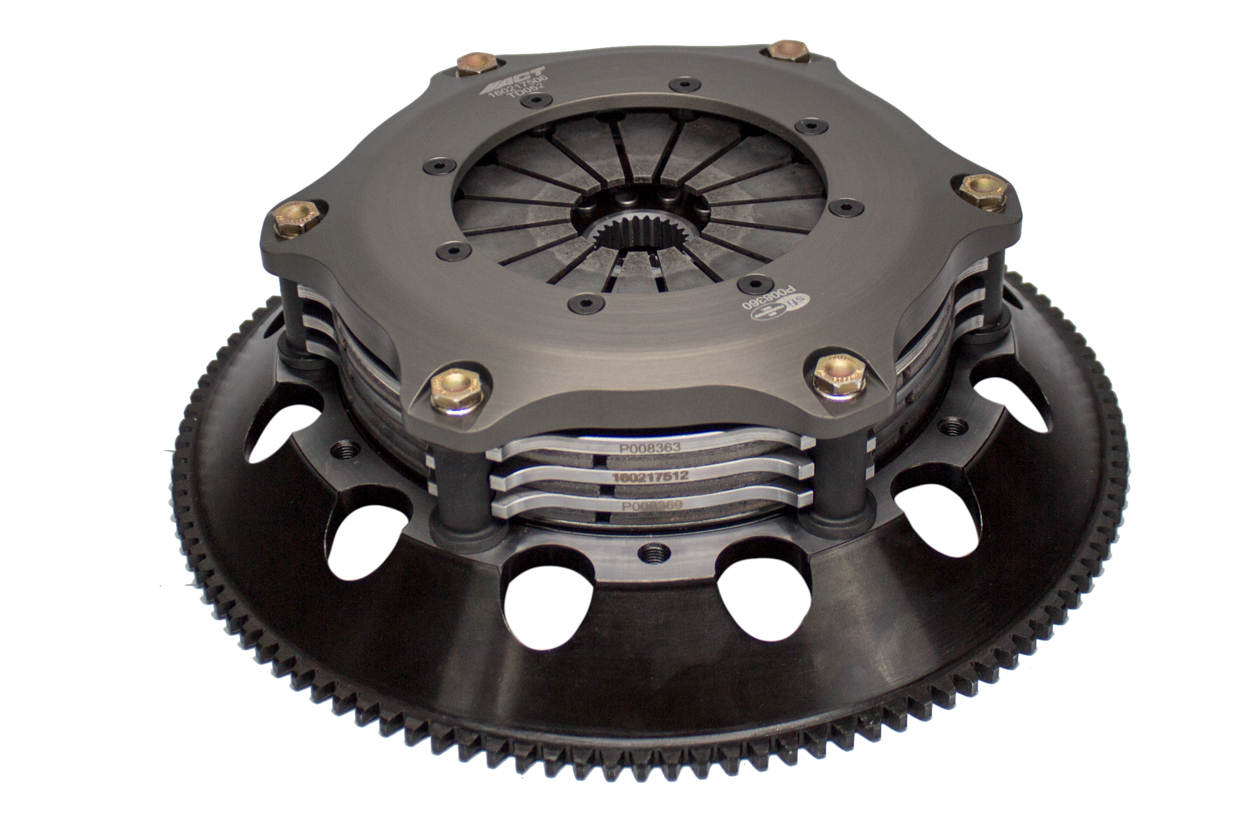

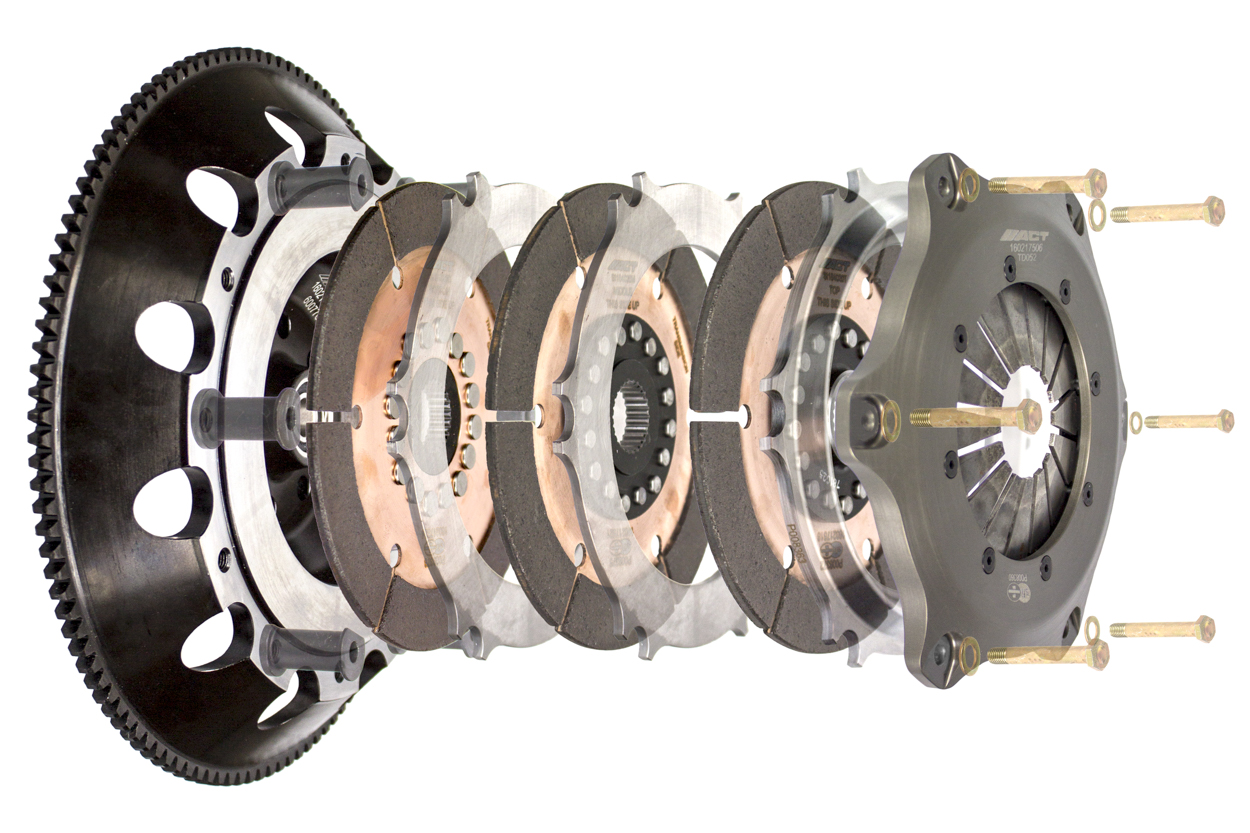

T2R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.

Note: Moderate to heavy pedal effort, predictable, quick engagement, quick throttle response, increased gear rattle; ACT's exclusive diaphragm, hardened posts and high heat capacity for long life under severe abuse, rigid design may increase spline wear; Carefully engineered, precisely assembled, accurately balanced, chromoly hub is heat-treated for strength and durability; Recommended for high horsepower race use only, not intended for street; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Products specifications

Attribute name Attribute value
Part Fitment Requirement Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing # 60-4420. Flywheel bolts included (M10-1.25 X 25mm).
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Flywheel Included Yes
Prop 65 Yes/No Yes
SFI 1.2
Torque Capacity (ft/lbs.) 1569
Product Weight (lbs.) 23.0
Pilot Bushing Included No
Pressure Plate Type Xtreme
Release Bearing Included No
Clutch Disc Diameter 7.25, 184
Disc Material Sintered Iron
Input Spline Quantity 26
Input Shaft Diameter 1.125
Alignment Tool Included Yes
Disc Type Sprung Solid Solid
Clutch Slave Cylinder Included No
Flywheel Bolts Included Yes
Pilot Bearing Included No
Clutch Master Cylinder Included No
Pressure Plate Bolts Included No
Grease Included Yes
Grade Type Performance
Country of Origin US
Condition New
