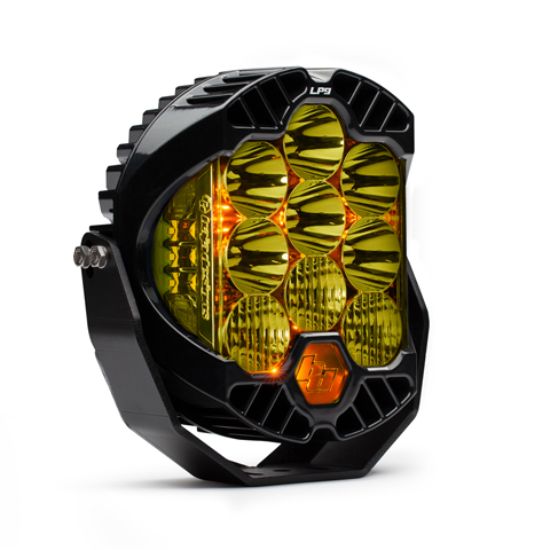

Baja Designs Auxiliary Light - 320013

Name: Baja Designs Auxiliary Light - 320013
SKU: 320013
Price: 628.95 USD
Availability: OutOfStock

LP9 Pro LED Auxiliary Light Pod

Manufacturer: Baja Designs

Manufacturer part number: 320013

$628.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

Note: One Light Pod

Products specifications

Attribute name	Attribute value
Prop 65 Warning Label	Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No	Yes
Prop 65 - Short Label	CR
Backlight Amperage Rating (A)	0.200
Light Quantity	1
Secondary Amperage Rating (A)	1.520
Wattage (W)	124.200
Brightness (Lumens)	12547
Backlight Wattage (W)	2.800
Secondary Wattage (W)	21
Secondary Brightness (Lumens)	2302
Depth (in.)	3.250
Average Rated Life (hr.)	49,930
Patent No.	5,504,603
Secondary Light Quantity	6 LEDs
Weight (lbs.)	6.500
Height (in.)	8
Length (in.)	8
Amperage Rating (A)	9
Lighting Quantity	9
Lens Color	Amber
Housing Color	Black
Overvoltage Protection	Built-In
Beam Pattern	Driving/Combo
Description	Driving/Combo; Amber
Terminal Connector	DT06-4S Deutsch
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Lighting Type	Forward Projecting
Lens Material	Hardcoated Polycarbonate
Lighting Modes	High Beam/Low Beam/Day-Time Running Backlighting
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Secondary Lighting Type	Integrated Peripheral Technology (IPT)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Lighting Technology	LED
Secondary Lighting Technology	LED
Product Type	LP9 Pro LED Light Pod
Terminal Type	Mating Connector
Wiring Harness Included	No
Bezel Material	Powder Coat Cast Aluminum
Housing Material	Powder Coat Cast Aluminum
Mounting Hardware Material	Stainless Steel
Universal or Specific	Universal
Mounting Hardware Included	Yes
DES	LP9 Pro LED Auxiliary Light Pod
EXT	LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)
TLE	LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)
Country of Origin	US
