Baja Designs Auxiliary Light - 330001

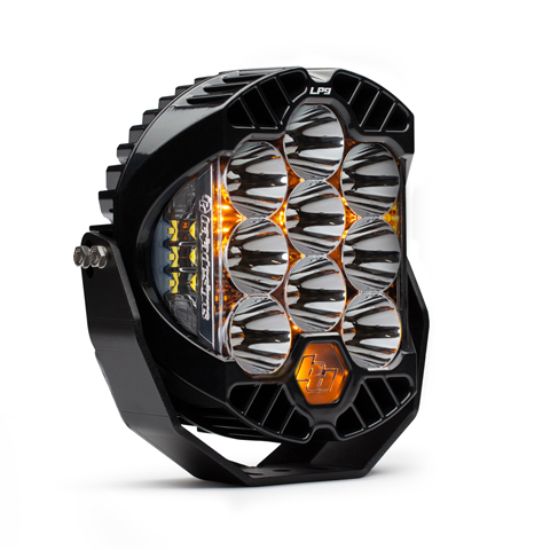

LP9 Racer Edition LED Auxiliary Light Pod
Manufacturer: Baja Designs
Manufacturer part number: 330001
$669.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Note: One Light Pod

Products specifications

Attribute name Attribute value
Prop 65 Warning Label Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No Yes
Prop 65 - Short Label CR
Backlight Amperage Rating (A) 0.200
Light Quantity 1
Secondary Amperage Rating (A) 1.520
Wattage (W) 132.480
Backlight Wattage (W) 2.800
Secondary Wattage (W) 21
Secondary Brightness (Lumens) 2302
Depth (in.) 3.250
Average Rated Life (hr.) 49,930
Patent No. 5,504,603
Secondary Light Quantity 6 LEDs
Weight (lbs.) 6.500
Height (in.) 8
Length (in.) 8
Brightness (Lumens) 8374
Lighting Quantity 9
Amperage Rating (A) 9.600
Housing Color Black
Overvoltage Protection Built-In
Lens Color Clear
Terminal Connector DT06-4S Deutsch
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Lighting Type Forward Projecting
Lens Material Hardcoated Polycarbonate
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Lighting Technology LED
Secondary Lighting Technology LED
Product Type LP9 Racer Edition LED Light Pod
Terminal Type Mating Connector
Wiring Harness Included No
Bezel Material Powder Coat Cast Aluminum
Housing Material Powder Coat Cast Aluminum
Beam Pattern Racer Edition Spot
Description Racer Edition Spot; Clear
Mounting Hardware Material Stainless Steel
Universal or Specific Universal
Mounting Hardware Included Yes
DES LP9 Racer Edition LED Auxiliary Light Pod
EXT LP9 Racer Edition LED Light Pod (Racer Spot; Clear)
TLE LP9 Racer Edition LED Light Pod (Racer Spot; Clear)
Country of Origin US
