Baja Designs Auxiliary Light - 730001

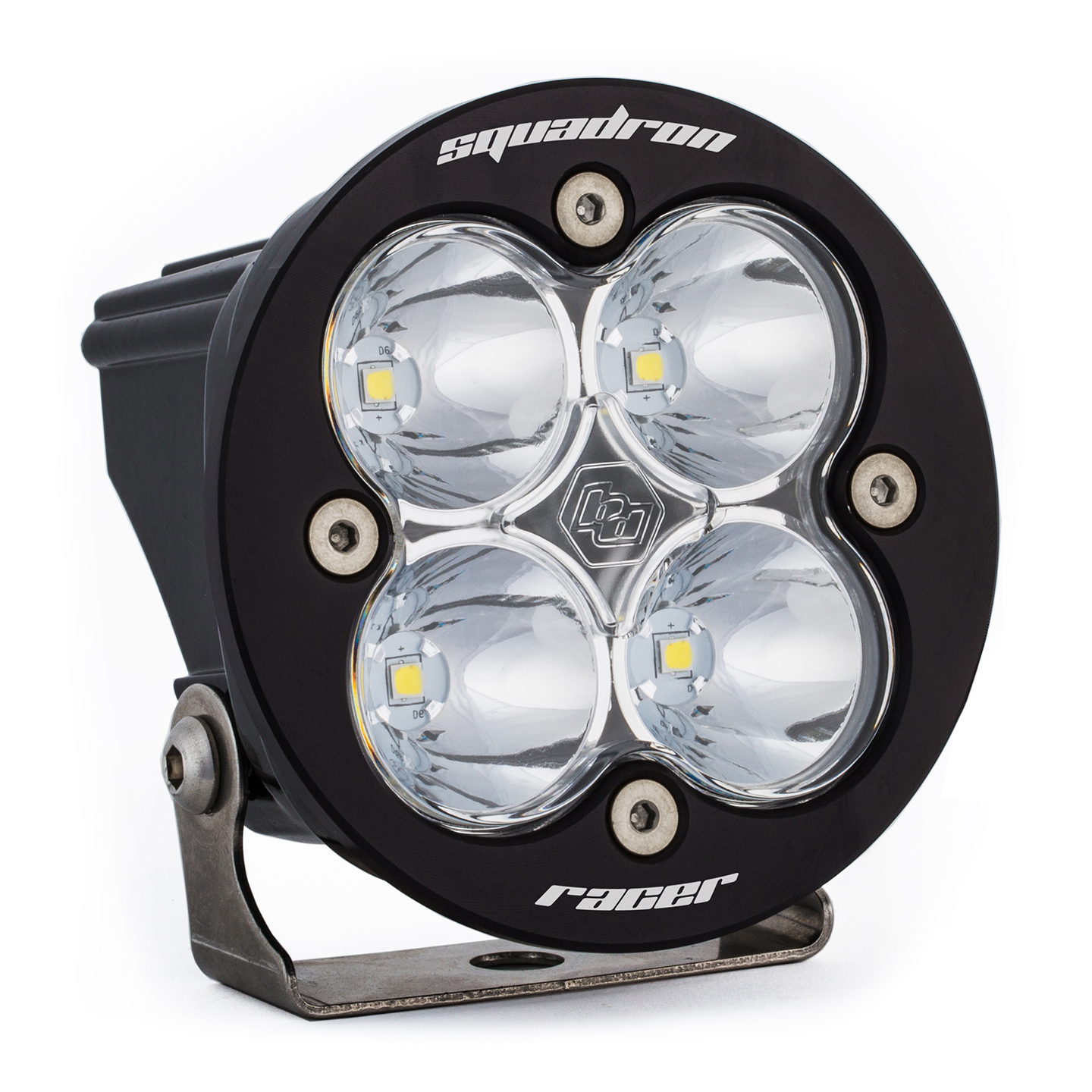

Squadron-R Racer Edition LED Auxiliary Light Pod
Manufacturer: Baja Designs
Manufacturer part number: 730001
$269.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

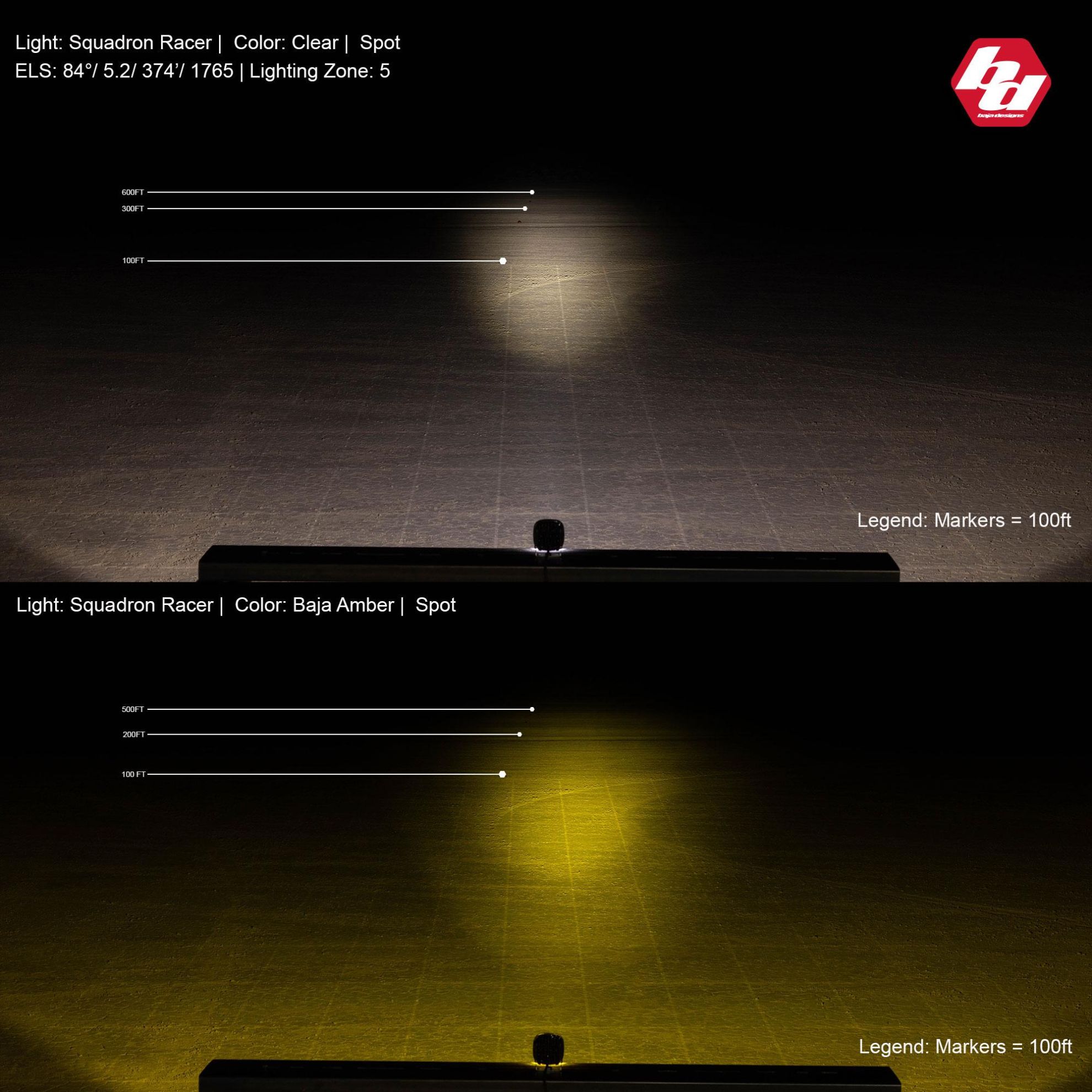

The Baja Designs Squadron Racer Edition LED lights are meant for high-speed night driving where reaction time is paramount. Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45.5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model. The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5. Producing an even tighter beam pattern than our traditional spot offerings, the Squadron Racer Edition lights are recommended to be added to a well-balanced lighting package to avoid separation of spotlights due to the tight pattern. The sleek, black gloss aluminum housing offers enthusiasts the durability needed when traveling at higher speeds. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.

Note: One Light Pod

Products specifications

Attribute name Attribute value
Prop 65 Warning Label Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No Yes
Prop 65 - Short Label CR
Weight (lbs.) 0.75
Light Quantity 1
Depth (in.) 2.77
Brightness (Lumens) 2800
Height (in.) 3.07
Length (in.) 3.07
Amperage Rating (A) 3.3
Lighting Quantity 4
Wattage (W) 45.54
Average Rated Life (hr.) 49,930
Lighting Modes Beam
Housing Color Black
Overvoltage Protection Built-In
Lens Color Clear
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Lighting Type Forward Projecting
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Lighting Technology High Intensity Cree LED
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Wiring Harness Included No
Beam Pattern Racer Spot
Description Round; Racer Spot; Clear
Product Type Squadron-R Racer Edition LED Light Pod
Mounting Hardware Material Stainless Steel
Mounting Hardware Included Yes
Bezel Material Powder Coated Cast Aluminum
DES Squadron-R Racer Edition LED Auxiliary Light Pod
EXT Squadron-R Racer Edition LED Light Pod (Racer Spot; Clear)
TLE Squadron-R Racer Edition LED Light Pod (Racer Spot; Clear)
Country of Origin US
