Baja Designs Light Bar - 451001

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

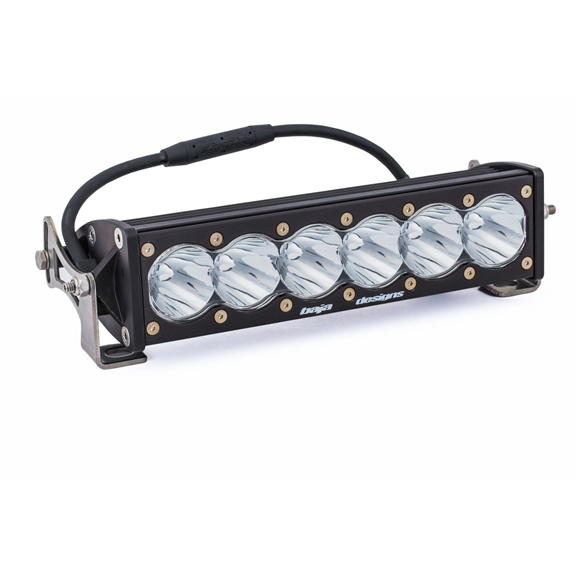

OnX6+ Straight LED Light Bar
Manufacturer: Baja Designs
Manufacturer part number: 451001
$442.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Baja Designs OnX6+ LED light bar is the pinnacle of off-road lighting. Integrating our trademarked high-speed spot reflectors along with our next-generation LED technology for increased performance and versatility with superior efficiency, the OnX6+ is ready to illuminate the trails or take you to the win at the Baja 1000. The OnX6+ is offered in multiple sizes ranging from 10-inch bars providing 10,817 total raw lumens to 50-inch bars that push out 39,430 total raw lumens illuminating lighting zones 1, 2, 3, 4 simultaneously while pushing into zone 5. Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions. Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology. Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: Wiring harness not included. Please use 640115 = OnX6+ 10-20in. 640119 = OnX6+ 30-50in. NOTE: * 50in OnX6+ doesNOThave a Hi-Lo Function, The light bar is pre-dimmed.

Note: One Light Bar

Products specifications

Attribute name Attribute value
Prop 65 Warning Label Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No Yes, No
Prop 65 - Short Label CR, prop65_warning.jpg
Light Quantity 1
Length (in.) 10
Brightness (Lumens) 10,817 (High); 9,230 (Low)
Wattage (W) 106.260
Height (in.) 2.690
Weight (lbs.) 4.250
Depth (in.) 4.290
Average Rated Life (hr.) 49,930
Lighting Quantity 6
Amperage Rating (A) 7.700
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Bezel Material Billet Machined Aluminum
Housing Color Black
Overvoltage Protection Built-In
Lens Color Clear
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Lighting Type Forward Projecting
Lens Material Hardcoated Polycarbonate
Wiring Harness Description Hi-Low Dongle
Lighting Modes High Beam/Low Beam
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Lighting Technology LED
Mounting Hardware Description Mounting Brackets
Wiring Harness Included No
Product Type OnX6+ 10 Inch LED Light Bar
Beam Pattern Spot
Mounting Hardware Material Stainless Steel
Description Straight; Spot; Clear
Universal or Specific Universal
Mounting Hardware Included Yes
DES OnX6+ Straight LED Light Bar
EXT OnX6+ Straight LED Light Bar (10 Inch; Spot; Clear)
TLE OnX6+ Straight LED Light Bar (10 Inch; Spot; Clear)
Sold As Pair
Color Black Powder Coated
Material Aluminum
Prop 65 (C, R or CR) CR
Country of Origin US
Quantity per Application 2
