Baja Designs Light Bar - 524003WT

Name: Baja Designs Light Bar - 524003WT
SKU: 524003WT
Price: 1956.95 USD
Availability: OutOfStock

OnX6 White Arc LED Light Bar

Manufacturer: Baja Designs

Manufacturer part number: 524003WT

$1,956.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

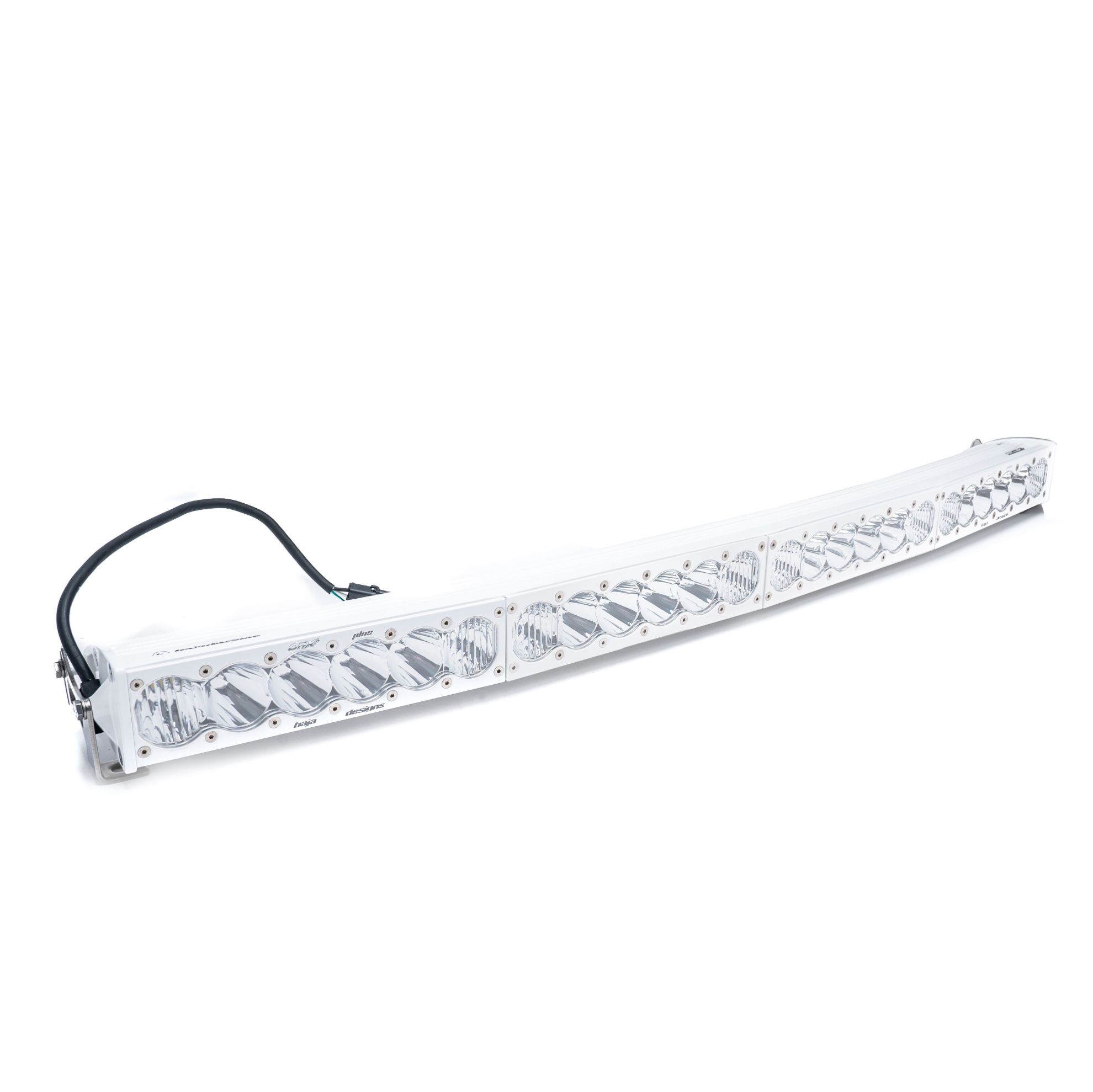

The OnX6+ white LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: One Light Bar

Products specifications

Attribute name	Attribute value
Prop 65 - Short Label	CR
Prop 65 Warning Label	Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No	Yes
Light Quantity	1
Weight (lbs.)	15.05
Height (in.)	2.69
Lighting Quantity	24
Amperage Rating (A)	26.8 (High); 22.4 (Low)
Wattage (W)	340 (High); 284 (Low)
Brightness (Lumens)	39,220 (high); 32,760 (Low)
Depth (in.)	4.29
Length (in.)	40
Average Rated Life (hr.)	49,930
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Description	Arc; Driving/Combo; Clear
Bezel Material	Billet Machined Aluminum
Overvoltage Protection	Built-In
Lens Color	Clear
Beam Pattern	Driving/Combo
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Lighting Type	Forward Projecting
Lens Material	Hardcoated Polycarbonate
Wiring Harness Description	Hi-Low Dongle
Lighting Modes	High Beam/Low Beam
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Lighting Technology	LED
Mounting Hardware Description	Mounting Brackets
Wiring Harness Included	No
Product Type	OnX6+ 40 Inch Arc LED Light Bar
Mounting Hardware Material	Stainless Steel
Universal or Specific	Universal
Housing Color	White
Mounting Hardware Included	Yes
DES	OnX6 White Arc LED Light Bar
EXT	OnX6 White Arc LED Light Bar (40 Inch; Driving/Combo; Clear)
TLE	OnX6 White Arc LED Light Bar (40 Inch; Driving/Combo; Clear)
Country of Origin	US
