BBC 502 Domed Piston Set 4.600 Bore +46cc

Name: BBC 502 Domed Piston Set 4.600 Bore +46cc
SKU: 243331
Price: 1117.01 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 243331

Old price: $1,259.99

Price: $1,117.01

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

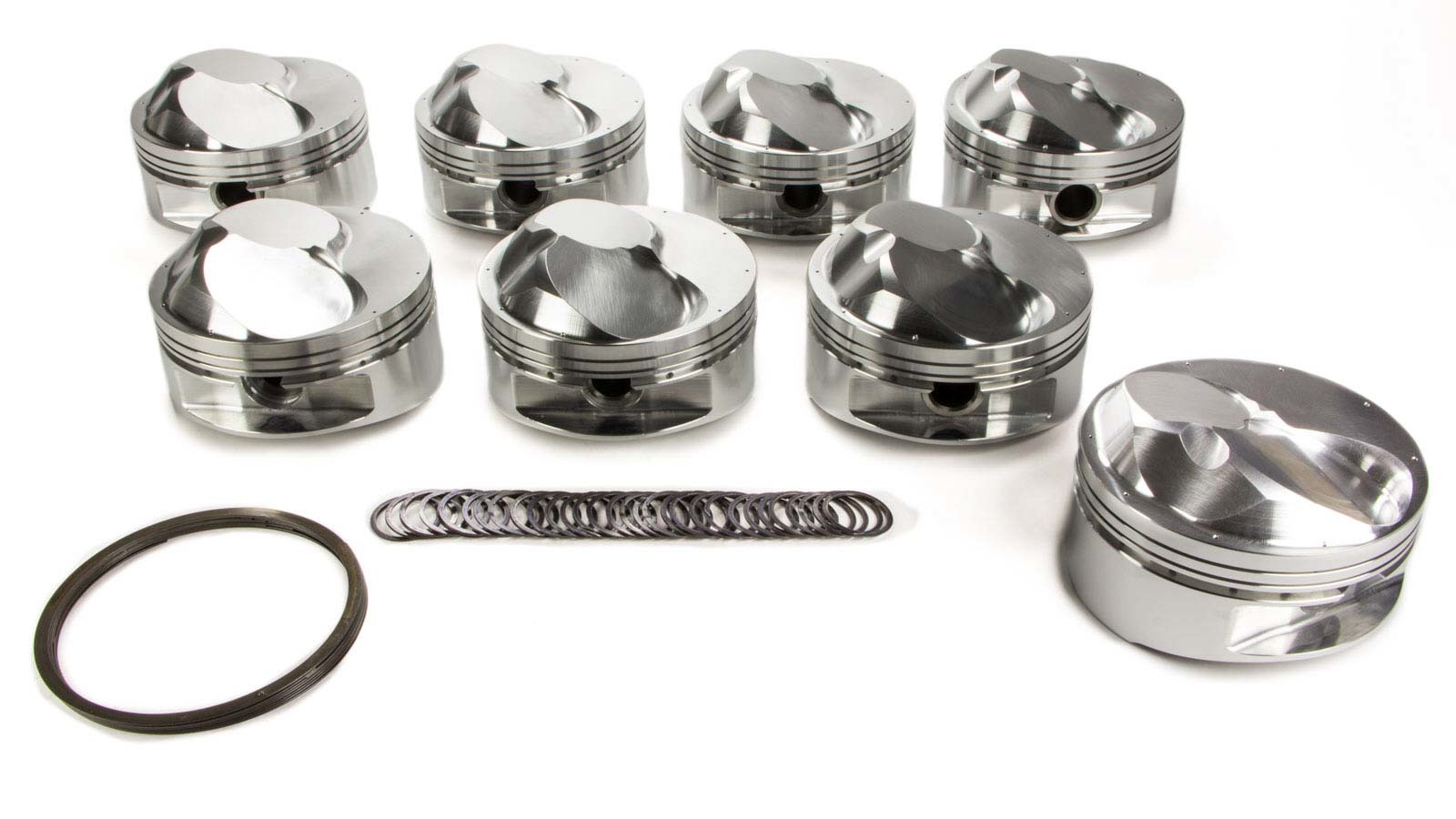

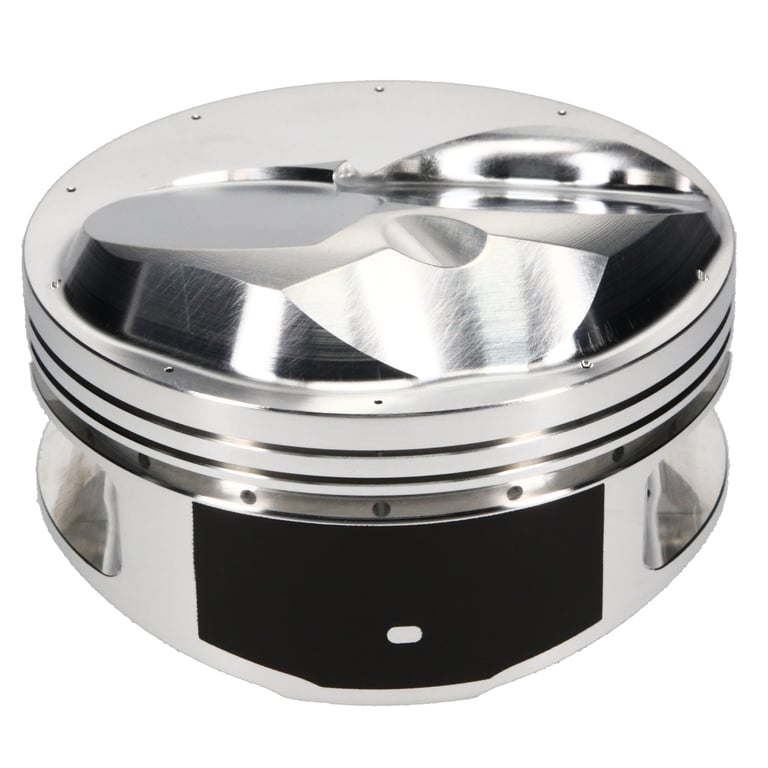

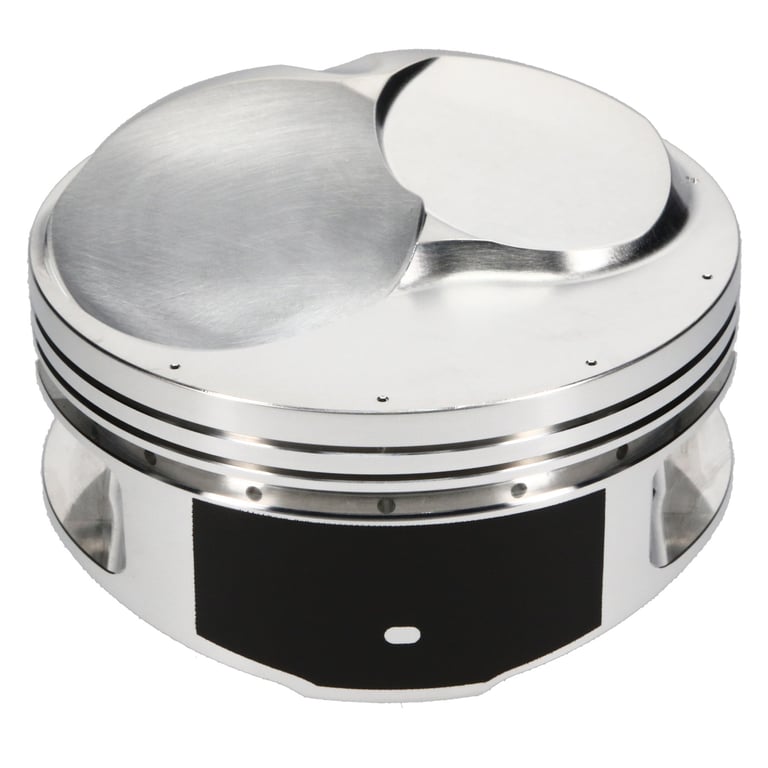

Piston - Forged - Dome - 4.600 in Bore - 1.120 in Compression Height - 0.043 x 0.043 x 3 mm Ring Grooves - Plus 46.00 cc - Big Block Chevy - Set of 8

Manufacturer Part #: 243331

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.600
Sub Type	Forged
Piston Head Type	Dome
Compression Height	1.120
Unit	Set of 8
Piston Volume	46.00
Material	2618
Piston Quantity	8
Specifications	Dome, 4.600 in Bore, 1.120 in Compression Height, 0.043 x 0.043 x 3 mm Ring Grooves, Plus 46.00 cc, Big Block Chevy
Forging Type	Round
Piston Average Weight	592
Ring Set Included	No
Top Compression Ring Thickness	0.0435
Second Compression Ring Thickness	0.0440
Oil Ring Thickness	0.149
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.180
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.600 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
