BBC Dome Piston Set 4.530 Bore +22.3cc

Name: BBC Dome Piston Set 4.530 Bore +22.3cc
SKU: 296989
Price: 1117.01 USD
Availability: OutOfStock

Manufacturer: JE Pistons

Manufacturer part number: 296989

Old price: $1,259.99

Price: $1,117.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

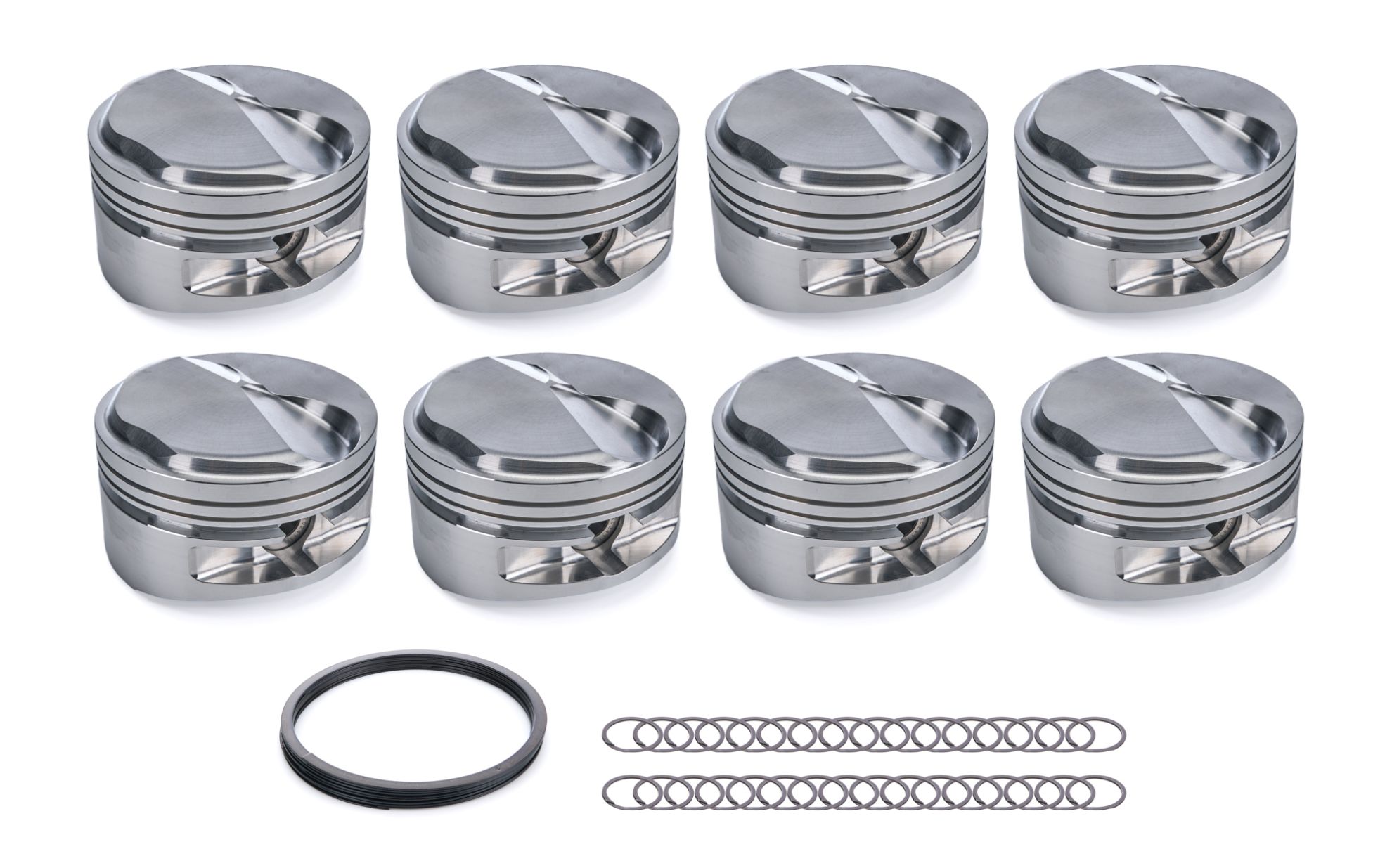

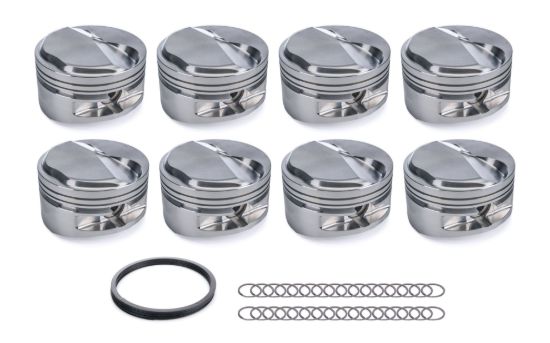

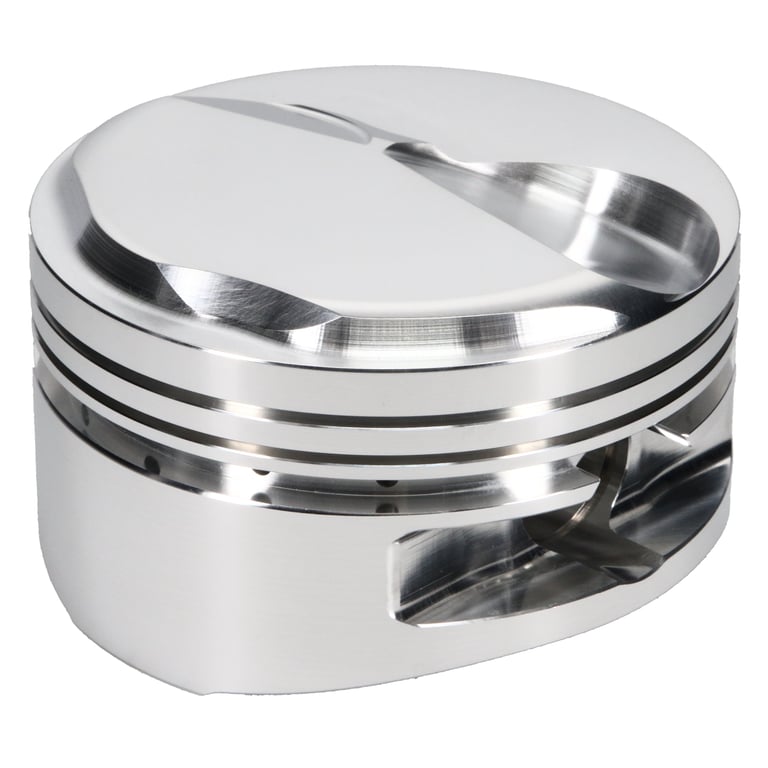

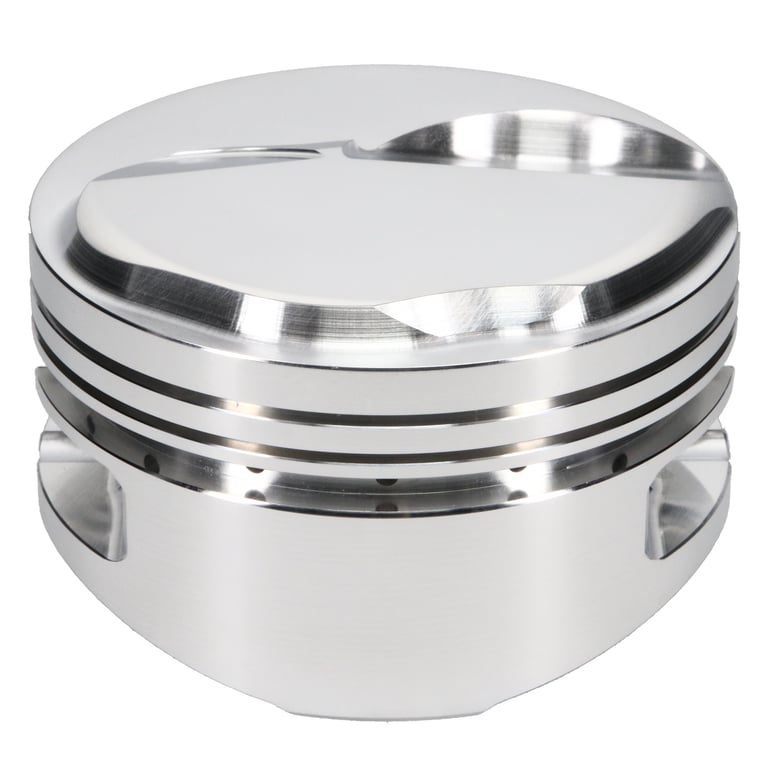

Piston - Forged - Dome - 4.530 in Bore - 1.270 in Compression Height - 0.075 x 0.064 x 0.218 in Ring Grooves - Plus 22.30 cc - Big Block Chevy - Set of 8

Note: 1.270 CH

Manufacturer Part #: 296989

Products specifications

Attribute name	Attribute value
Oil Ring Thickness	0.218
Wrist Pin Outer Diameter	0.990
Product Type	Piston, Engine Piston Kit
Wrist Pin Length	2.930
Sub Type	Forged
Wrist Pin Wall Thickness	0.200
Unit	Set of 8
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Specifications	Dome, 4.530 in Bore, 1.270 in Compression Height, 0.075 x 0.064 x 0.218 in Ring Grooves, Plus 22.30 cc, Big Block Chevy
Bore Diameter	4.530
Second Compression Ring Thickness	0.0640
Piston Head Type	Dome
Compression Height	1.270
Piston Volume	22.30
Material	2618
Piston Quantity	8
Forging Type	Round
Piston Average Weight	673
Ring Set Included	No
Top Compression Ring Thickness	0.0750
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.530 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
