BBC Dome Piston Set 4.610 Bore +44.0cc

Name: BBC Dome Piston Set 4.610 Bore +44.0cc
SKU: 258202
Price: 1117.01 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 258202

Old price: $1,259.99

Price: $1,117.01

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

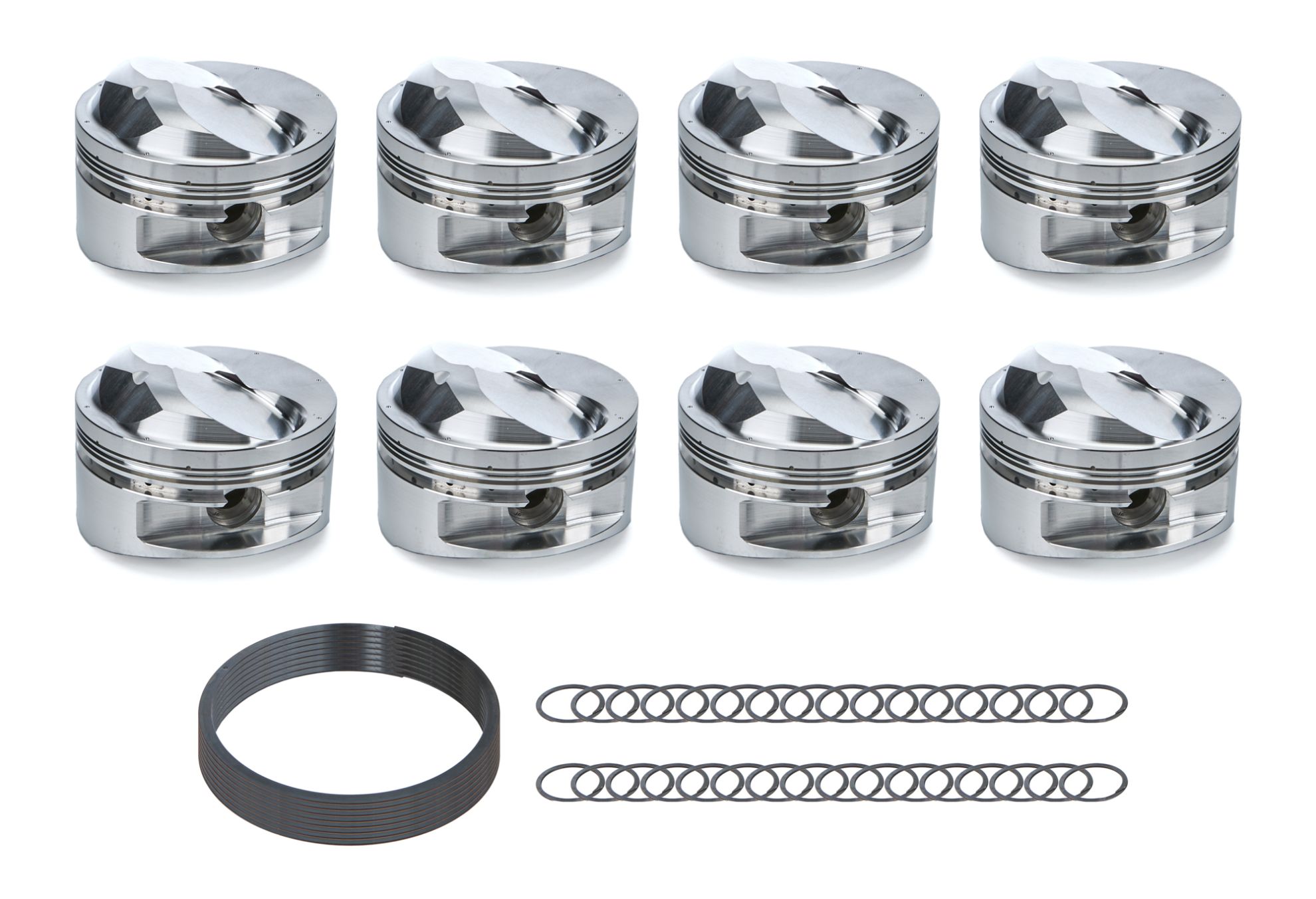

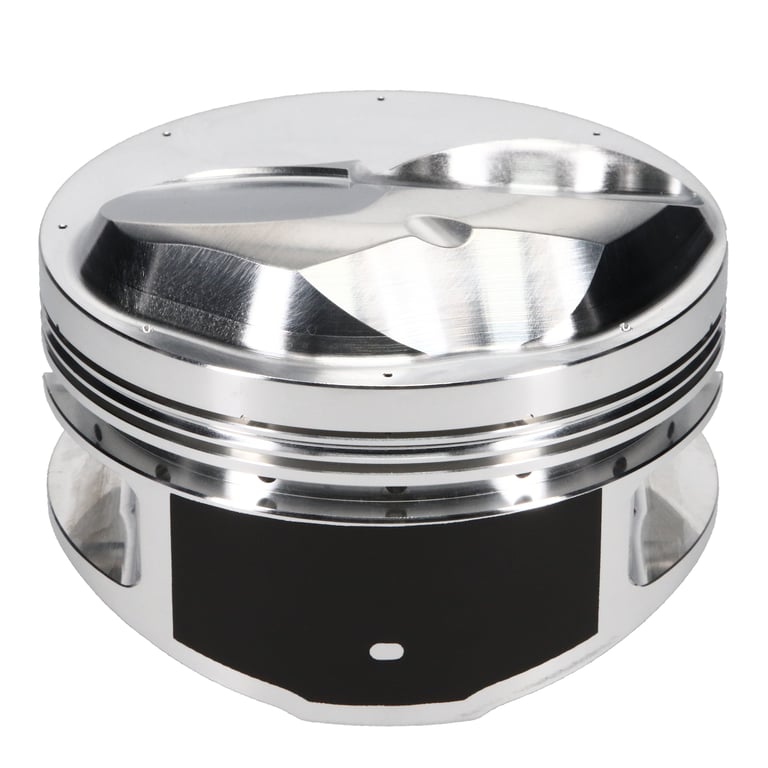

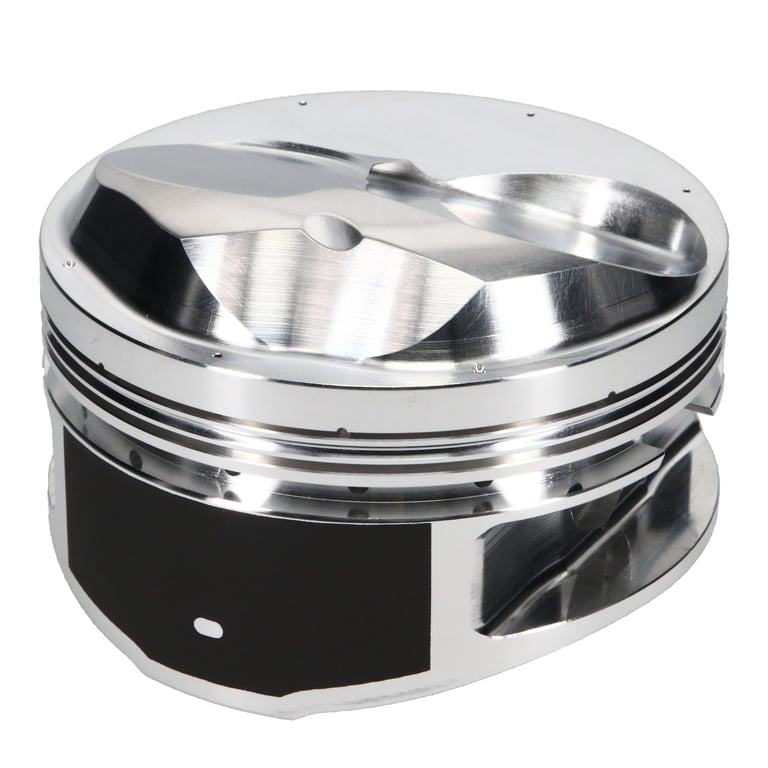

Piston - Forged - Dome - 4.610 in Bore - 1.290 in Compression Height - 0.043 x 0.064 x 0.218 in Ring Grooves - Plus 44.0 cc - Big Block Chevy - Set of 8

Manufacturer Part #: 258202

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.610
Sub Type	Forged
Piston Head Type	Dome
Compression Height	1.290
Unit	Set of 8
Piston Volume	44.00
Material	2618
Piston Quantity	8
Specifications	Dome, 4.610 in Bore, 1.290 in Compression Height, 0.043 x 0.064 x 0.218 in Ring Grooves, Plus 44.0 cc, Big Block Chevy
Forging Type	Round
Piston Average Weight	715
Ring Set Included	No
Top Compression Ring Thickness	0.0435
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.180
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.610 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
