BBC Domed Piston Set 4.350 Bore +43cc

Name: BBC Domed Piston Set 4.350 Bore +43cc
SKU: 258245
Price: 956.37 USD
Availability: OutOfStock

Manufacturer: JE Pistons

Manufacturer part number: 258245

Old price: $1,076.99

Price: $956.37

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

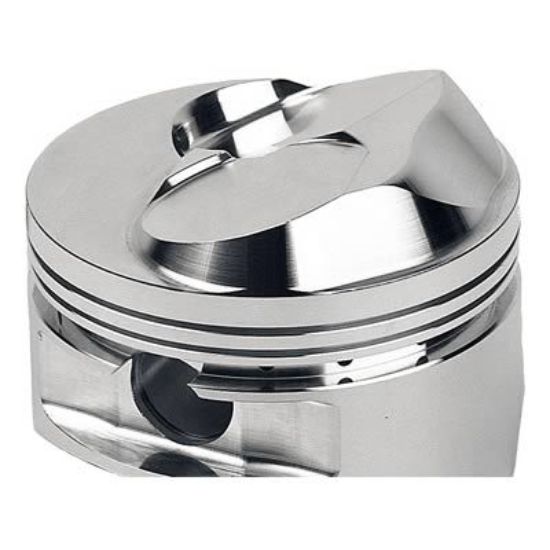

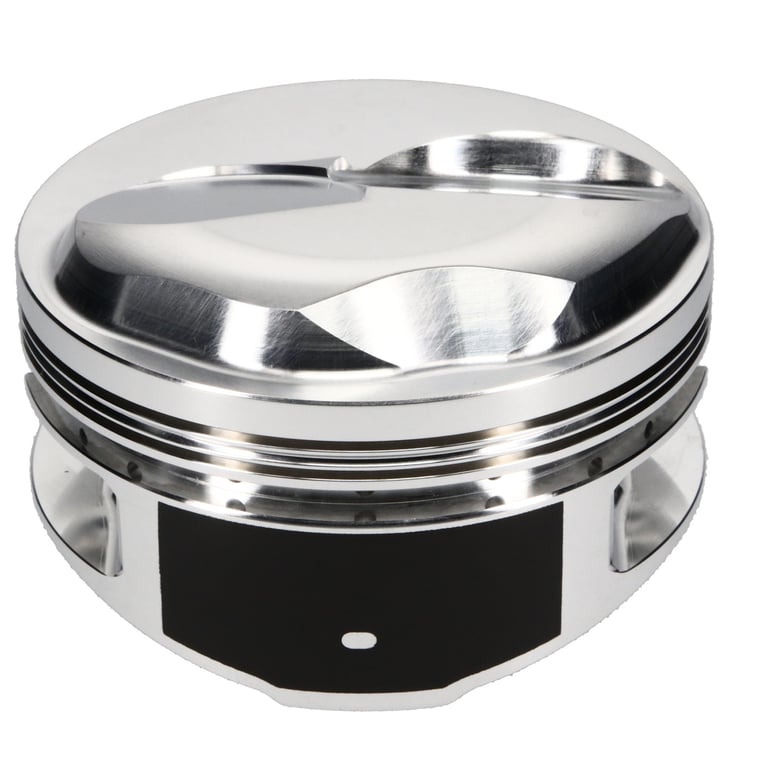

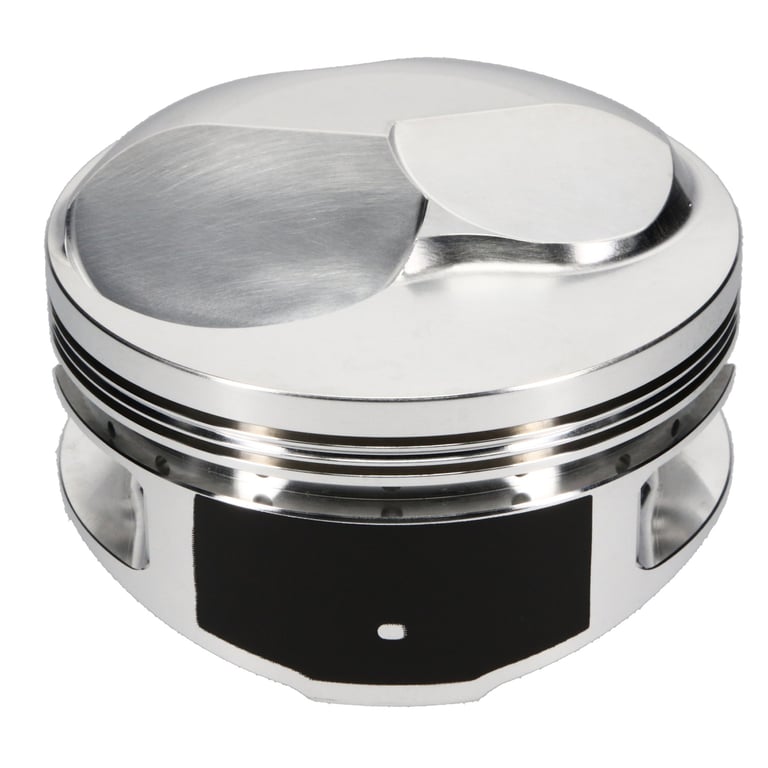

Piston - Big Block Open Chamber Dome - Forged - Dome - 4.350 in Bore - 1.270 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 43.00 cc - Big Block Chevy - Set of 8

Manufacturer Part #: 258245

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.350
Sub Type	Big Block Open Chamber Dome
Piston Head Type	Dome
Compression Height	1.270
Unit	Set of 8
Piston Volume	43.00
Material	2618
Piston Quantity	8
Specifications	Forged, Dome, 4.350 in Bore, 1.270 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 43.00 cc, Big Block Chevy
Forging Type	Round
Piston Average Weight	585
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.350 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
