BBC Domed Piston Set 4.500 Bore +25.3cc

Name: BBC Domed Piston Set 4.500 Bore +25.3cc
SKU: 297814-193801
Price: 1117.01 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 297814

Old price: $1,259.99

Price: $1,117.01

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

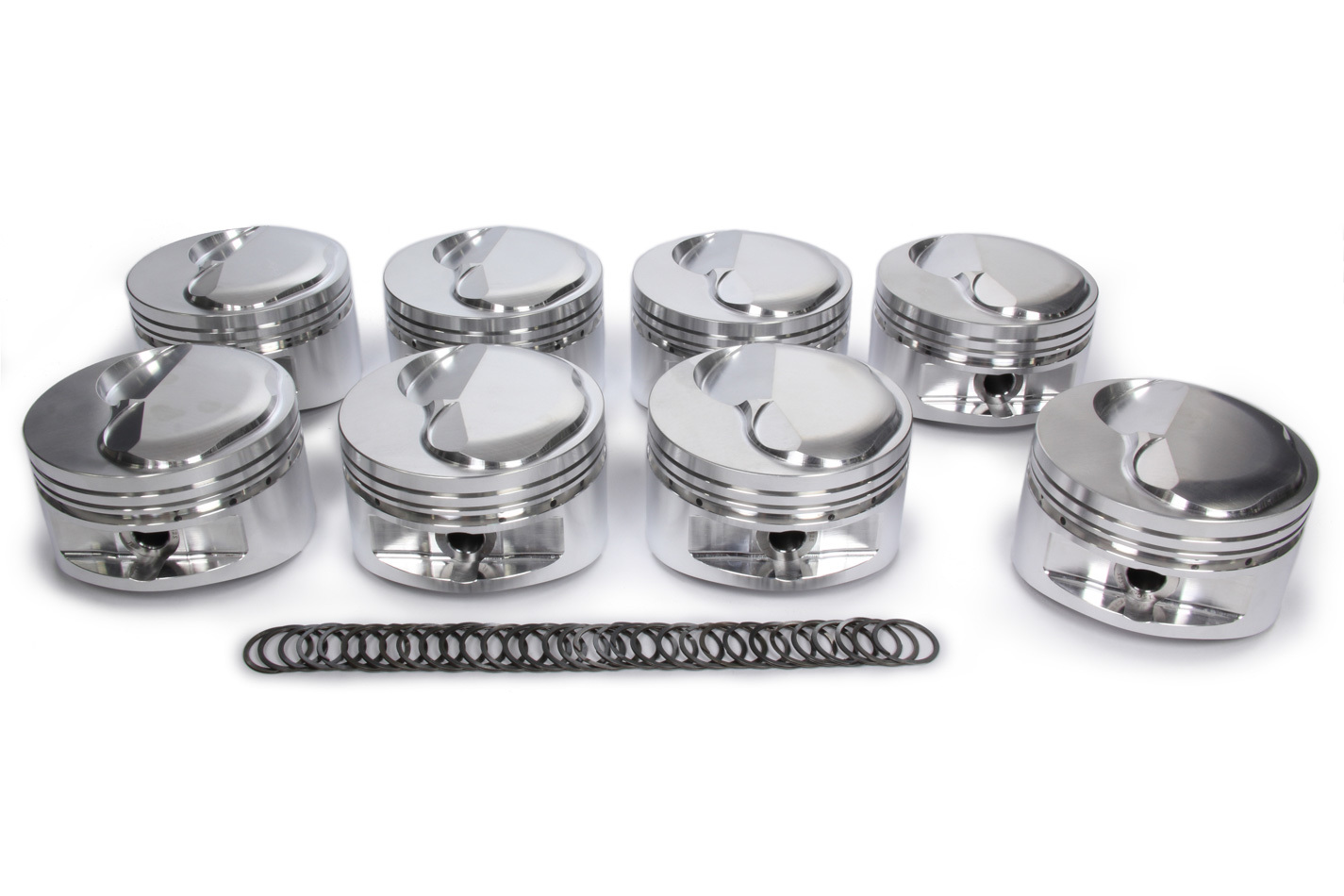

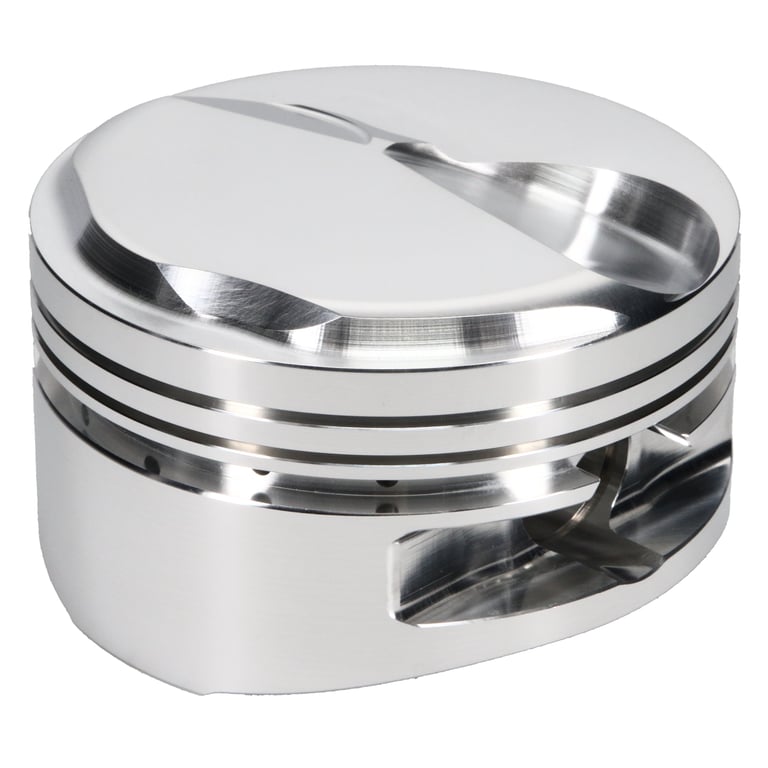

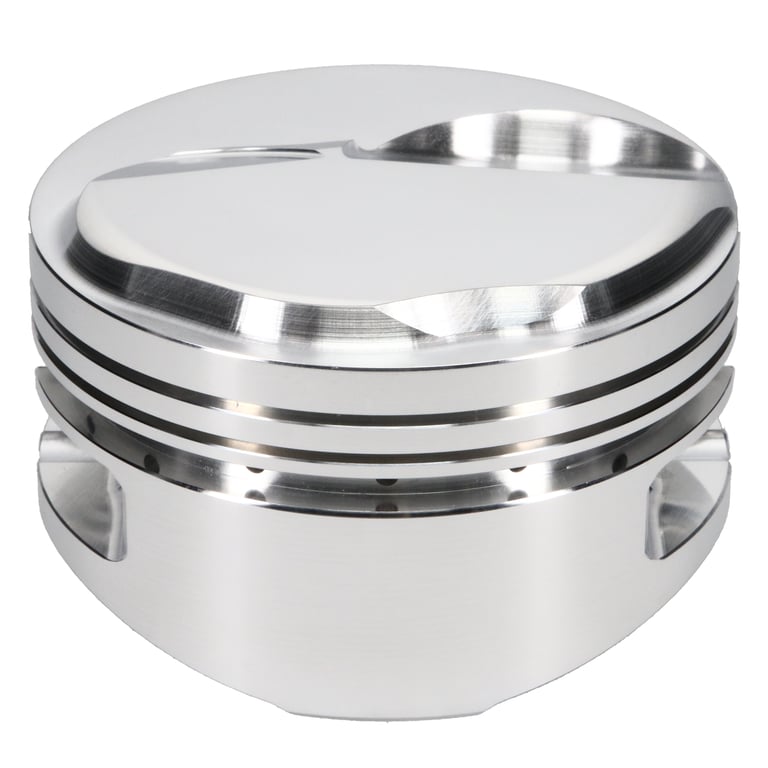

Piston - 541 Inverted Dome - Forged Aluminum - Dome - 4.500 in Bore - 1.520 in Compression Height - 0.017 x 1/16 x 3/16 in Ring Grooves - Plus 25.30 cc - Wrist Pin Included - Big Block Chevy - Set of 8

Manufacturer Part #: 297814

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.500
Sub Type	541 Inverted Dome
Piston Head Type	Dome
Compression Height	1.520
Unit	Set of 8
Piston Volume	25.30
Material	2618
Piston Quantity	8
Specifications	Forged Aluminum, Dome, 4.500 in Bore, 1.520 in Compression Height, 0.017 x 1/16 x 3/16 in Ring Grooves, Plus 25.30 cc, Wrist Pin Included, Big Block Chevy
Forging Type	Round
Piston Average Weight	728
Ring Set Included	No
Top Compression Ring Thickness	0.0750
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.188
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.200
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.500 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
