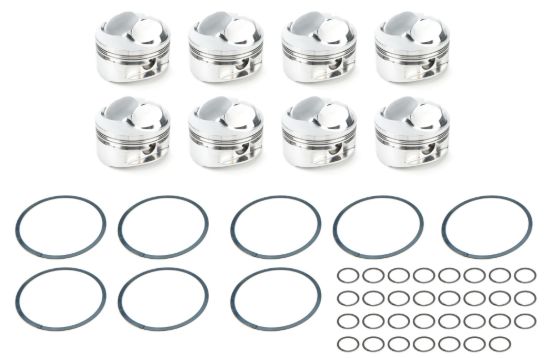

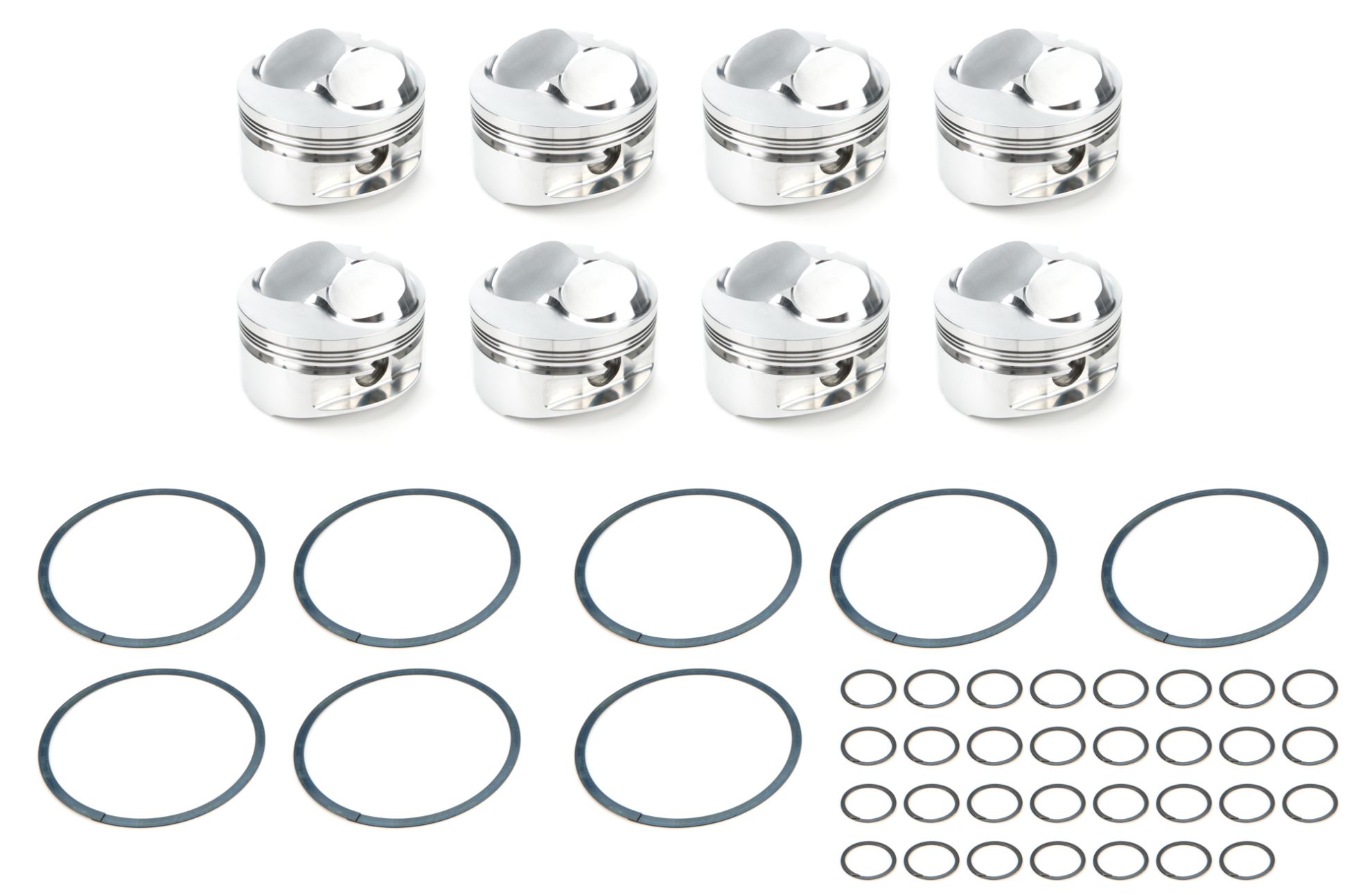

BBC Domed Piston Set 4.500 Bore +45cc

Name: BBC Domed Piston Set 4.500 Bore +45cc
SKU: 258238
Price: 973.93 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 258238

Old price: $1,096.99

Price: $973.93

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$968.43

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

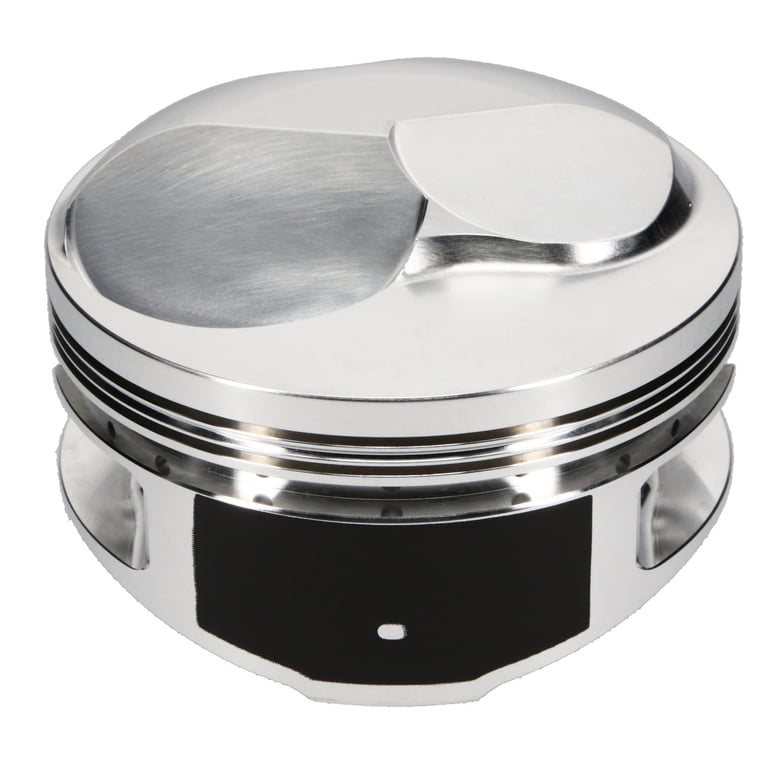

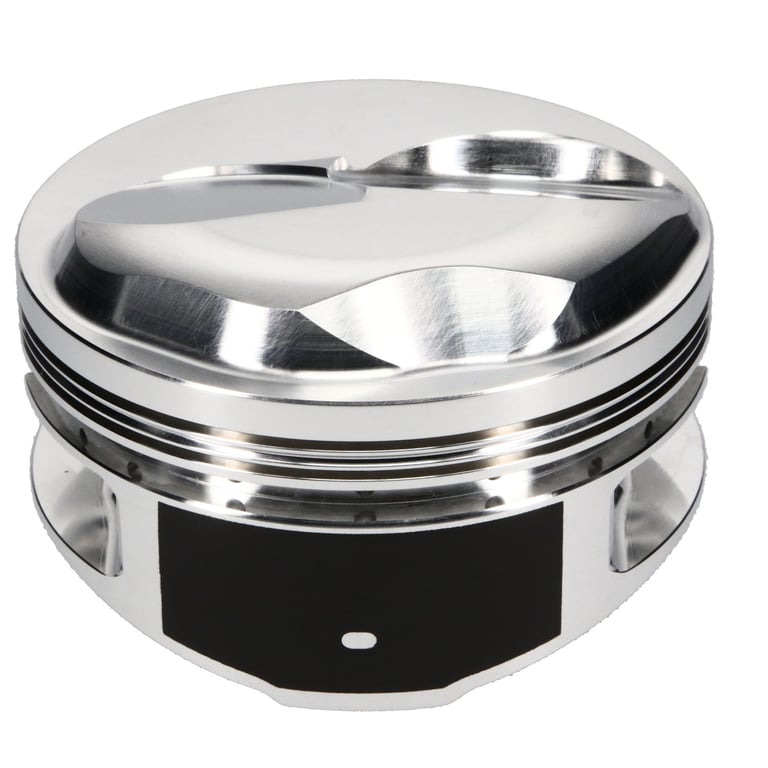

Piston - Big Block Open Chamber Dome - Forged - Dome - 4.500 in Bore - 1.270 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 45.00 cc - Big Block Chevy - Set of 8

Manufacturer Part #: 258238

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.500
Sub Type	Big Block Open Chamber Dome
Piston Head Type	Dome
Compression Height	1.270
Unit	Set of 8
Piston Volume	45.00
Material	2618
Piston Quantity	8
Specifications	Forged, Dome, 4.500 in Bore, 1.270 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 45.00 cc, Big Block Chevy
Forging Type	Round
Piston Average Weight	642
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.180
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.500 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
