BBC Domed Piston Set 4.560 Bore +45cc

Name: BBC Domed Piston Set 4.560 Bore +45cc
SKU: 258240
Price: 973.93 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 258240

Old price: $1,096.99

Price: $973.93

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

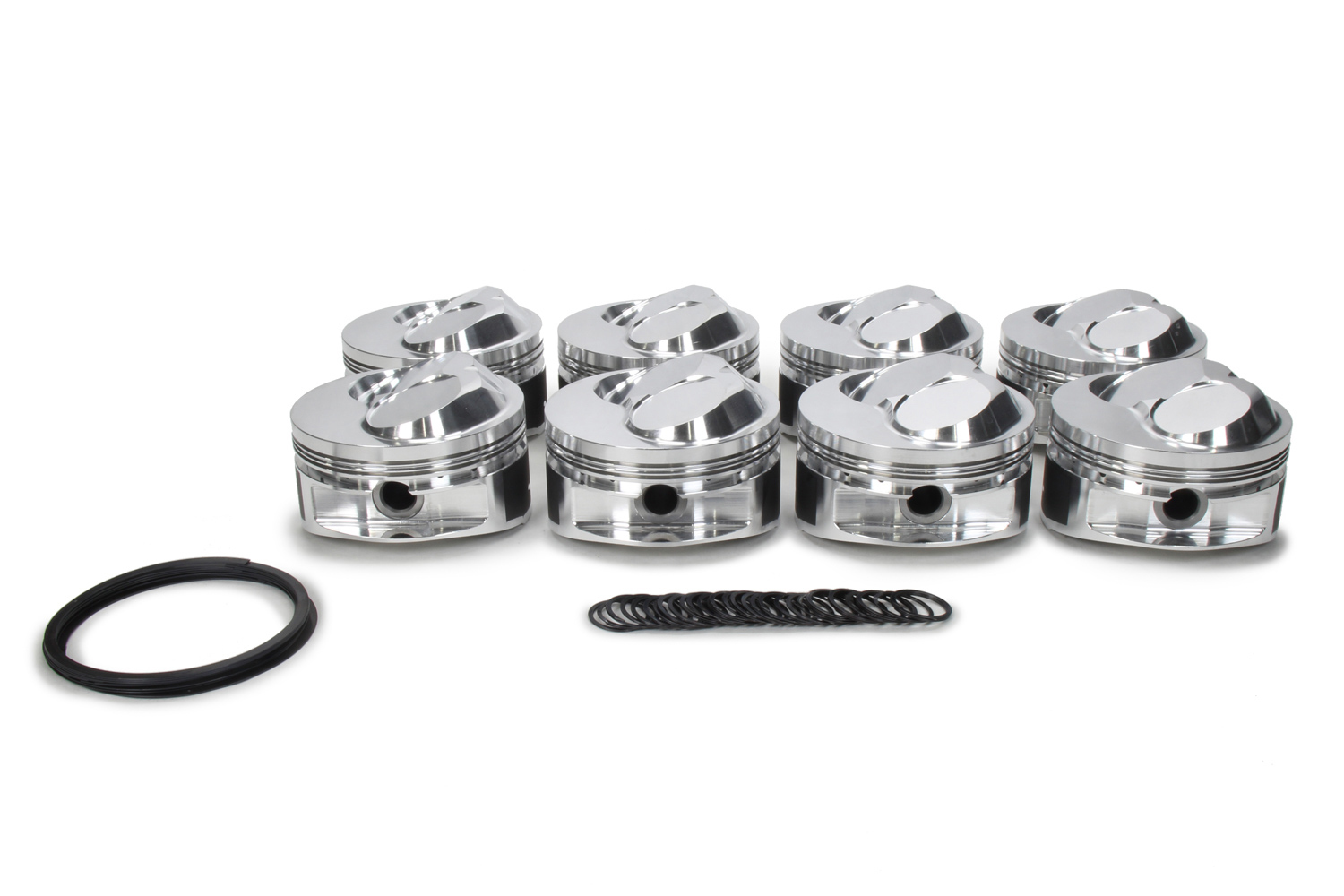

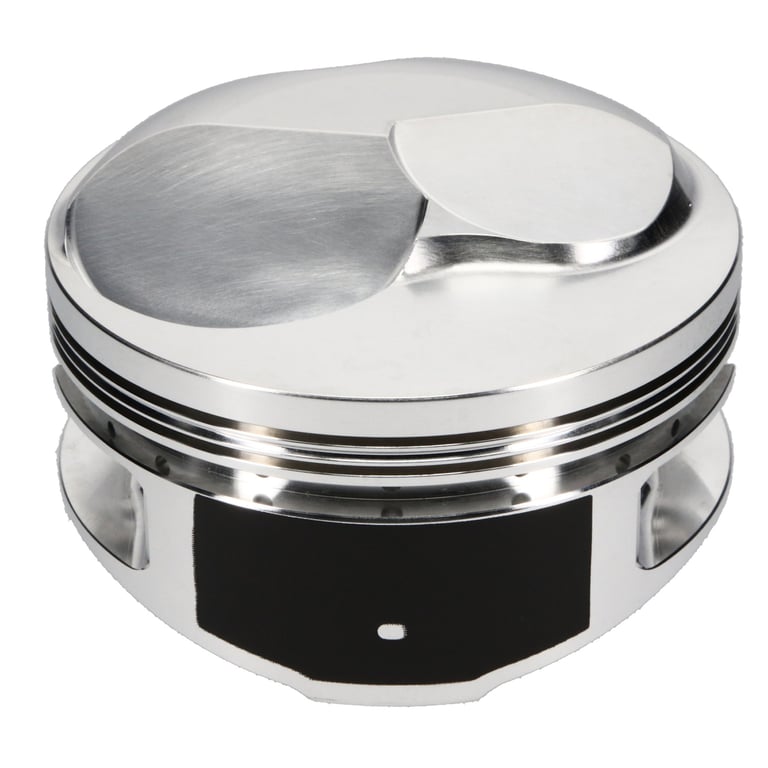

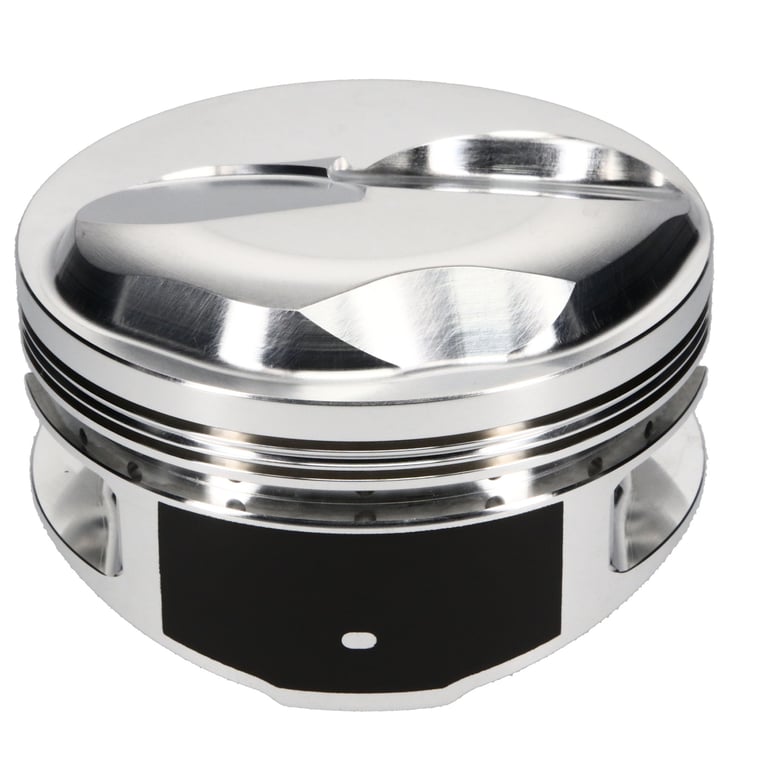

Piston - Big Block Open Chamber Dome - Forged - Dome - 4.560 in Bore - 1.270 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 45.00 cc - Big Block Chevy - Set of 8

Manufacturer Part #: 258240

Products specifications

Attribute name	Attribute value
Bore Diameter	4.560
Piston Head Type	Dome
Product Type	Piston, Engine Piston Kit
Compression Height	1.270
Sub Type	Big Block Open Chamber Dome
Piston Volume	45.00
Material	2618
Unit	Set of 8
Piston Quantity	8
Forging Type	Round
Piston Average Weight	664
Specifications	Forged, Dome, 4.560 in Bore, 1.270 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 45.00 cc, Big Block Chevy
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.180
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.560 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
