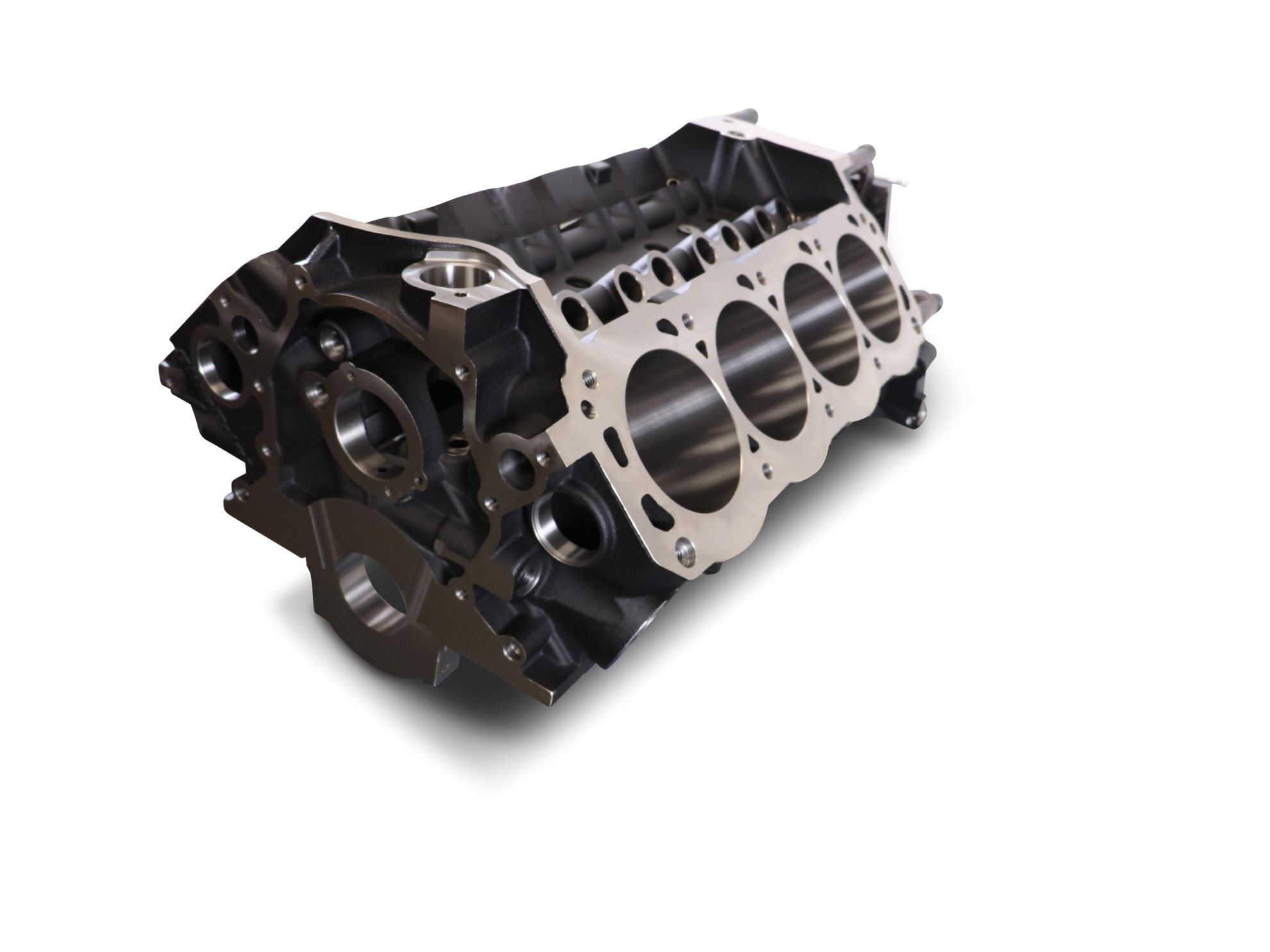

BBC Engine Block 2PC 10.200 Deck 4.250 Bore

Name: BBC Engine Block 2PC 10.200 Deck 4.250 Bore
SKU: BPP12110333
Price: 4524.92 USD
Availability: OutOfStock

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110333

Old price: $4,799.99

Price: $4,524.92

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+
Price	$4,478.17	$4,454.80

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engine - Bare Block - 4.250 in Bore - 10.200 in Deck - 4 Bolt Main - 2-Piece Seal - Billet Steel Main Caps - Cast Iron - Natural - Big Block Chevy - Each

Manufacturer Part #: BPP12110333

Products specifications

Attribute name	Attribute value
Oil Pump	OEM
Oil Filter	OEM
Product Type	Engine
Oil Pan	OEM (GEN IV)
Material	Cast Iron
Sub Type	Bare Block
Rear Main Seal	2 piece Seal (OEM GEN IV)
Finish	Natural
Starter	OEM
Unit	Each
Stroke (Max)	4.750"
Timing Cover	OEM GEN IV
Weight With Main Caps	250-270lbs
Specifications	4.250 in Bore, 10.200 in Deck, 4 Bolt Main, 2-Piece Seal, Billet Steel Main Caps, Big Block Chevy
Quantity	Sold Individually
Cubic Inch (Max)	632
Cylinder Wall Thickness	.310" Nominal @ Max Bore
Cylinder Skirt Length	6.700" Nominal
Deck Height	10.200" +.005" / -.000"
Deck Thickness:	.710" Nominal
Freeze / Core Plugs	1-5/8" x 8
Head Bolt/Stud Threads	7/16-14 UNC
Lifter Bores	.8437" +/- .0003"
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Main Bearing Bore (Line Honed)	2.937" - 2.938"
Main Bearing Caps	Billet Steel
Main Cap Bolts	1/2"-13
Main Fastener Tensile Strength	180,000 to 210,000 PSI
P1 Main Stude Kit P/N	TBD
Arp Main Stud Kit P/N	TBD
Material (Block)	EN-GJL-250 Iron
Oil System	Priority Main
Prop 65 Y/N Flag	Yes
Cylinder Bore (Rough)	4.245" to 4.247"
Cylinder Bore (Max)	4.630"
Cam Bearing Bore Id	2.120"+/- .001"
Cam Bearings	Durabond GM-12
Camshaft Position	OEM
Cam Drive / Timing Set	OEM /Double Roller
Cam Retaining Plate	OEM
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
