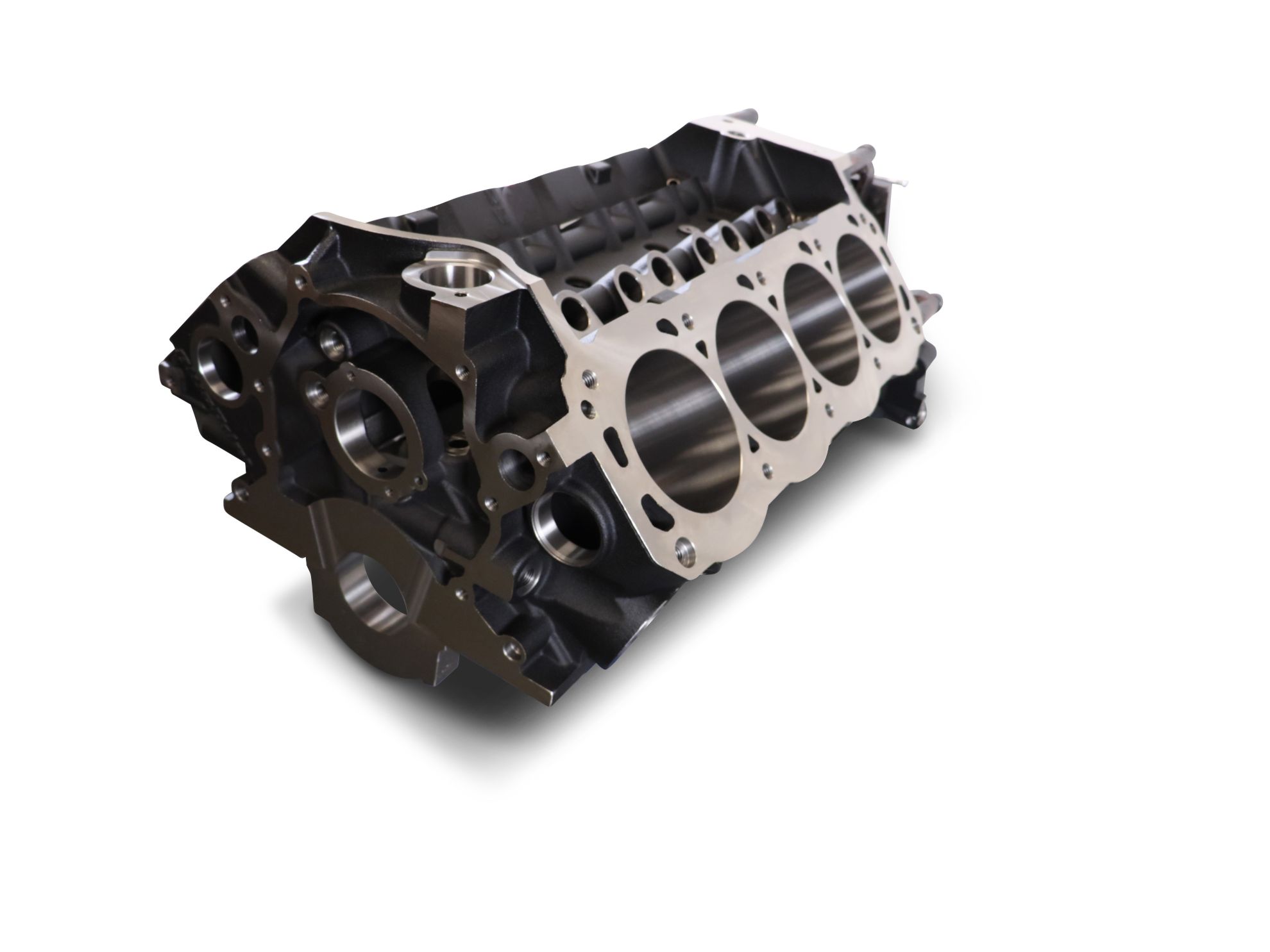

BBC Engine Block 2PC 9.800 Deck 4.250 Bore

Name: BBC Engine Block 2PC 9.800 Deck 4.250 Bore
SKU: BPP12110332
Price: 4524.92 USD
Availability: OutOfStock

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110332

Old price: $4,799.99

Price: $4,524.92

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$4,478.17

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engine - Bare Block - 4.250 in Bore - 9.800 in Deck - 4 Bolt Main - 2-Piece Seal - Billet Steel Main Caps - Cast Iron - Natural - Big Block Chevy - Each

Manufacturer Part #: BPP12110332

Products specifications

Attribute name	Attribute value
Cylinder Bore (Max)	4.630"
Cam Bearing Bore Id	2.120"+/- .001"
Product Type	Engine
Cam Bearings	Durabond GM-12
Material	Cast Iron
Sub Type	Bare Block
Camshaft Position	OEM
Finish	Natural
Cam Drive / Timing Set	OEM /Double Roller
Unit	Each
Cam Retaining Plate	OEM
Cubic Inch (Max)	598
Cylinder Wall Thickness	.310" Nominal @ Max Bore
Specifications	4.250 in Bore, 9.800 in Deck, 4 Bolt Main, 2-Piece Seal, Billet Steel Main Caps, Big Block Chevy
Cylinder Skirt Length	6.300" Nominal
Deck Height	9.800" +.005" / -.000"
Deck Thickness:	.710" Nominal
Freeze / Core Plugs	1-5/8" x 8
Head Bolt/Stud Threads	7/16-14 UNC
Lifter Bores	.8437" +/- .0003"
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Main Bearing Bore (Line Honed)	2.937" - 2.938"
Main Cap Bolts	1/2"-13
Oil Filter	OEM
Rear Main Seal	2 piece Seal (OEM GEN IV)
Starter	OEM
Stroke (Max)	4.750"
Timing Cover	OEM GEN IV
Weight With Main Caps	240-260lbs
Quantity	Sold Individually
Prop 65 Y/N Flag	Yes
Main Bearing Caps	Billet Steel
Cylinder Bore (Rough)	4.245" to 4.247"
Oil Pan	OEM (GEN IV)
Main Fastener Tensile Strength	180,000 to 210,000 PSI
P1 Main Stude Kit P/N	TBD
Arp Main Stud Kit P/N	TBD
Material (Block)	EN-GJL-250 Iron
Oil System	Priority Main
Oil Pump	OEM
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
