BBC Flat Top Piston Set

Name: BBC Flat Top Piston Set
SKU: 257965
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 257965

Old price: $1,076.99

Price: $956.37

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$950.88

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

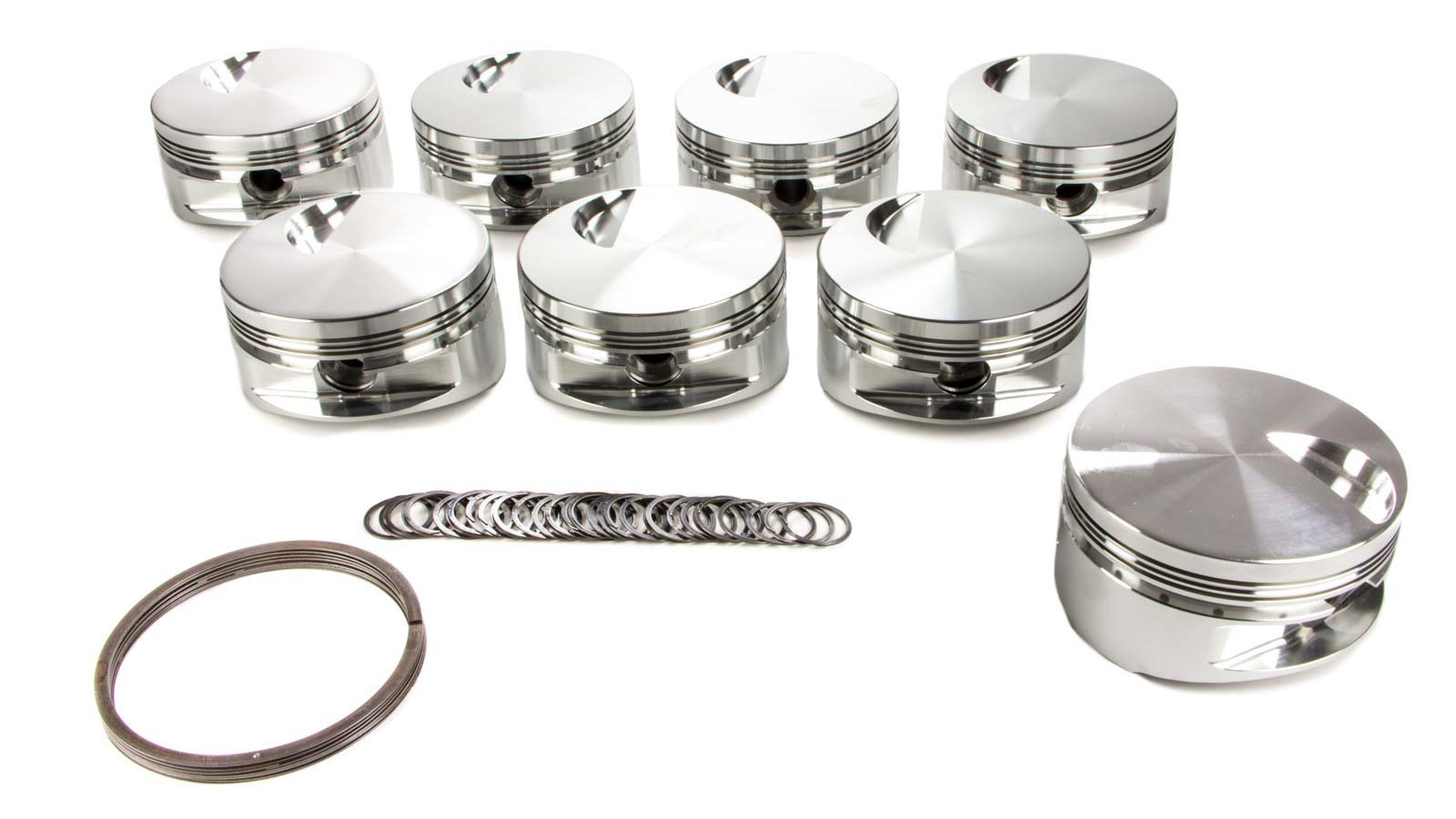

Piston - Big Block Flat Top - Forged - Flat Top - 4.500 in Bore - 1.270 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Minus 3.00 cc - Big Block Chevy - Set of 8

Manufacturer Part #: 257965

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.500
Sub Type	Big Block Flat Top
Piston Head Type	Flat
Compression Height	1.270
Unit	Set of 8
Piston Volume	3.00
Material	2618
Piston Quantity	8
Specifications	Forged, Flat Top, 4.500 in Bore, 1.270 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Minus 3.00 cc, Big Block Chevy
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Ring Set Included	No
Piston Average Weight	623
Forging Type	Round
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Wall Thickness	0.180
Wrist Pin Length	2.930
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.500 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
