BBC Flat Top Piston Set 4.500 Bore -3cc

Name: BBC Flat Top Piston Set 4.500 Bore -3cc
SKU: 257984
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 257984

Old price: $1,076.99

Price: $956.37

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

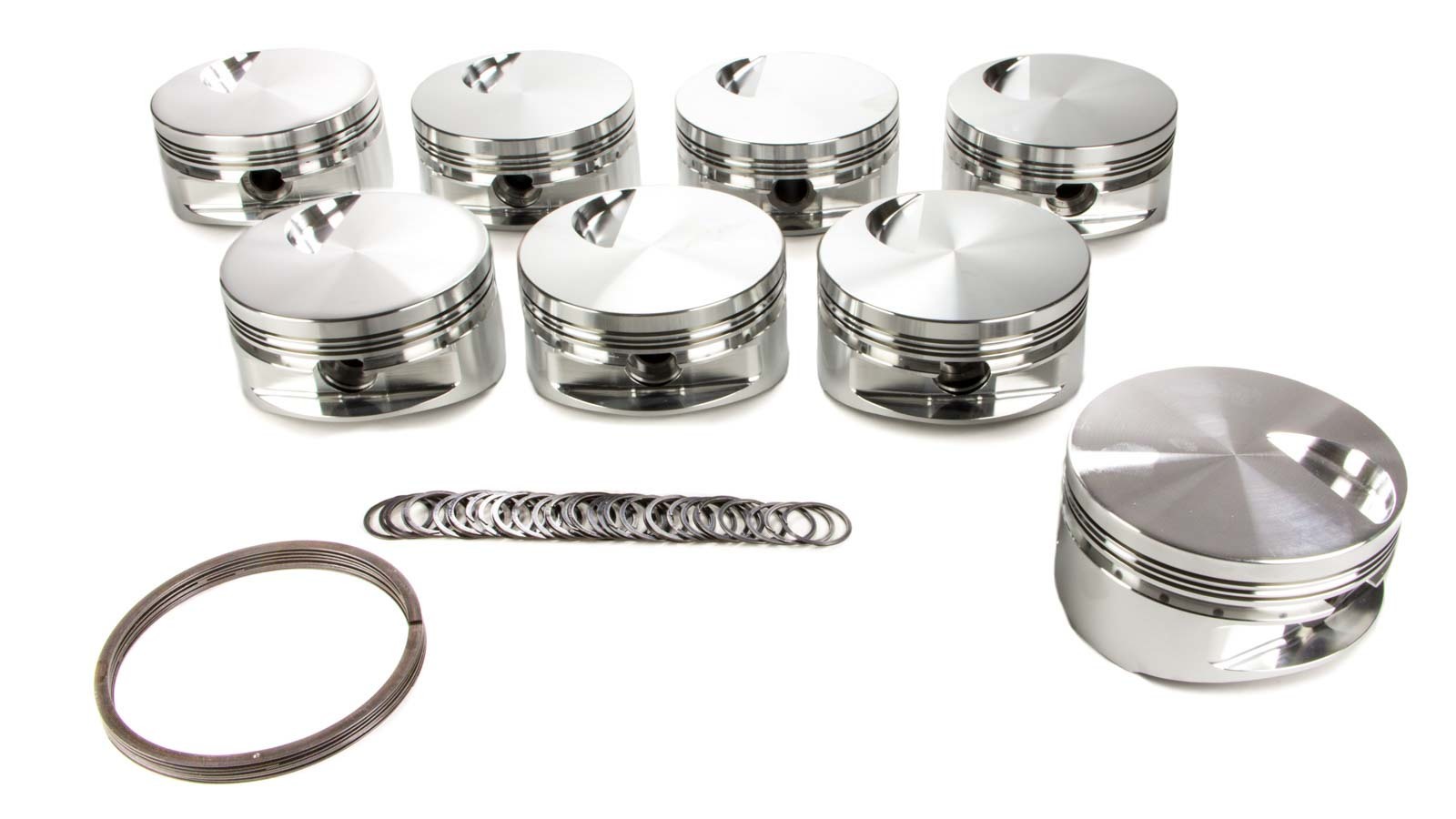

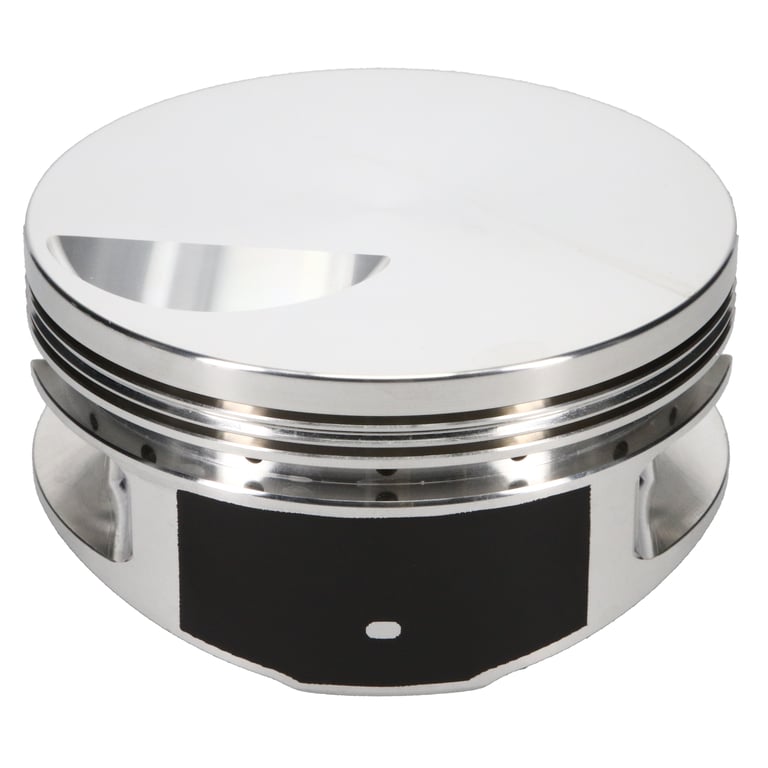

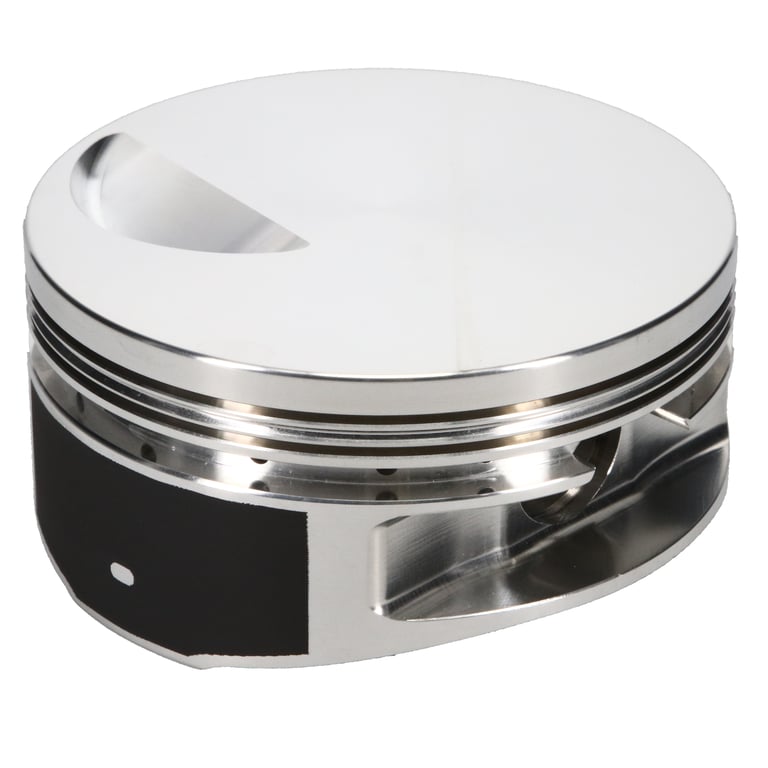

Piston - Big Block Flat Top - Forged - Flat Top - 4.500 in Bore - 1.645 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Minus 3.00 cc - Big Block Chevy - Set of 8

Manufacturer Part #: 257984

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	OPEN CHAMBER
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.500
Sub Type	Big Block Flat Top
Piston Head Type	Flat
Compression Height	1.645
Unit	Set of 8
Piston Volume	3.00
Material	2618
Piston Quantity	8
Specifications	Forged, Flat Top, 4.500 in Bore, 1.645 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Minus 3.00 cc, Big Block Chevy
Forging Type	Round
Piston Average Weight	696
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.188
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.990
Wrist Pin Length	2.930
Wrist Pin Wall Thickness	0.180
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.500 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
