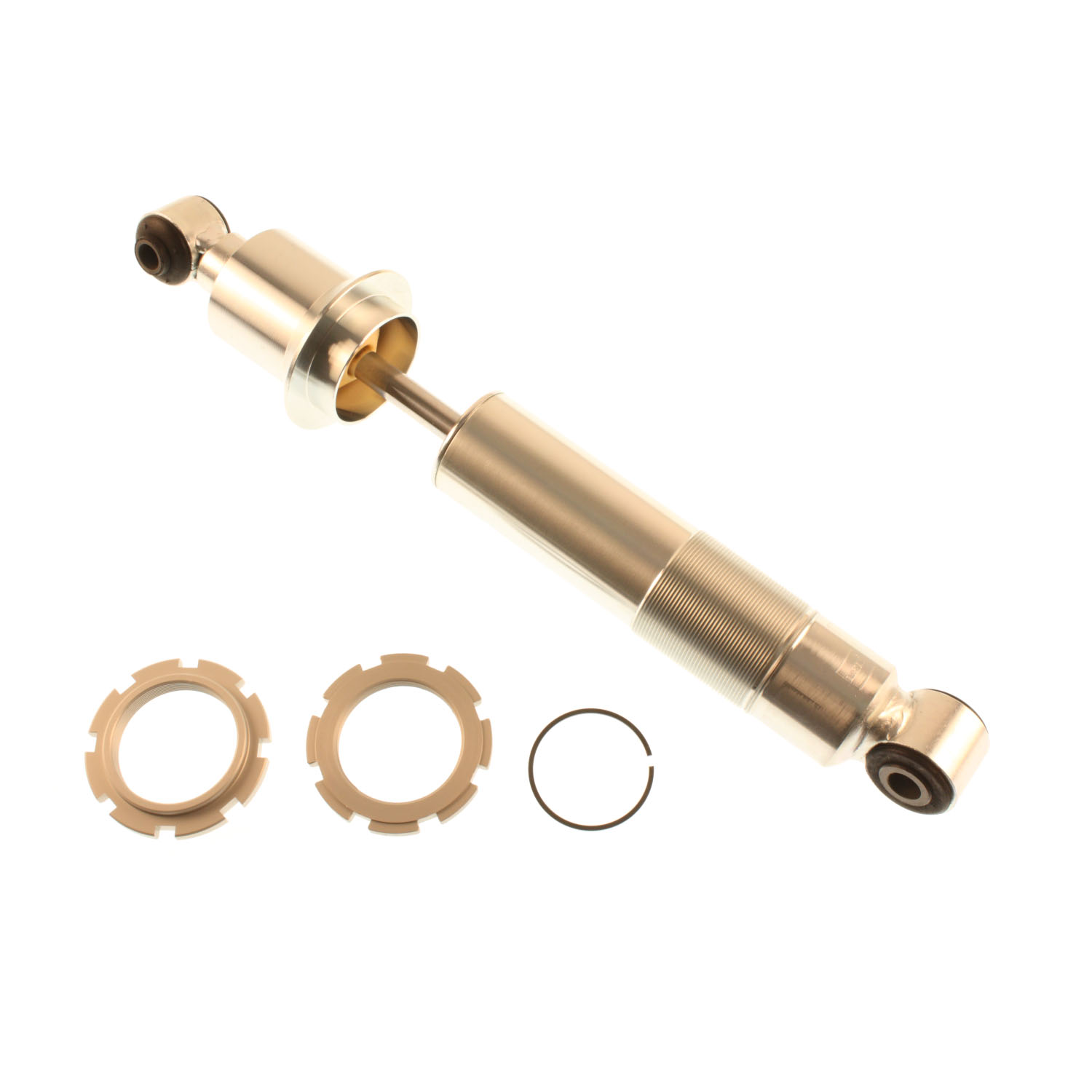

Bilstein Suspension Shock Absorber - 24-176422

Name: Bilstein Suspension Shock Absorber - 24-176422
SKU: 24-176422
Price: 0.01 USD
Availability: OutOfStock

Motorsports - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: 24-176422

Old price: $759.76

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Products specifications

Attribute name	Attribute value
Valving Identifier	N/A
Upper Mount Type	Eye 12mm
Boot Included	No
Position	Rear
Internal Design	Monotube
Collapsed Length (IN)	10.85
Lower Mount Type	Eye 14.1mm
Body Material	Steel
Body Design	Threaded Body (Coilover)
Collapsed Length (mm)	275.5
Extended Length (IN)	15.49

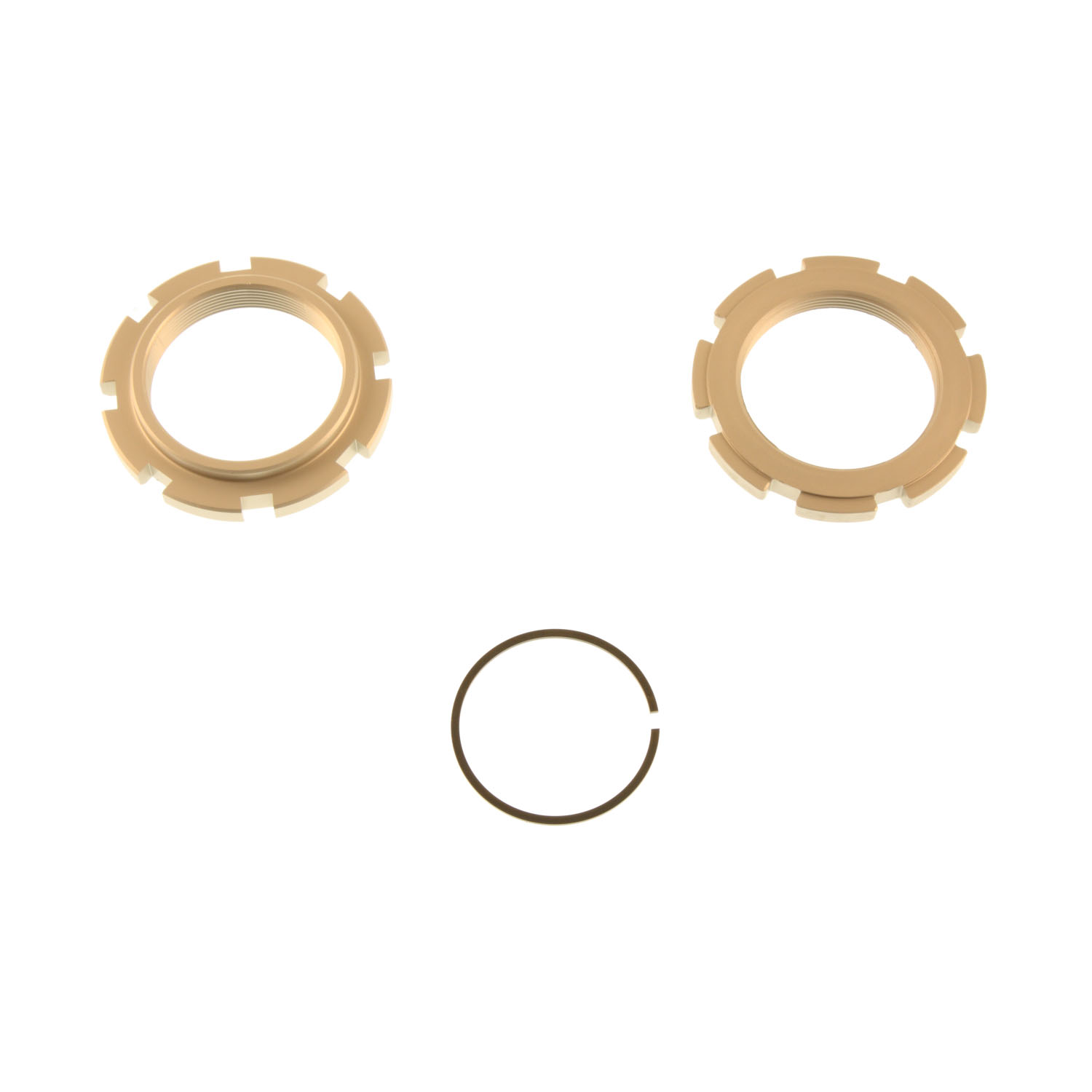

Spring Seat Included	Yes
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Piston Diameter	46mm
Stroke/Travel Length (mm)	117.9
Shaft Diameter	14mm
Stroke/Travel Length (IN)	4.64
Extended Length (mm)	393.5
Compression @0.52m/s	2180
Adjustable Damping	Non-Adjustable
Finish	Zinc Plated
Piston Type	Digressive
Series	Motorsports
Rebound @0.52m/s	5650
Country of Origin	DE
Condition	New
Quantity per Application	2
