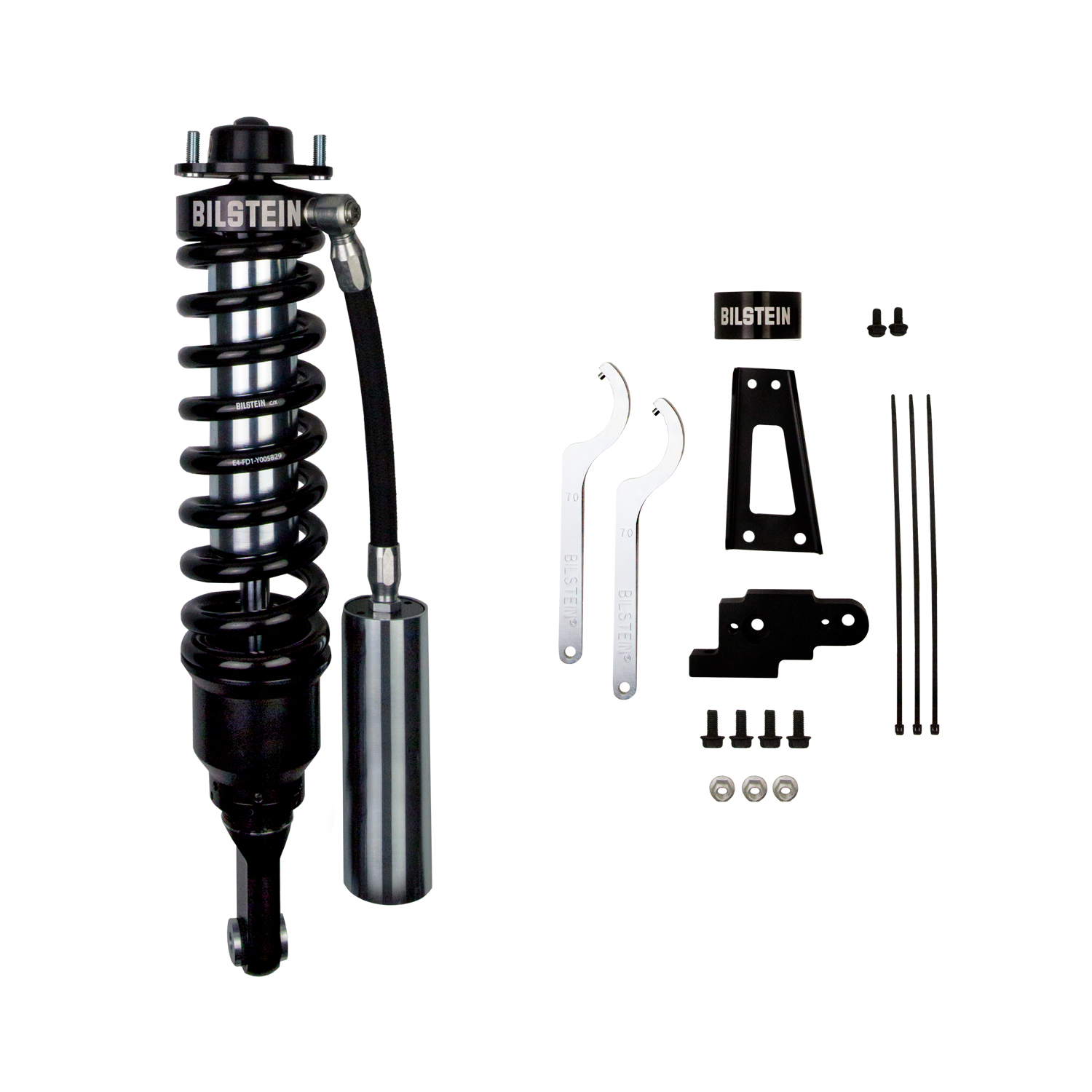

Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-269299

B8 8112 (ZoneControl CR) - Front Right Corner Module
Manufacturer: Bilstein
Manufacturer part number: 41-269299
Old price: $1,110.40
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Products specifications

Attribute name Attribute value
Extended Length (mm) 583.1
Upper Mount Type Special
Body Design Smooth Body (Coilover)
Adjustable Damping Non-Adjustable
Collapsed Length (mm) 456.9
Internal Design Monotube
Optional Heavy Load Springs 53-291394, 53-291387
Series B8 8112 (ZoneControl CR)
Collapsed Length (IN) 17.99
Reservoir Yes
Boot Included No
Lower Mount Type Eye 14.1mm
Body Material Steel
Finish Dampers: Zinc Plated/Springs: Black
Extended Length (IN) 22.96
Spring Seat Included Yes
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 60mm
Shaft Diameter (mm) 22.0
Country of Origin US
Condition New
