Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-298336

B8 8112 (ZoneControl CR) - Front Right Corner Module
Manufacturer: Bilstein
Manufacturer part number: 41-298336
Old price: $1,189.90
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

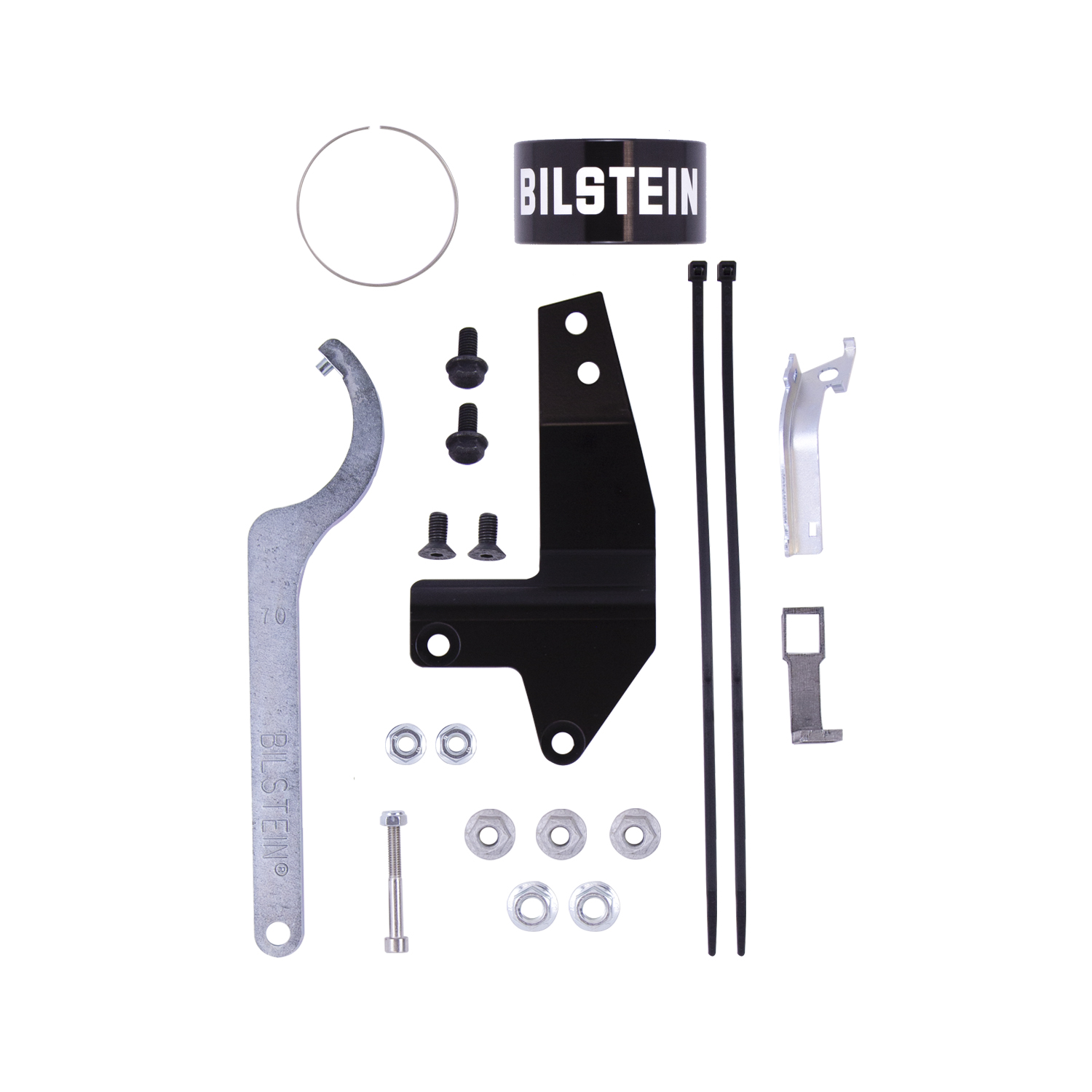

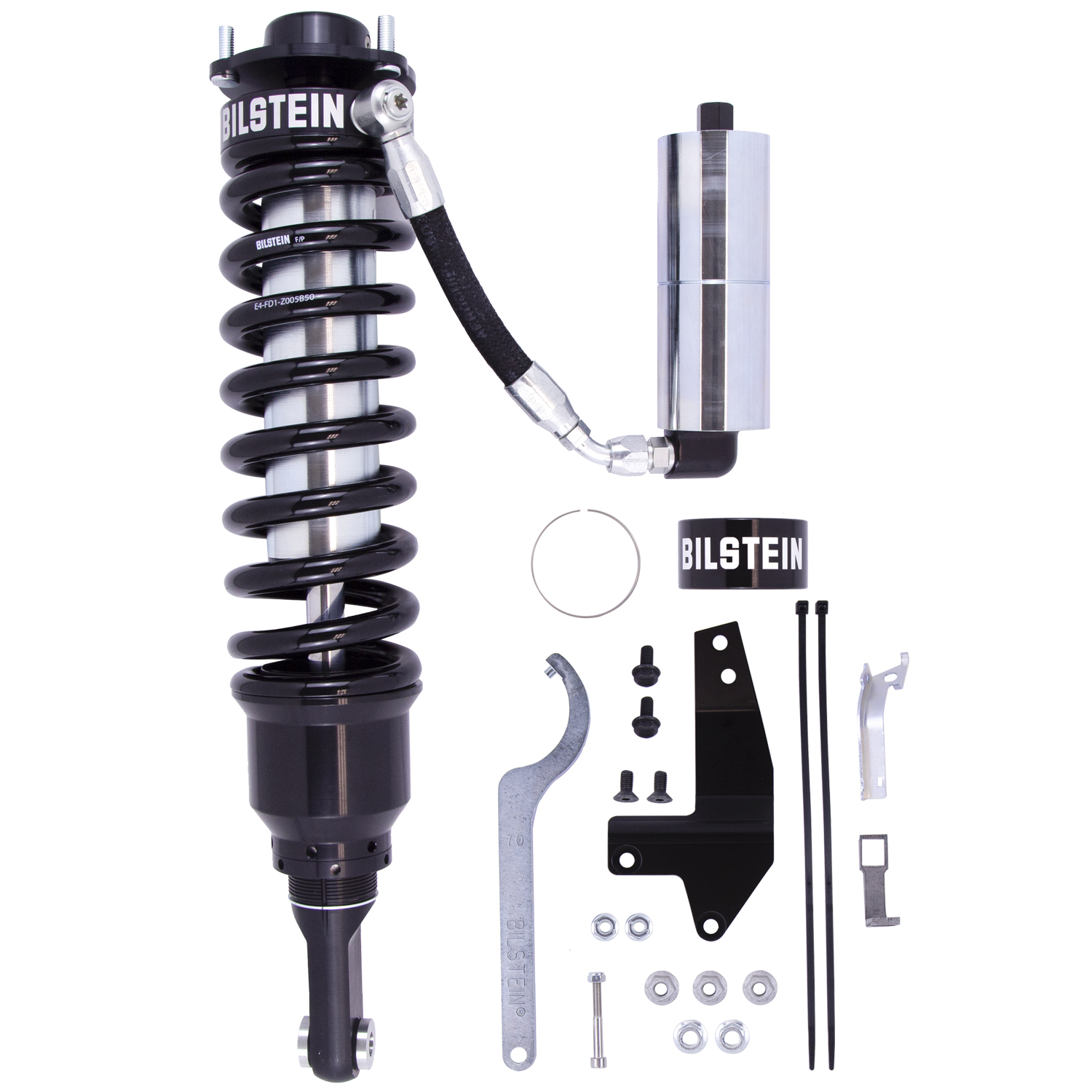

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Products specifications

Attribute name Attribute value
Upper Mount Type Special
Extended Length (mm) 579.1
Body Design Smooth Body (Coilover)
Adjustable Damping Non-Adjustable
Collapsed Length (IN) 17.99
Extended Length (IN) 22.80
Collapsed Length (mm) 456.9
Optional Heavy Load Springs 53-291387
Lower Mount Type Eye 14.1mm
Spring Seat Included Yes
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 60mm
Shaft Diameter (mm) 22.0
Front Main Spring Rate (lbs/in) 600 lbs
Body Material Steel
Internal Design Monotube
Reservoir Yes
Series B8 8112 (ZoneControl CR)
Boot Included No
Finish Dampers: Zinc Plated/Springs: Black
Country of Origin US
Condition New
