Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-314319

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
B8 8112 Black Hawk - Front Left Corner Module
Manufacturer: Bilstein
Manufacturer part number: 41-314319
Old price: $1,660.00
$1,523.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

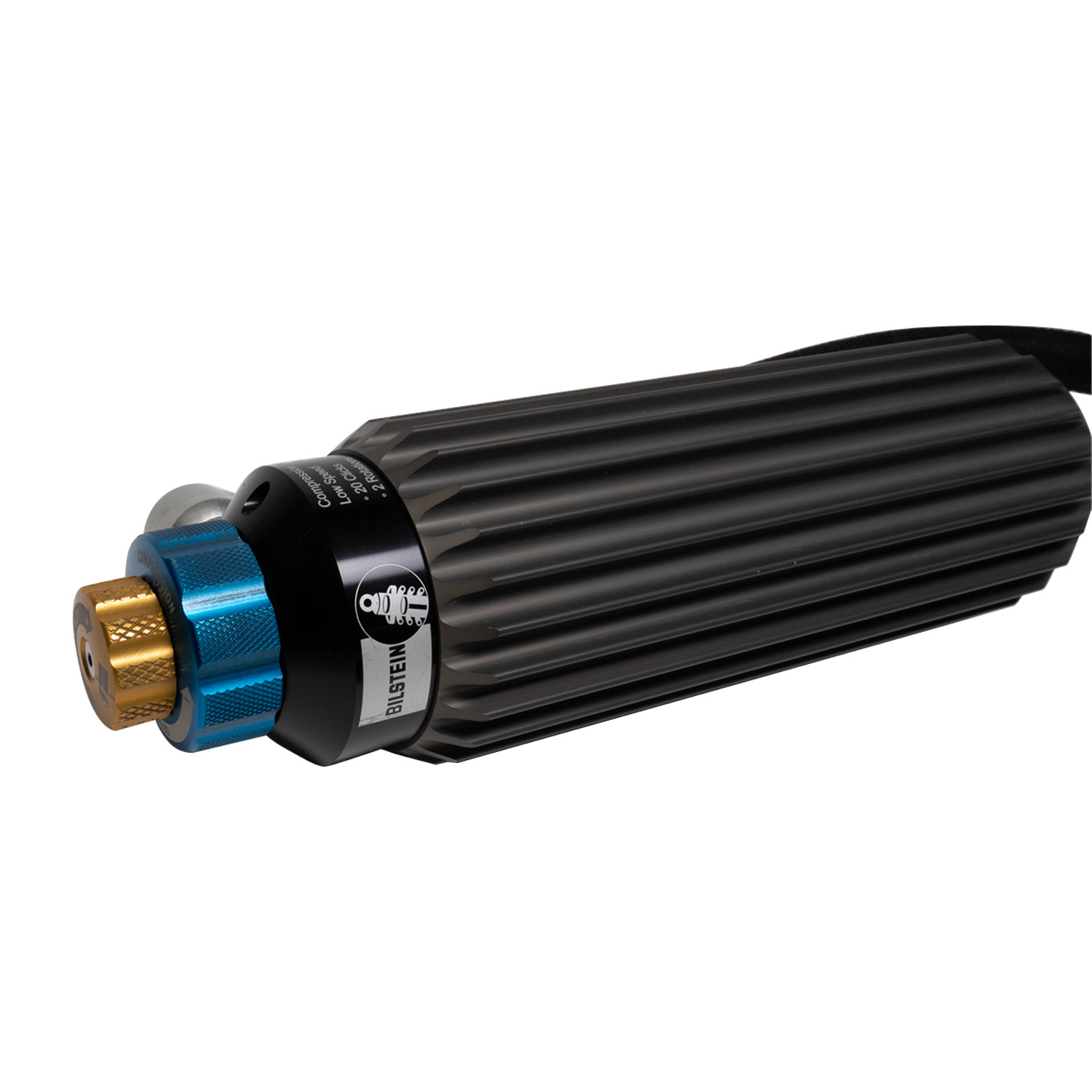

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound.  Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option.  The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 17.59
Extended Length (IN) 23.40
Collapsed Length (mm) 446.2
Extended Length (mm) 594.7
Body Material Aluminum
Adjustable Damping Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Lower Mount Type Crossbar
Finish Dampers: EVO Grey/Springs: Black
Segment Light Truck
Internal Design Monotube
Boot Included No
PartType Shocks / Struts
Body Design Smooth Body (Coilover)
Upper Mount Type Special
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Prop 65 Y/N Y
Spring Seat Included Yes
Reservoir Yes - Finned Aluminum
Aftermarket Upper Arms Required Yes
Piston Diameter 60mm
Shaft Diameter (mm) 22.0
Front Main Spring Rate (lbs/in) 400
Series B8 8112 Black Hawk
Country of Origin US
Condition New
🚗 Compatible with
5 vehicles are compatible with this product · 2021–2025
