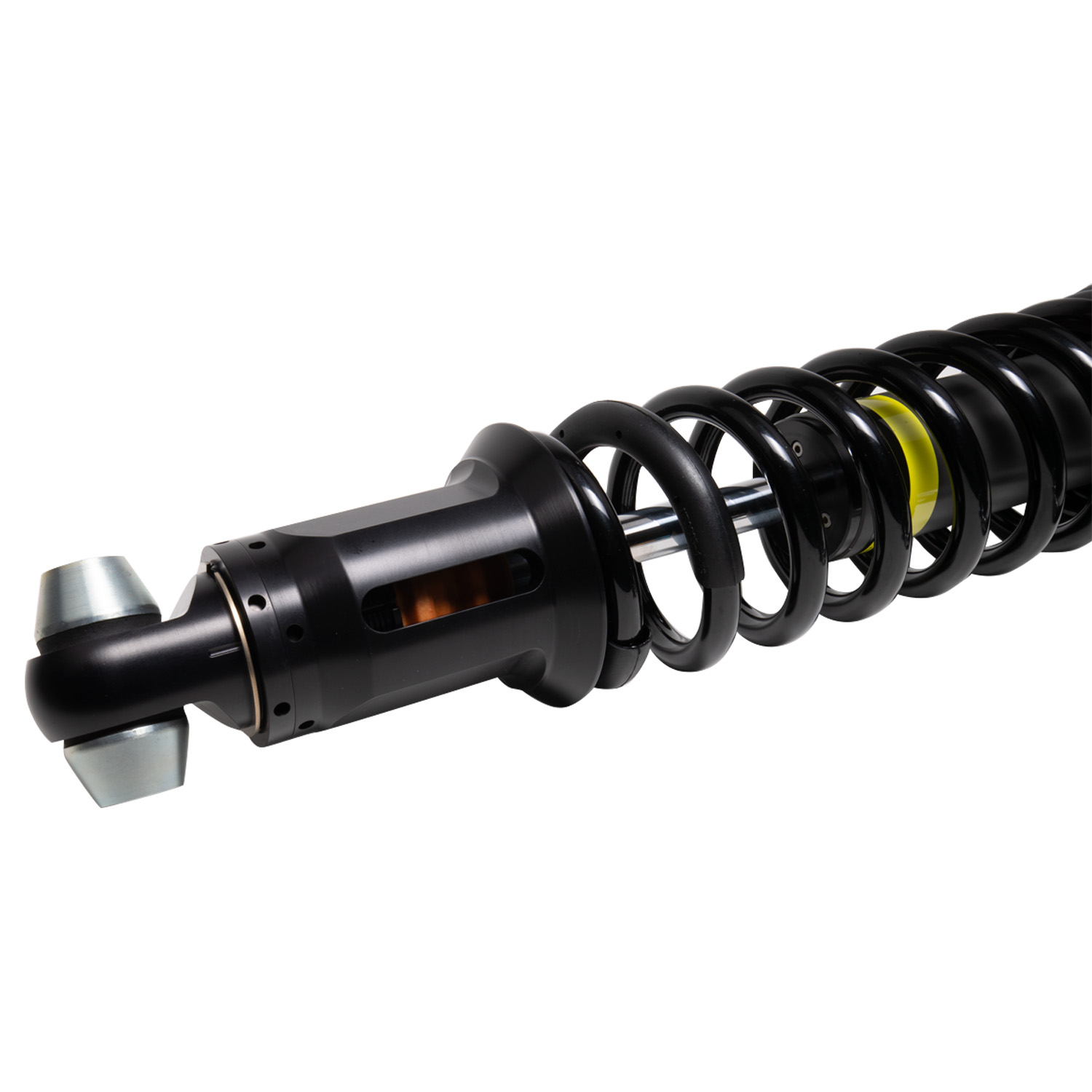

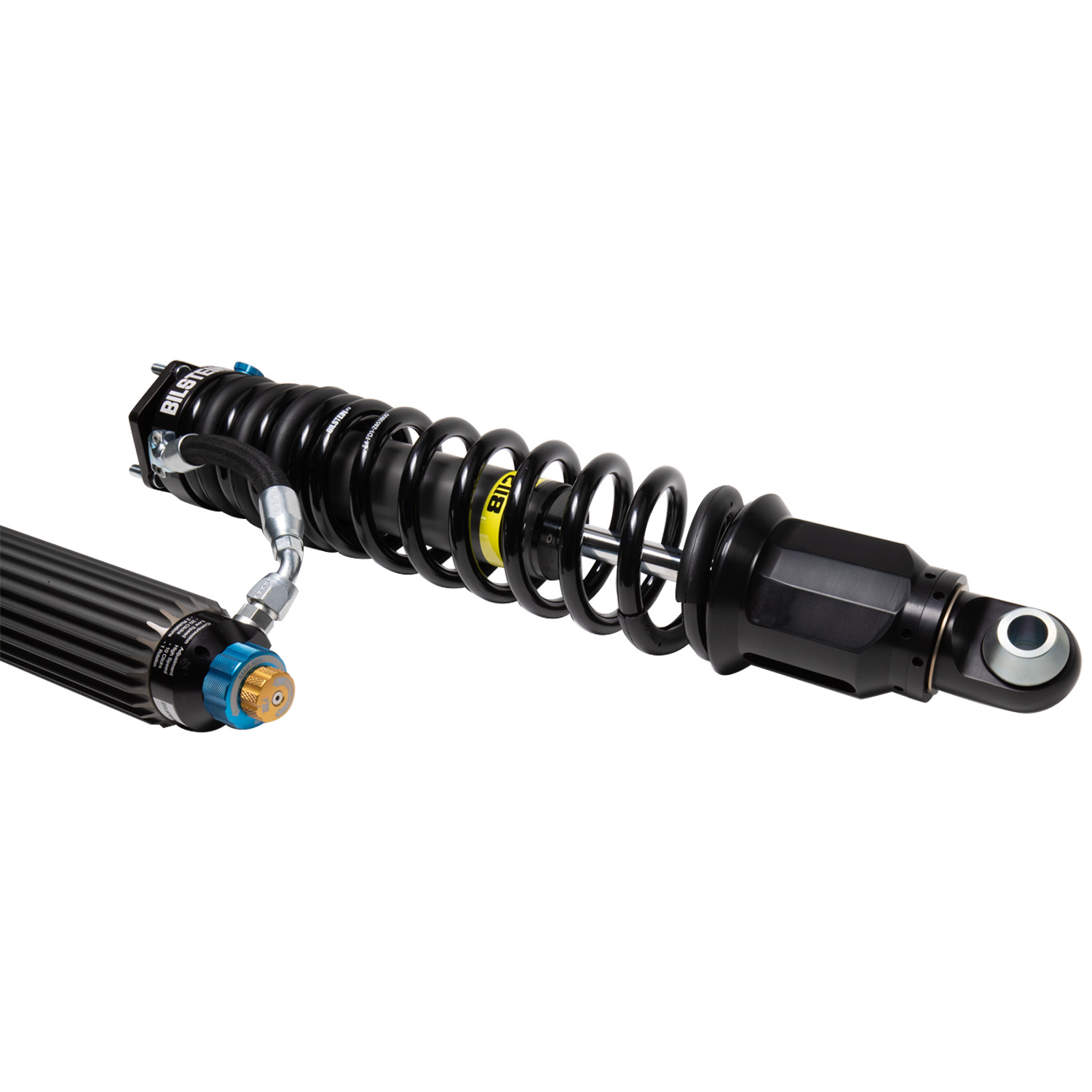

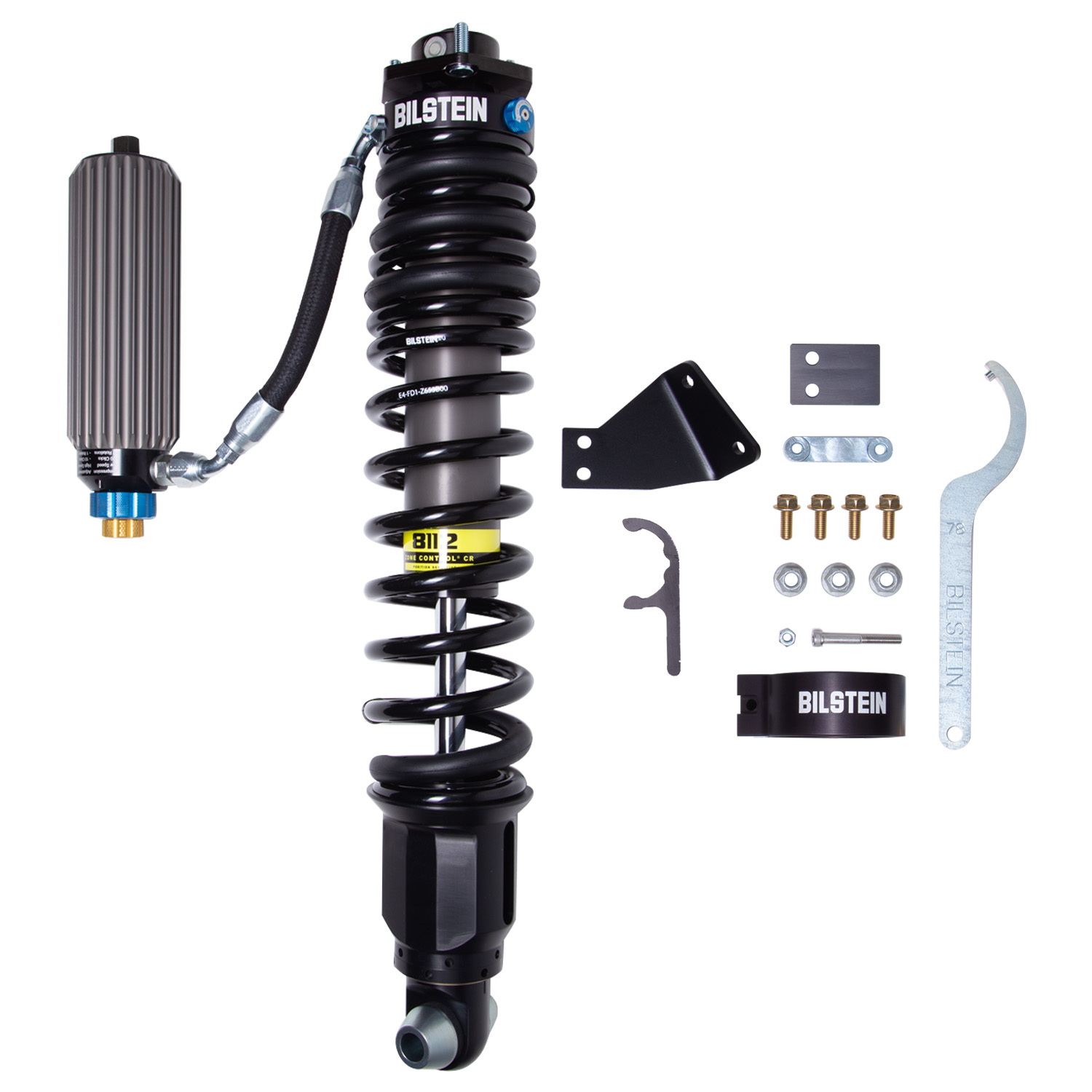

Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-314326

Name: Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-314326
SKU: 41-314326
Price: 1660.00 USD
Availability: InStock

Rear Corner Module

Manufacturer: Bilstein

$1,660.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

B8 8112 Black Hawk - Rear Left Corner Module

Products specifications

Attribute name	Attribute value
Extended Length (IN)	26.60
Collapsed Length (mm)	467.1
Extended Length (mm)	674.6
Body Material	Aluminum
Adjustable Damping	Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Finish	Dampers: EVO Grey/Springs: Black
Lower Mount Type	Eye 25.4mm with Heim Spacers
Segment	Light Truck
Internal Design	Monotube
Boot Included	No
PartType	Shocks / Struts
Body Design	Smooth Body (Coilover)
Upper Mount Type	Special
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Prop 65 Y/N	Y
Spring Seat Included	Yes
Reservoir	Yes - Finned Aluminum
Collapsed Length (IN)	18.40
Piston Diameter	60mm
Shaft Diameter (mm)	22.0
Rear Main Spring Rate (lbs/in)	288
Series	B8 8112 Black Hawk

🚗 Compatible with

5 vehicles are compatible with this product
