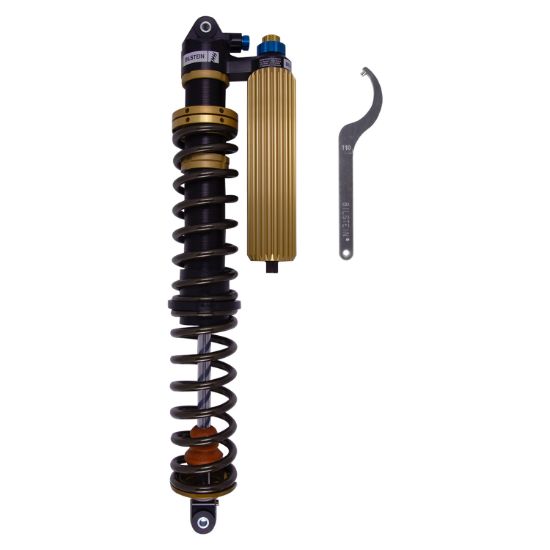

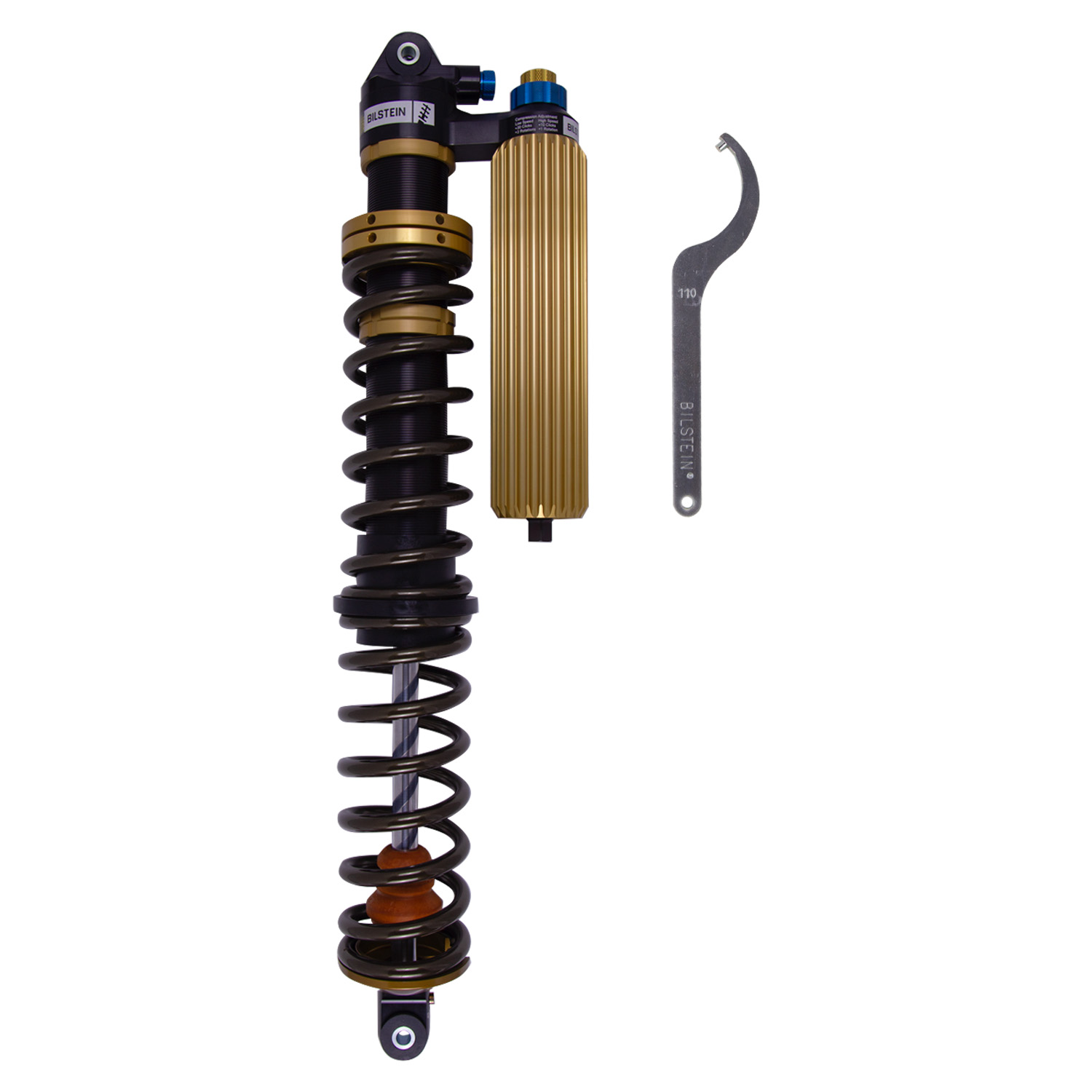

Picture of Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-338117

Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-338117

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Front Corner Module
Manufacturer: Bilstein
$1,370.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Black Hawk Powersports - Front Left Corner Module

Products specifications

Attribute name Attribute value

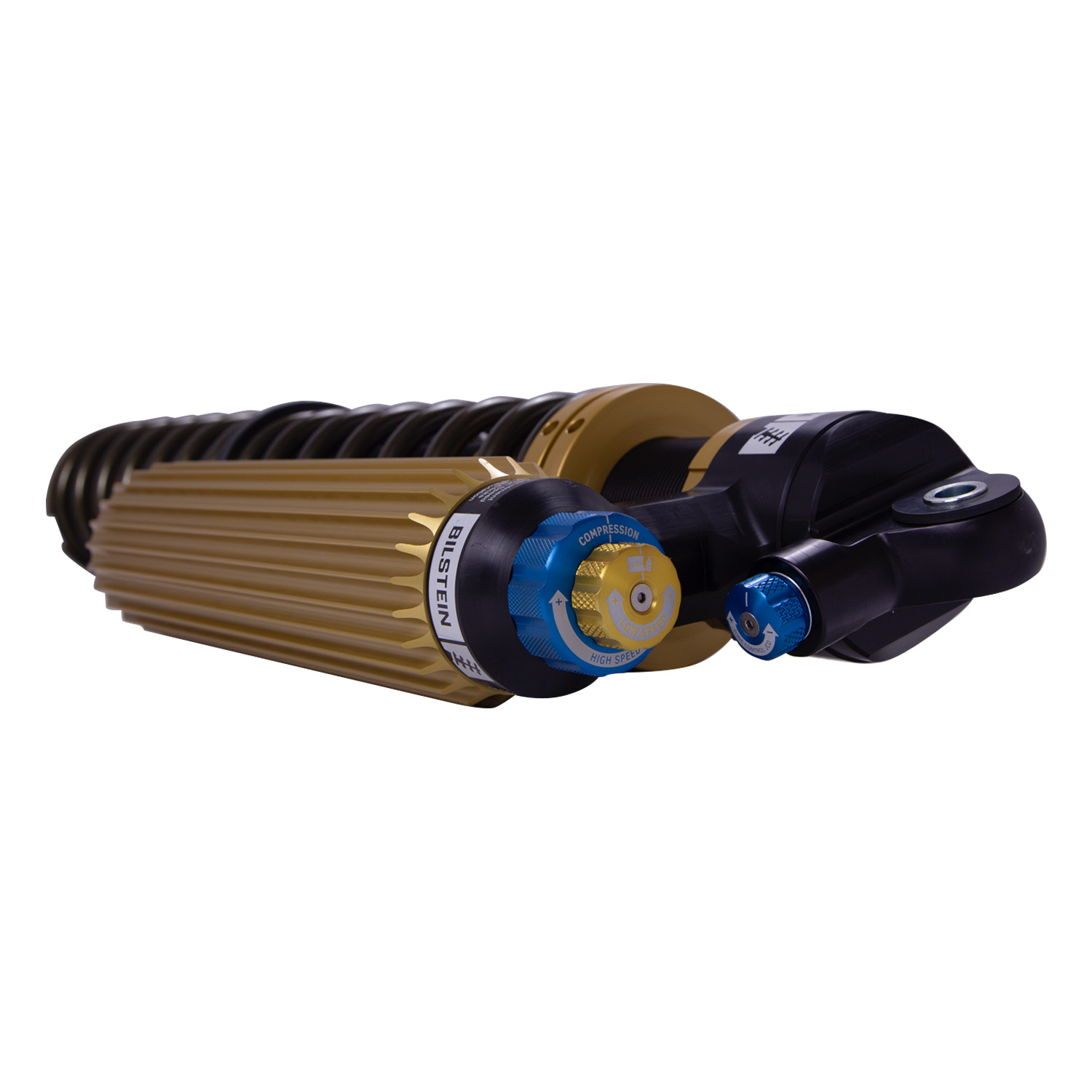

Adjustable Damping 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
Series Black Hawk Powersports
Upper Mount Type Eye 12mm (ID)
Body Design Threaded Body
Boot Included No
Compression @0.52m/s Adjustable
Extended Length (mm) 809.7
Internal Design Monotube
Position Front Left
Reservoir Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 20.40
Piston Diameter 60mm
Stroke/Travel Length (IN) 11.48
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 291.6
Body Material Aluminum alloy
Collapsed Length (mm) 518.2
Extended Length (IN) 31.88
Finish Type III Hard Anodized
Lower Mount Type Eye 12mm (ID)
Model Maverick X3
Rebound @0.52m/s Adjustable
🚗 Compatible with
28 vehicles are compatible with this product
Year Make Model
2018 Can-Am Maverick X3 Max Turbo
2018 Can-Am Maverick X3 Max Turbo R
2018 Can-Am Maverick X3 Max X rs Turbo R
2017 Can-Am Maverick X3 Max X rs Turbo R
2017 Can-Am Maverick X3 Max Turbo R
2019 Can-Am Maverick X3 Max Turbo
2019 Can-Am Maverick X3 Max Turbo R
2019 Can-Am Maverick X3 Max X rs Turbo R
2020 Can-Am Maverick X3 Max RS Turbo R
2020 Can-Am Maverick X3 Max Turbo
2020 Can-Am Maverick X3 Max X mr Turbo RR
2020 Can-Am Maverick X3 Max X rs Turbo RR
2021 Can-Am Maverick X3 Max RS Turbo R
2021 Can-Am Maverick X3 Max X mr Turbo RR
2021 Can-Am Maverick X3 Max X rs Turbo RR
2021 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2022 Can-Am Maverick X3 Max X mr Turbo RR
2022 Can-Am Maverick X3 Max X rs Turbo RR
2022 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2022 Can-Am Maverick X3 Max RS Turbo RR
2023 Can-Am Maverick X3 Max RS Turbo RR
2023 Can-Am Maverick X3 Max X mr Turbo RR
2023 Can-Am Maverick X3 Max X rs Turbo RR
2023 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2024 Can-Am Maverick X3 Max RS Turbo RR
2024 Can-Am Maverick X3 Max X mr Turbo RR
2024 Can-Am Maverick X3 Max X rs Turbo RR
2024 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
