Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-338124

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Black Hawk Powersports - Front Right Corner Module
Manufacturer: Bilstein
Manufacturer part number: 41-338124
$1,370.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

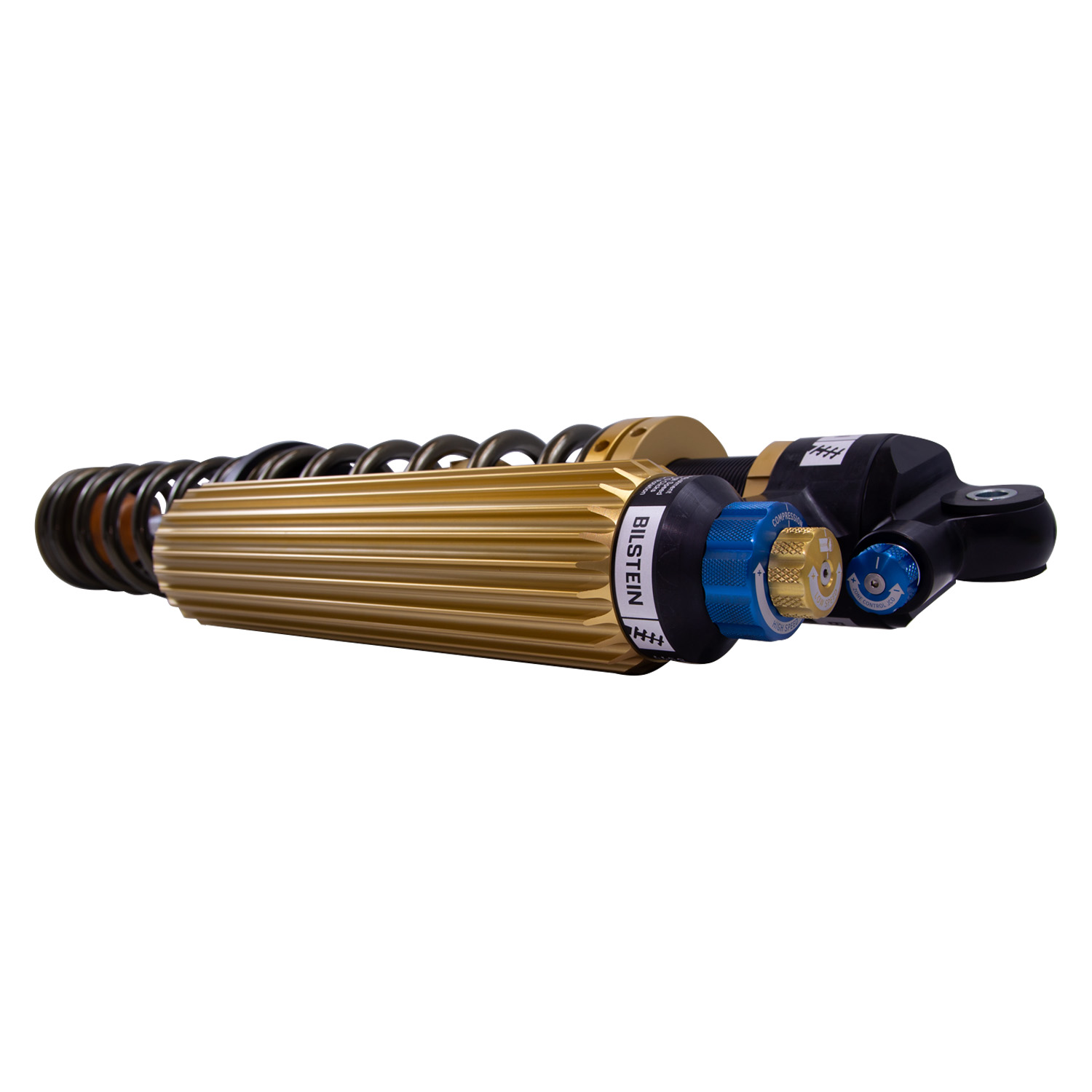

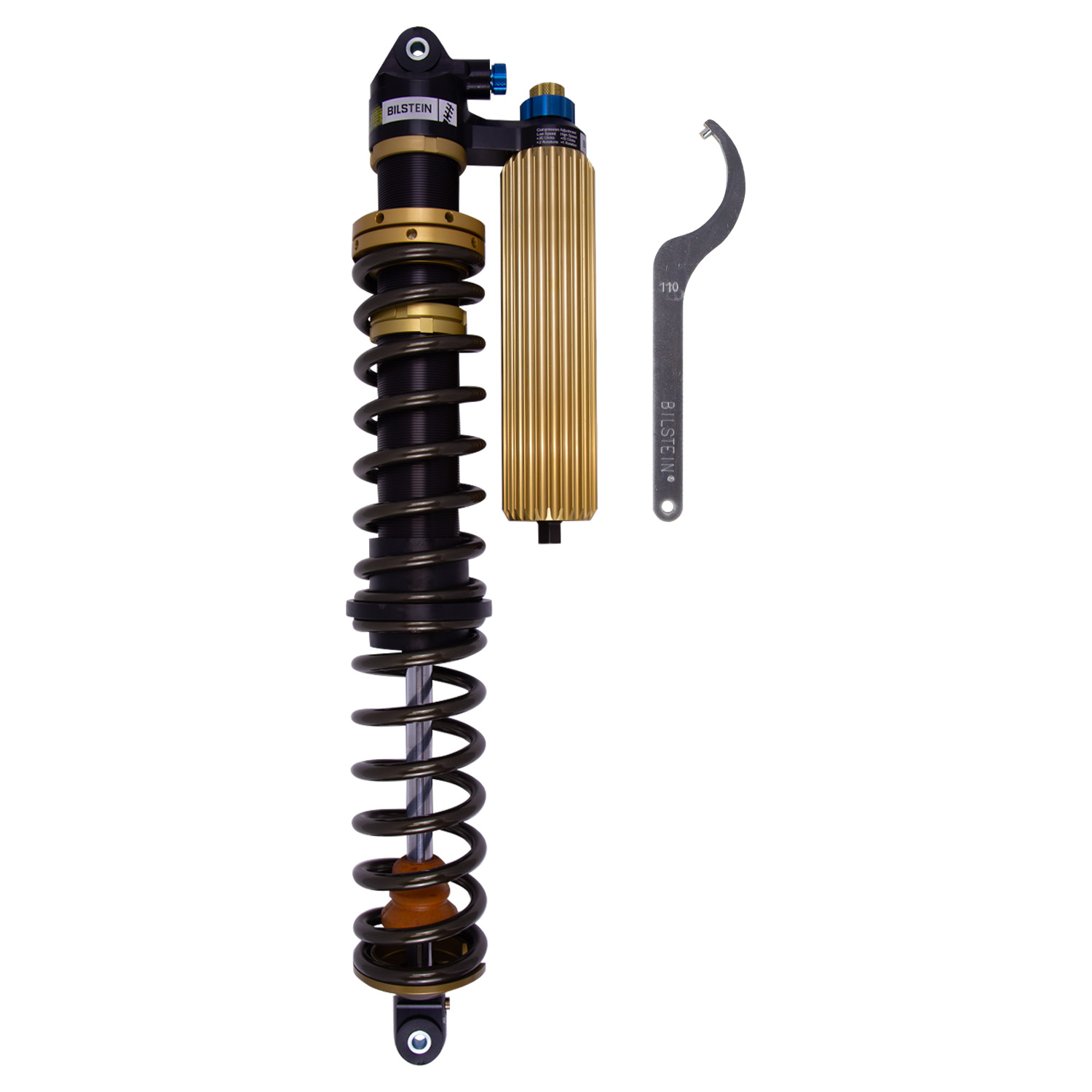

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

Products specifications

Attribute name Attribute value
Body Design Threaded Body
Boot Included No
Compression @0.52m/s Adjustable
Internal Design Monotube
Reservoir Yes
Adjustable Damping 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
Body Material Aluminum alloy
Extended Length (mm) 809.7
Series Black Hawk Powersports
Upper Mount Type Eye 12mm (ID)
Collapsed Length (mm) 518.2
Extended Length (IN) 31.88
Finish Type III Hard Anodized
Lower Mount Type Eye 12mm (ID)
Model Maverick X3
Position Front Right
Rebound @0.52m/s Adjustable
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN) 20.40
Piston Diameter 60mm
Stroke/Travel Length (IN) 11.48
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 291.6
Country of Origin US
Condition New
🚗 Compatible with
28 vehicles are compatible with this product · 2017–2024
