Picture of Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-338131

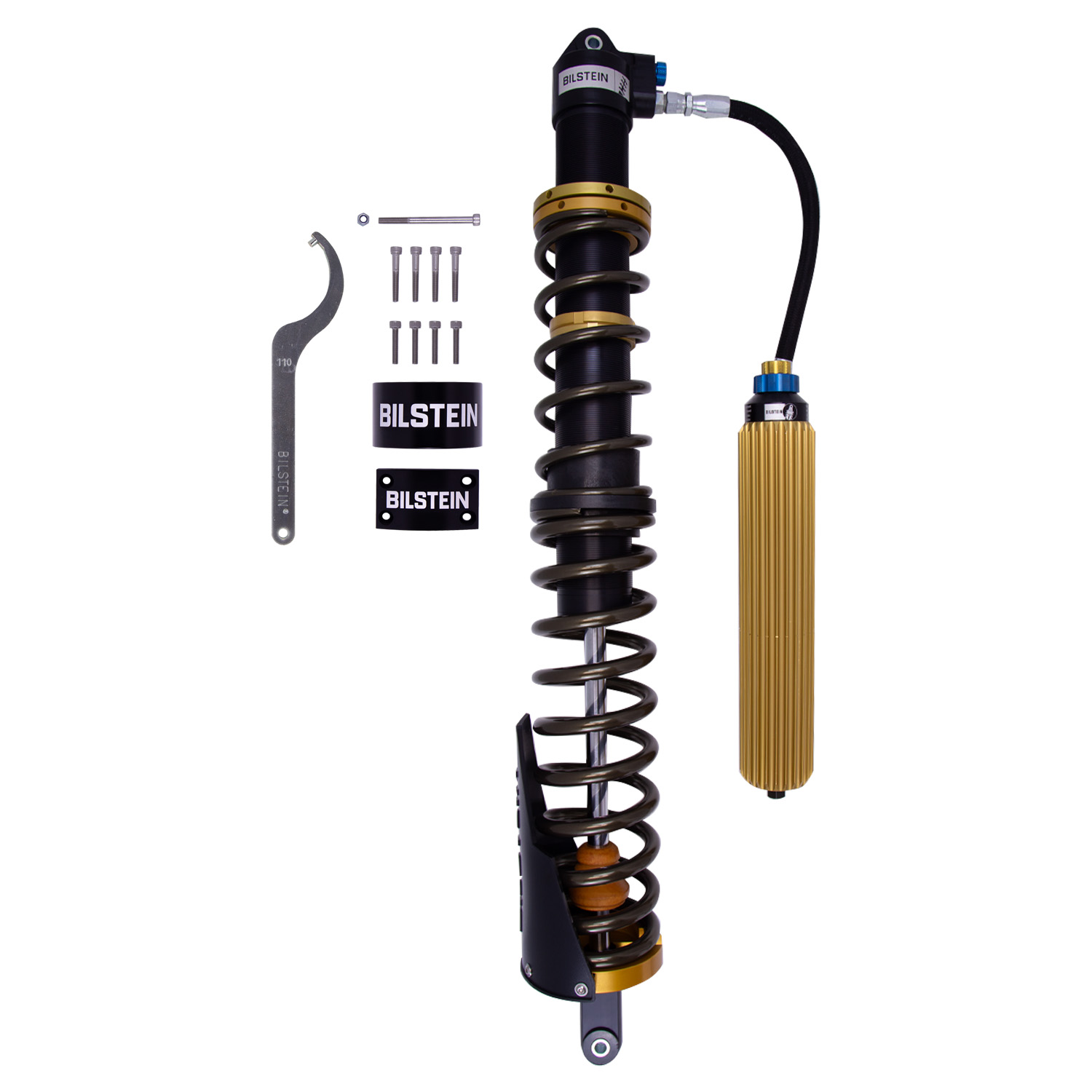

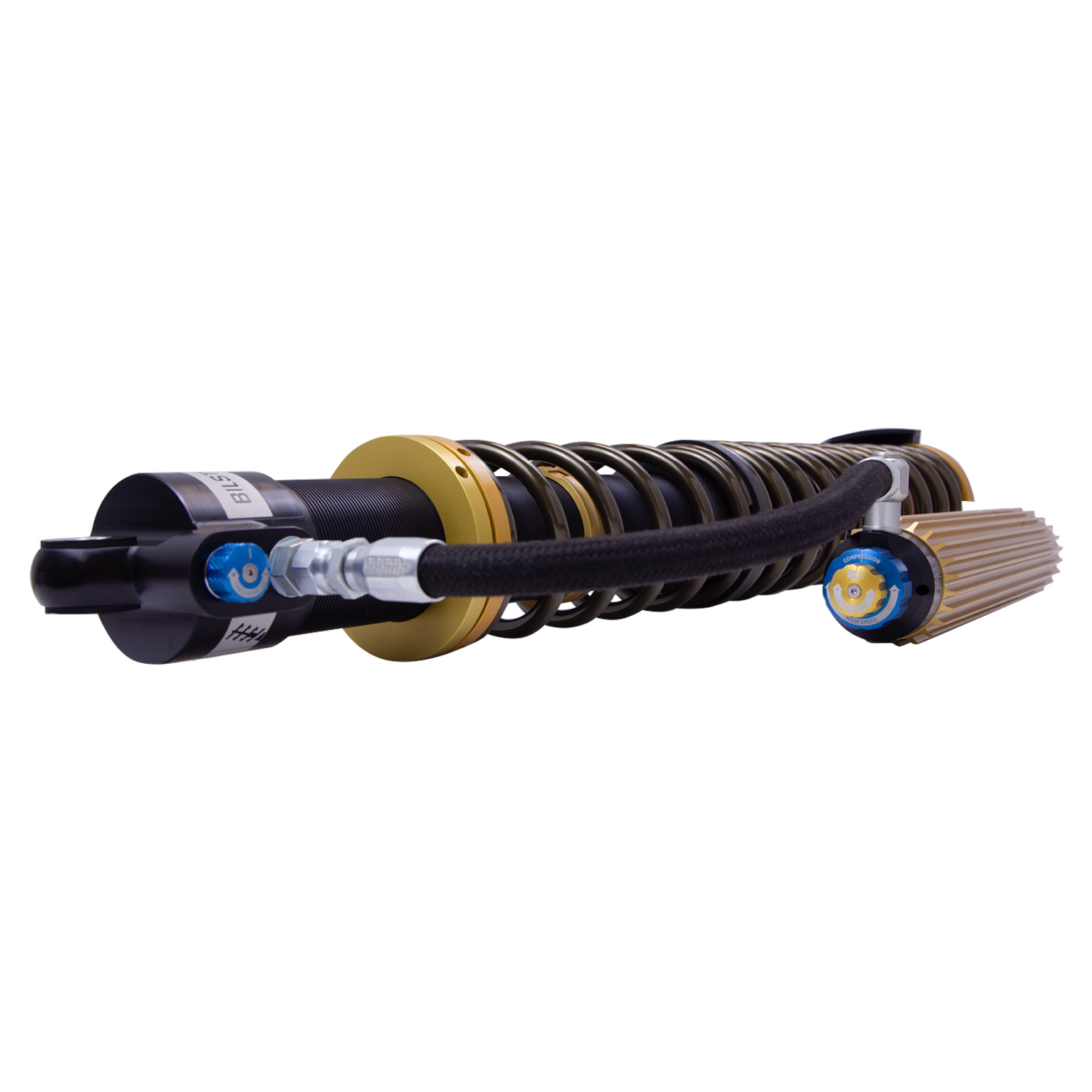

Bilstein Suspension Shock Absorber and Coil Spring Assembly - 41-338131

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Rear Corner Module
Manufacturer: Bilstein
$1,625.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Black Hawk Powersports - Rear Left Corner Module

Products specifications

Attribute name Attribute value
Upper Mount Type Eye 12mm (ID)
Adjustable Damping 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)

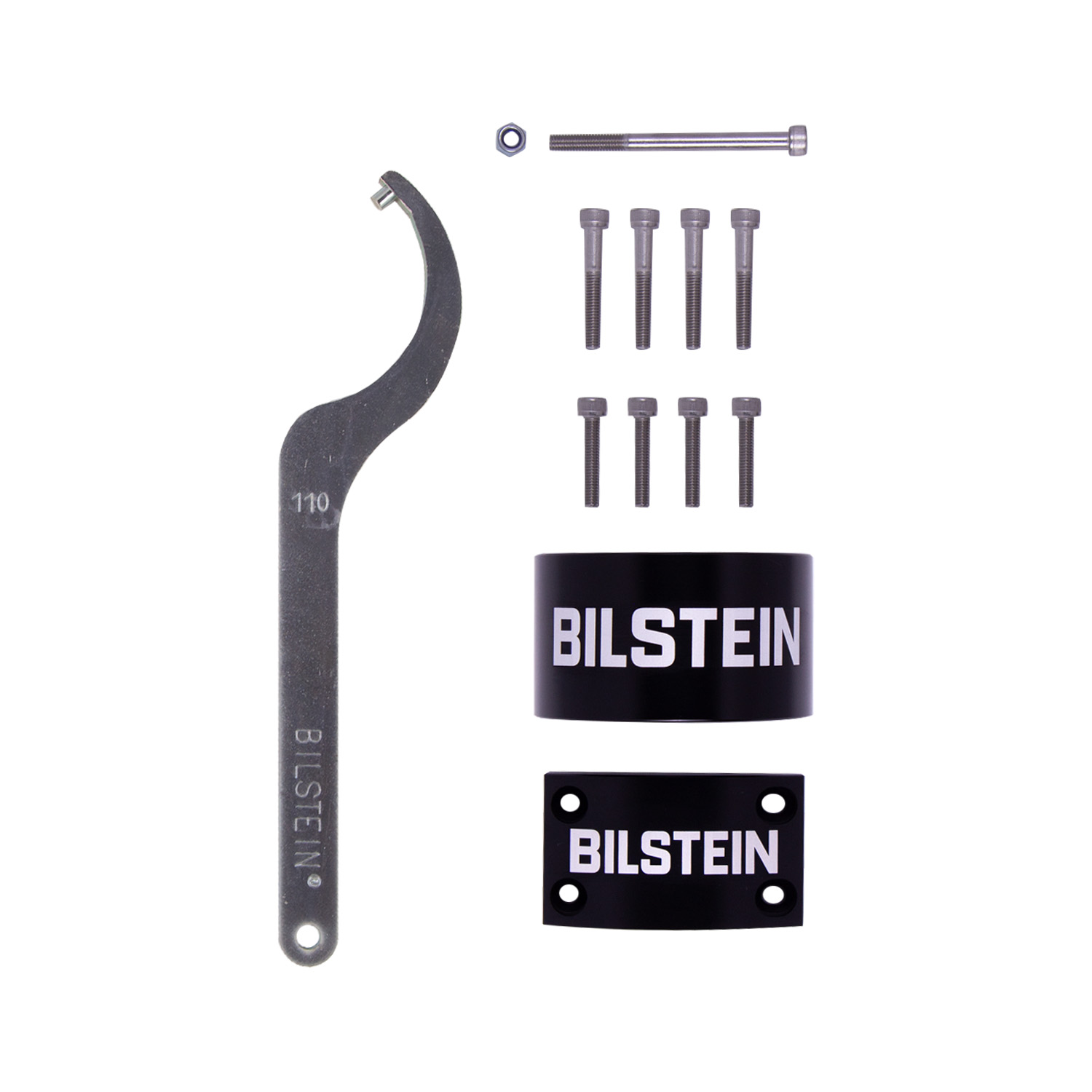

Billet Reservoir Clamp Included Yes
Body Design Threaded Body
Body Material Aluminum alloy
Boot Included No
Collapsed Length (IN) 27.98
Collapsed Length (mm) 710.8
Compression @0.52m/s Adjustable
Extended Length (IN) 41.61
Extended Length (mm) 1056.8
Finish Type III Hard Anodized
Internal Design Monotube
Lower Mount Type Eye 12mm (ID)
Model Maverick X3
Position Rear Left
Rebound @0.52m/s Adjustable

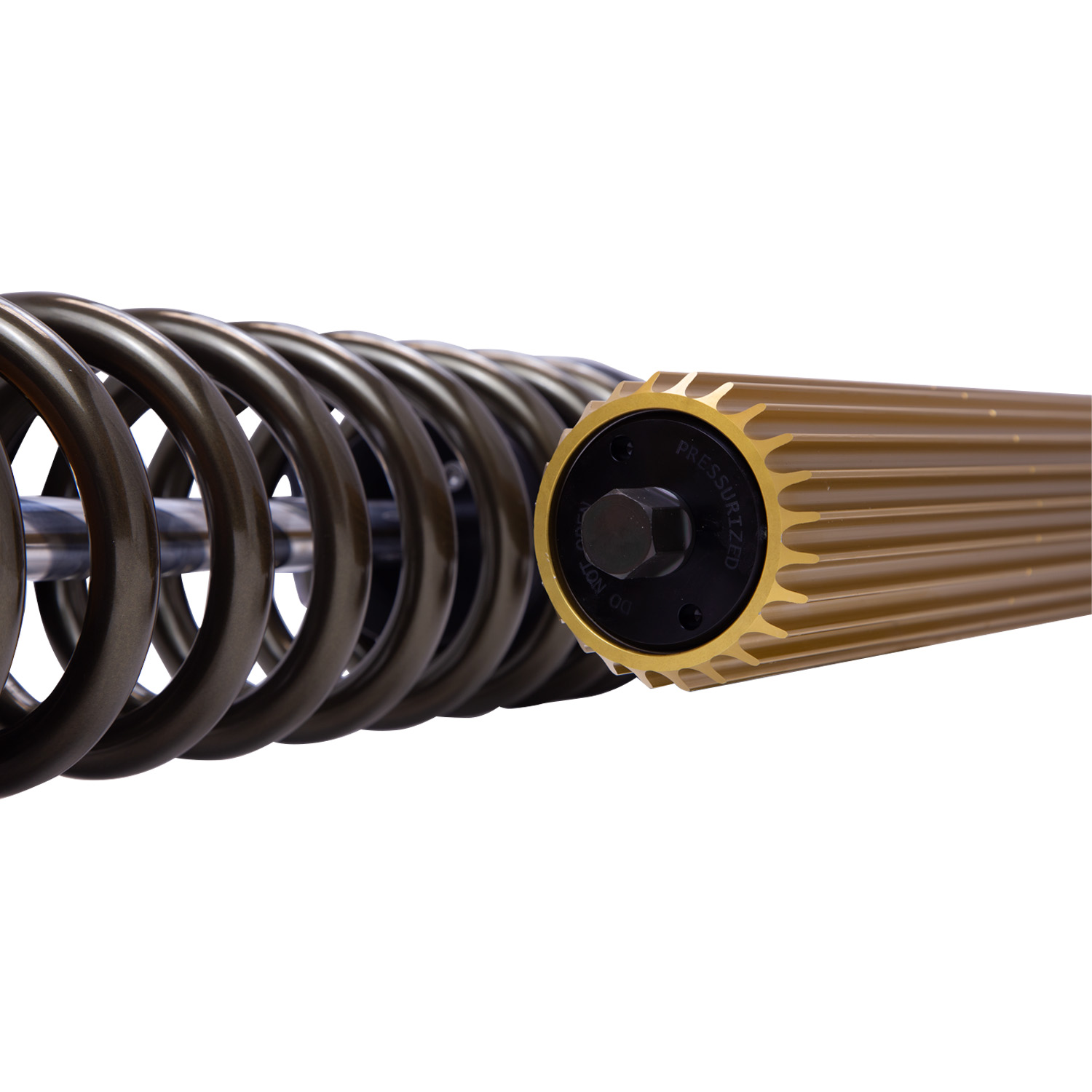

Reservoir Yes
Series Black Hawk Powersports
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 70mm
Stroke/Travel Length (IN) 13.63
Shaft Diameter (mm) 22.0
Stroke/Travel Length (mm) 346.2
🚗 Compatible with
28 vehicles are compatible with this product
Year Make Model
2018 Can-Am Maverick X3 Max Turbo
2018 Can-Am Maverick X3 Max Turbo R
2018 Can-Am Maverick X3 Max X rs Turbo R
2017 Can-Am Maverick X3 Max X rs Turbo R
2017 Can-Am Maverick X3 Max Turbo R
2019 Can-Am Maverick X3 Max Turbo
2019 Can-Am Maverick X3 Max Turbo R
2019 Can-Am Maverick X3 Max X rs Turbo R
2020 Can-Am Maverick X3 Max RS Turbo R
2020 Can-Am Maverick X3 Max Turbo
2020 Can-Am Maverick X3 Max X mr Turbo RR
2020 Can-Am Maverick X3 Max X rs Turbo RR
2021 Can-Am Maverick X3 Max RS Turbo R
2021 Can-Am Maverick X3 Max X mr Turbo RR
2021 Can-Am Maverick X3 Max X rs Turbo RR
2021 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2022 Can-Am Maverick X3 Max X mr Turbo RR
2022 Can-Am Maverick X3 Max X rs Turbo RR
2022 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2022 Can-Am Maverick X3 Max RS Turbo RR
2023 Can-Am Maverick X3 Max RS Turbo RR
2023 Can-Am Maverick X3 Max X mr Turbo RR
2023 Can-Am Maverick X3 Max X rs Turbo RR
2023 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2024 Can-Am Maverick X3 Max RS Turbo RR
2024 Can-Am Maverick X3 Max X mr Turbo RR
2024 Can-Am Maverick X3 Max X rs Turbo RR
2024 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
