Bilstein Suspension Strut Assembly - 33-616957

Name: Bilstein Suspension Strut Assembly - 33-616957
SKU: 33-616957
Price: 0.01 USD
Availability: OutOfStock

Motorsports (Reservoir) - Suspension Strut Assembly

Manufacturer: Bilstein

Manufacturer part number: 33-616957

Old price: $1,557.27

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

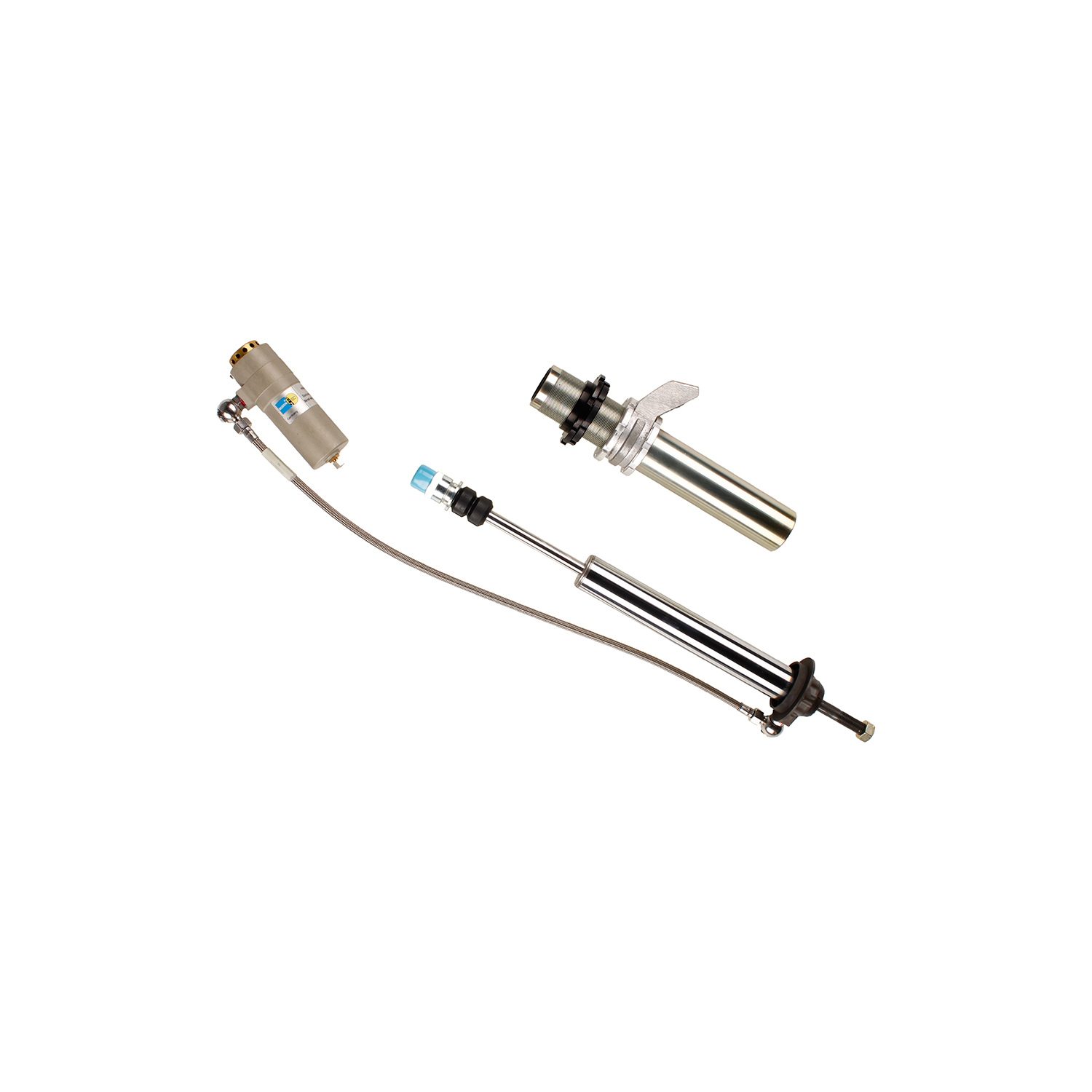

Bilstein Motorsports (Reservoir) dampers are designed as a direct fit solution for a variety of motorsports applications. These dampers feature an external reservoir with separate rebound and compression adjustments to optimize tuning and setup capabilities. Motorsport (Reservoir) dampers are ideal for racers requiring an application specific option with on-vehicle tuning characteristics.

Products specifications

Attribute name	Attribute value
Valving Identifier	N/A
Body Design	Threaded Body (Coilover)
Series	Motorsports (Reservoir)
Extended Length (IN)	18.72
Adjustable Damping	Double Adjustable – Compression and Rebound
Body Material	Steel
Piston Type	Linear
Extended Length (mm)	475.5
Lower Mount Type	Special
Position	Front
Boot Included	No
Finish	Zinc Plated
Upper Mount Type	Stem
Internal Design	Monotube
Collapsed Length (mm)	350.5
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Collapsed Length (IN)	13.80
Piston Diameter	36mm
Stroke/Travel Length (mm)	125.0
Shaft Diameter	14mm
Stroke/Travel Length (IN)	4.92
Country of Origin	DE
Condition	New
Quantity per Application	2
