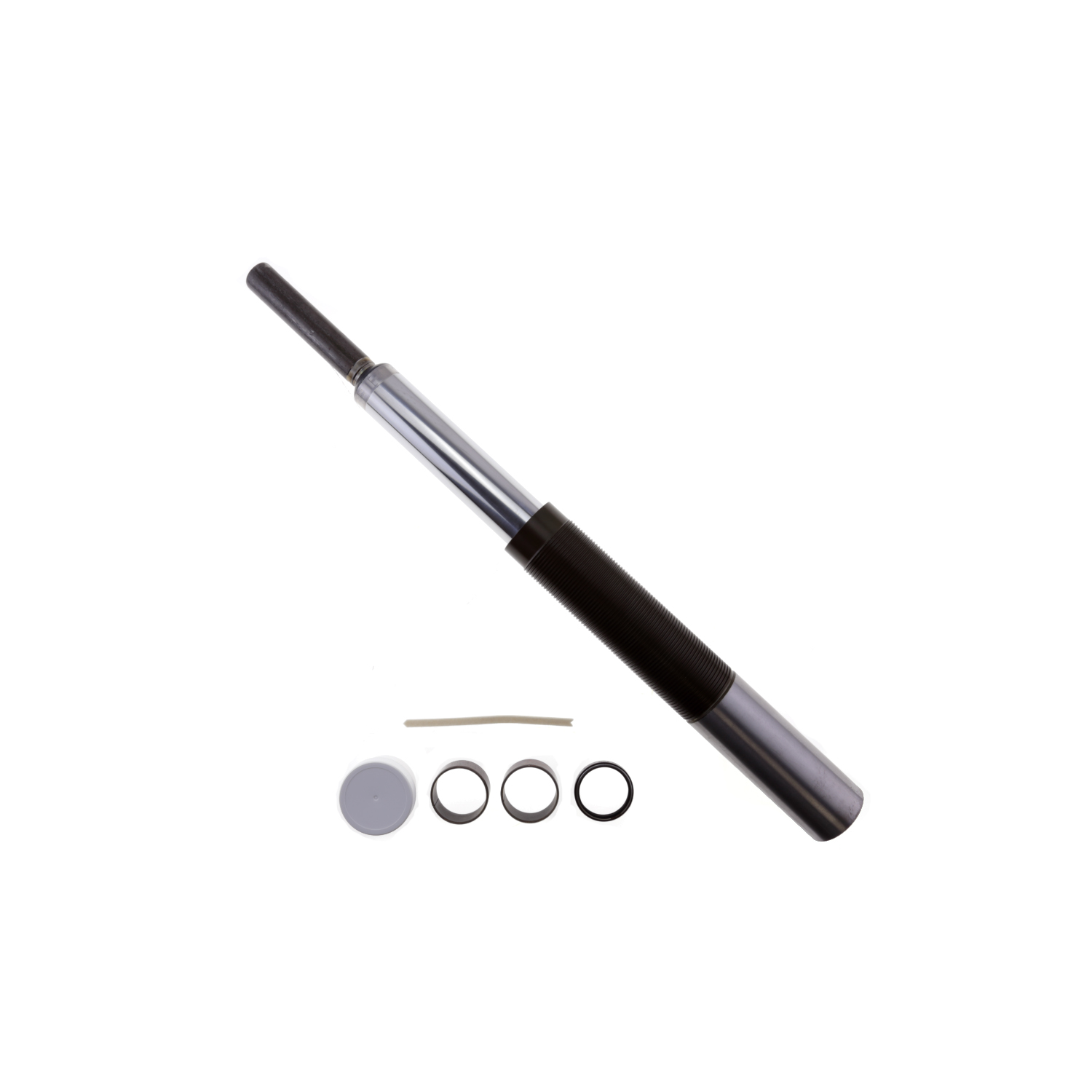

Bilstein Suspension Strut Assembly - 35-223122

Name: Bilstein Suspension Strut Assembly - 35-223122
SKU: 35-223122
Price: 0.01 USD
Availability: OutOfStock

Universal Motorsports Strut - Suspension Strut Assembly

Manufacturer: Bilstein

Manufacturer part number: 35-223122

Old price: $499.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.

Products specifications

Attribute name	Attribute value
Rebound @0.52m/s	3785
Internal Design	Monotube
Finish	Olive-Drab Zinc
Lower Mount Type	Housing
Valving Identifier	380/180
Body Material	Steel
Body Design	Threaded Body (Coilover)
Compression @0.52m/s	1700
Collapsed Length (IN)	12.31
Upper Mount Type	Stem
Adjustable Damping	Non-Adjustable
Extended Length (IN)	18.87
Boot Included	No
Series	Universal Motorsports Strut
Piston Type	Digressive
Extended Length (mm)	479.4
Collapsed Length (mm)	312.6
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Piston Diameter	36mm
Shaft Diameter	14mm
Stroke/Travel Length (mm)	166.6
Stroke/Travel Length (IN)	6.56
Country of Origin	US
Condition	New
